NSN 2940-00-678-5357 53568, 55416, 7513212
Product Details | FLUID FILTER ELEMENT
2940-00-678-5357 A replaceable device designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous material (metallic or non-metallic), stacked disks, wound wire, or the like, constructed so the fluid can flow through the device while the solid particles are retained. It may be designed to fit into a FILTER, FLUID (or similar cavity), or it may have an integral outer casing and mounting facilities and be designed to connect directly to an engine, compressor, or the like. The degree of removal of particles must be nominally rated at less than 50 microns or absolutely rated at less than 75 microns. Excludes FILTER ELEMENT, AIR CONDITIONING. See also STRAINER ELEMENT, SEDIMENT.20916500058Aircraft Hydraulic, Vacuum, and De-icing System Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters5999000065300053Hospital Furniture, Equipment, Utensils, and Supplies66300029Chemical Analysis Instruments
Part Alternates: 53568, 55416, 7513212, 2940-00-678-5357, 00-678-5357, 2940006785357, 006785357
Engine Accessories | Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1961 | 00-678-5357 | 32624 ( FILTER ELEMENT, FLUID ) |

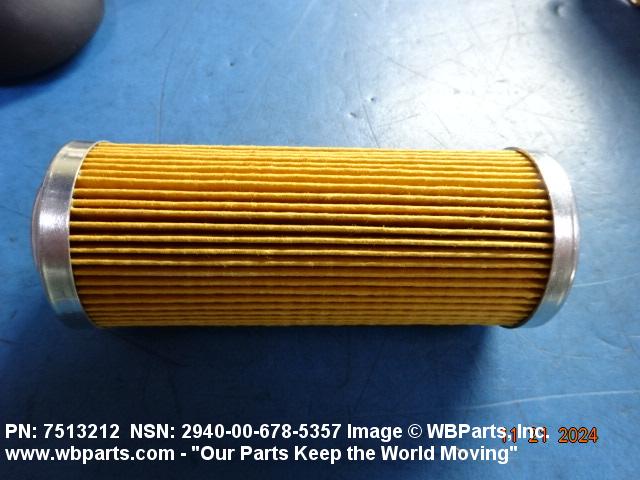

Drawings & Photos | NSN 2940-00-678-5357
Demand History | NSN 2940-00-678-5357
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2940-00-678-5357 | 2024-11-306 | 12 | Sweden |
| 2940-00-678-5357 | 2024-10-305 | 12 | Sweden |
| 7513212 | 2023-05-136 | 305 | DIBBS |
| 7513212 | 2023-05-124 | 305 | DIBBS |
| 7513212 | 2022-05-123 | 45 | DIBBS |
| 7513212 | 2022-04-108 | 45 | DIBBS |
| 7513212 | 2022-03-83 | 200 | DIBBS |
| 7513212 | 2021-10-285 | 189 | DIBBS |
| 7513212 | 2021-09-256 | 317 | DIBBS |
| 7513212 | 2020-10-304 | 309 | DIBBS |
| 53568 | 2019-09-255 | 243 | DIBBS |
| 7513212 | 2019-09-255 | 243 | DIBBS |
| 2940-00-678-5357 | 2018-12-361 | 220 | DIBBS |
| 2940-00-678-5357 | 2018-12-347 | 214 | DIBBS |
| 2940-00-678-5357 | 2018-03-88 | 257 | DIBBS |
| 2940-00-678-5357 | 2016-12-340 | 289 | DIBBS |
| 2940-00-678-5357 | 2016-02-54 | 278 | DIBBS |
| 2940-00-678-5357 | 2015-10-291 | 253 | DIBBS |
| 2940-00-678-5357 | 2015-06-169 | 306 | DIBBS |
| 2940-00-678-5357 | 2015-02-56 | 197 | DIBBS |
| 2940-00-678-5357 | 2014-07-190 | 211 | DIBBS |
| 2940-00-678-5357 | 2013-07-196 | 127 | DIBBS |
| 2940-00-678-5357 | 2013-06-181 | 127 | DIBBS |
| 2940-00-678-5357 | 2012-12-356 | 56 | DIBBS |
| 2940-00-678-5357 | 2012-11-318 | 136 | DIBBS |
| 2940-00-678-5357 | 2012-11-313 | 80 | DIBBS |
| 2940-00-678-5357 | 2012-09-260 | 138 | DIBBS |
| 2940-00-678-5357 | 2010-09-258 | 142 | DIBBS |
| 2940-00-678-5357 | 2007-01-23 | 1150 | DIBBS |
| 2940-00-678-5357 | 2006-06-179 | 144 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2940-00-678-5357
Technical Data | NSN 2940-00-678-5357
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A6 CYLINDRICAL W/OUT CONTAINER |
| BODY DIAMETER | 1.750 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 1.000 INCHES NOMINAL |
| BODY OVERALL LENGTH | 4.455 INCHES NOMINAL |
| MATERIAL | PAPER FILTERING MEDIUM |
| FILTERING MEDIA DESIGN | ANY ACCEPTABLE SINGLE FILTERING MEDIA RESPONSE |
| DESIGN TYPE | NONREUSABLE |
| FILTRATION RATING IN MICRONS | NOT RATED |
| FLOW DIRECTION | OUTSIDE IN |
| MEDIA FOR WHICH DESIGNED | ANY ACCEPTABLE |
| TEMP RATING | NOT RATED |
| DROP PRESSURE | NOT RATED |
| DIFFERENTIAL PRESSURE | NOT RATED |
Restrictions/Controls & Freight Information | NSN 2940-00-678-5357
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133320 | MACHINERY PARTS OIL/FUEL FILTER |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2940-00-678-5357
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SU | SU:AF SICA RESIDUAL MMAC-OO-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
