NSN 2940-00-580-6283 MS358023, MS35802-3, CH33PLMIL
Product Details | FLUID FILTER ELEMENT
2940-00-580-6283 A replaceable device designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous material (metallic or non-metallic), stacked disks, wound wire, or the like, constructed so the fluid can flow through the device while the solid particles are retained. It may be designed to fit into a FILTER, FLUID (or similar cavity), or it may have an integral outer casing and mounting facilities and be designed to connect directly to an engine, compressor, or the like. The degree of removal of particles must be nominally rated at less than 50 microns or absolutely rated at less than 75 microns. Excludes FILTER ELEMENT, AIR CONDITIONING. See also STRAINER ELEMENT, SEDIMENT.20916500058Aircraft Hydraulic, Vacuum, and De-icing System Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters5999000065300053Hospital Furniture, Equipment, Utensils, and Supplies66300029Chemical Analysis Instruments
Part Alternates: MS358023, MS35802-3, CH33PLMIL, CW203MP, CW-203MP, S0706A, S-0706A, FF351, F-F-351, F-F-351/7-3, FF35173, OF 33 APL, OF33APL, P20HD, P20-HD , 108004, 23530410, 2940PL0885085, 3897941, 60361, 2940-00-580-6283, 00-580-6283, 2940005806283, 2940007187391 , 005806283
Engine Accessories | Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-580-6283 | 32624 ( FILTER ELEMENT, FLUID ) |

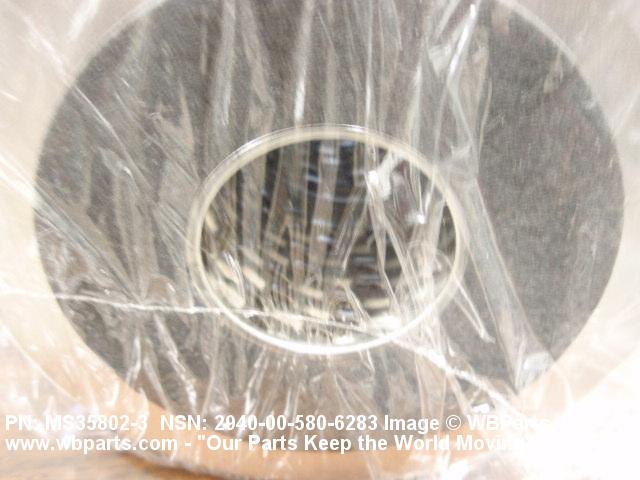

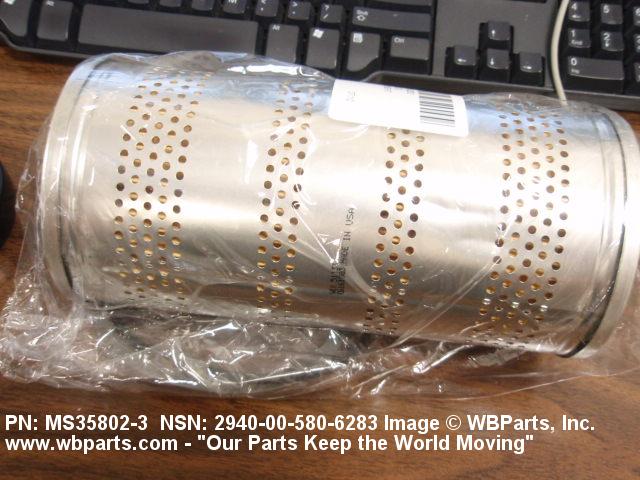

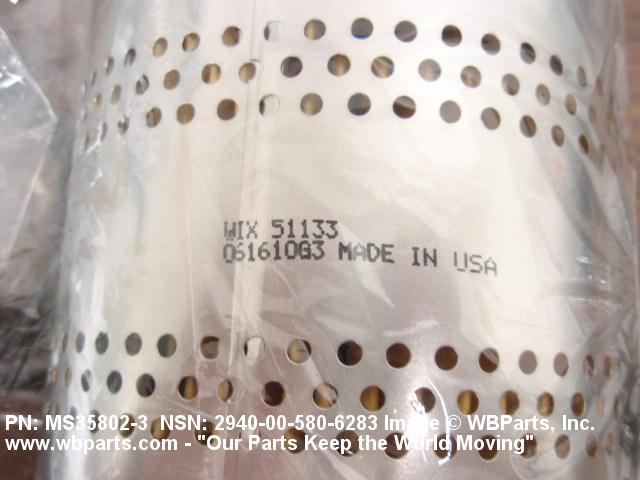

Drawings & Photos | NSN 2940-00-580-6283
Demand History | NSN 2940-00-580-6283
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2940-00-580-6283 | 2024-10-298 | 12 | HU |
| 2940-00-580-6283 | 2024-10-279 | 1 | SA |
| 2940-00-580-6283 | 2024-10-277 | 1 | SA |
| 2940-00-580-6283 | 2024-07-200 | 52788 | DIBBS |
| 2940-00-580-6283 | 2024-06-162 | 3 | BR |
| 2940-00-580-6283 | 2024-06-162 | 3 | IL |
| 2940-00-580-6283 | 2024-05-148 | 1 | BR |
| 2940-00-580-6283 | 2024-03-85 | 50 | IT |
| 2940-00-580-6283 | 2024-02-59 | 1500 | US |
| 2940-00-580-6283 | 2024-02-52 | 34854 | DIBBS |
| 2940-00-580-6283 | 2024-02-32 | 22477 | DIBBS |
| 2940-00-580-6283 | 2023-12-353 | 2 | US |
| 2940-00-580-6283 | 2023-11-333 | 20 | UA |
| 2940-00-580-6283 | 2023-11-317 | 12377 | DIBBS |
| 2940-00-580-6283 | 2023-04-108 | 200 | United States |
| 2940-00-580-6283 | 2023-01-12 | 53 | DIBBS |
| 2940-00-580-6283 | 2022-10-293 | 40 | AE |
| 2940-00-580-6283 | 2022-10-293 | 2429 | DIBBS |
| 2940-00-580-6283 | 2022-09-263 | 4 | Taiwan |
| 2940-00-580-6283 | 2022-09-250 | 20 | US |
| P20HD | 2022-05-123 | 34 | MX |
| 2940-00-580-6283 | 2022-03-81 | 2097 | DIBBS |
| 2940-00-580-6283 | 2022-01-20 | 3478 | DIBBS |
| 2940-00-580-6283 | 2021-12-336 | 3291 | DIBBS |
| 2940-00-580-6283 | 2021-06-178 | 1763 | DIBBS |
| 2940-00-580-6283 | 2020-10-289 | 9 | US |
| 2940-00-580-6283 | 2020-09-258 | 1 | TW |
| 2940-00-580-6283 | 2020-08-230 | 50 | OM |
| 2940-00-580-6283 | 2020-07-184 | 1 | Brazil |
| 2940-00-580-6283 | 2019-12-352 | 140 | United States |
| 2940-00-580-6283 | 2019-12-352 | 10 | Singapore |
| 2940-00-580-6283 | 2019-10-303 | 160 | Singapore |
| 2940-00-580-6283 | 2019-05-134 | 2 | United States |
| 2940-00-580-6283 | 2018-07-204 | 2000 | DIBBS |
| 2940-00-580-6283 | 2018-06-180 | 2 | US |
| 2940-00-580-6283 | 2018-05-129 | 300 | DIBBS |
| 2940-00-580-6283 | 2018-03-73 | 3700 | DIBBS |
| 2940-00-580-6283 | 2018-02-35 | 1850 | DIBBS |
| 2940-00-580-6283 | 2018-01-02 | 2340 | DIBBS |
| 2940-00-580-6283 | 2017-12-362 | 6 | US |
| 2940-00-580-6283 | 2017-12-351 | 3391 | DIBBS |
| 2940-00-580-6283 | 2017-11-312 | 3000 | US |
| 2940-00-580-6283 | 2017-02-54 | 24 | US |
| 2940-00-580-6283 | 2016-12-344 | 72 | US |
| 2940-00-580-6283 | 2016-12-344 | 72 | United Arab Emirates |
| 2940-00-580-6283 | 2016-03-91 | 6923 | DIBBS |
| 2940-00-580-6283 | 2015-09-246 | 7644 | DIBBS |
| 2940-00-580-6283 | 2015-05-138 | 121 | Israel |
| 2940-00-580-6283 | 2015-04-103 | 10 | Malaysia |
| 2940-00-580-6283 | 2015-02-41 | 40 | MANUAL |
| 2940-00-580-6283 | 2014-10-279 | 3975 | DIBBS |
| 2940-00-580-6283 | 2014-08-224 | 68 | US |
| P20HD | 2014-08-224 | 309 | US |
| 2940-00-580-6283 | 2014-07-212 | 4469 | DIBBS |
| 2940-00-580-6283 | 2014-06-152 | 4121 | DIBBS |
| 2940-00-580-6283 | 2013-12-339 | 4197 | DIBBS |
| 2940-00-580-6283 | 2013-10-283 | 1000 | Germany |
| 2940-00-580-6283 | 2013-01-09 | 2 | US |
| 2940-00-580-6283 | 2013-01-07 | 8151 | DIBBS |
| 2940-00-580-6283 | 2012-05-143 | 11 | MANUAL |
| 2940-00-580-6283 | 2012-04-99 | 4 | US |
| FF35173 | 2012-01-24 | 555 | US |
| 2940-00-580-6283 | 2012-01-09 | 10 | US |
| 2940-00-580-6283 | 2011-05-151 | 4650 | PK |
| 2940-00-580-6283 | 2011-03-80 | 8 | US |
| 2940-00-580-6283 | 2011-03-76 | 1 | United States |
| FF351 | 2010-09-264 | 72 | AE |
| MS358023 | 2010-09-264 | 72 | AE |
| 2940-00-580-6283 | 2010-06-171 | 20 | United Arab Emirates |
| 2940-00-580-6283 | 2010-06-161 | 50 | US |
| 2940-00-580-6283 | 2010-06-161 | 170 | US |
| CW203MP | 2009-08-229 | 12 | US |
| 2940-00-580-6283 | 2009-06-153 | 1 | us |
| 2940-00-580-6283 | 2009-03-82 | 301 | AR |
| 2940-00-580-6283 | 2009-03-82 | 300 | AR |
| 2940-00-580-6283 | 2008-11-311 | 10 | IT |
| 23530410 | 2008-09-271 | 10 | Malaysia |
| 2940-00-580-6283 | 2007-07-208 | 21427 | DIBBS |
| 2940-00-580-6283 | 2007-07-197 | 16259 | DIBBS |
| 2940-00-580-6283 | 2007-03-78 | 17993 | DIBBS |
| MS358023 | 2007-03-60 | 12000 | United States |
| 2940-00-580-6283 | 2007-02-51 | 19156 | DIBBS |
Cross Reference | NSN 2940-00-580-6283
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 108004 | 74069 | HASTINGS MANUFACTURING COMPANY LLC |
| 23530410 | 62860 | PENN DETROIT DIESEL ALLISON, LLC DIV GOVERNMENT SERVICES DEPARTMENT |
| 23530410 | ZV845 | MTU DETROIT DIESEL AUSTRALIA PTY LT |
| 2940007187391 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 2940PL0885085 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| 3897941 | 61260 | MTH TOOL COMPANY INC. DBA MTH PUMPS |
| 60361 | 64829 | ARVINMERITOR INC |
| CH33PLMIL | 73370 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL DIV CONSUMER PRODUCTS |
| CW-203MP | 79396 | WIX CORP |
| F-F-351 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| F-F-351/7-3 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS35802-3 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| OF 33 APL | G1004 | OLYMPIC FILTER S.A. DBA OLYMPIC FILTER S.A. |
| P20-HD | 12658 | BALDWIN FILTERS INC |
| S-0706A | 76700 | CUMMINS FILTRATION INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2940-00-580-6283
Related Products | NSN 2940-00-580-6283
Restrictions/Controls & Freight Information | NSN 2940-00-580-6283
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 069100 | FILTERS:CARTRIDGES/ELEMENTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2940-00-580-6283
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | N | Tactical Vehicles |
| Weapons Systems/End Item or Homogeneous Group | NR | Heavy Expanded Mobility Tactical Trucks (HEMTT), all body types (ABT) M977, M978, M983, M984, M984A1, M985 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SU | SU:AF SICA RESIDUAL MMAC-OO-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | T | |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
