NSN 2940-00-322-9479 B14073A, 7971419, 00-322-9479
Product Details | FLUID FILTER COVER
2940-00-322-9479 A rigid item of various shapes designed as a component of a fluid filter, acting as the cover and retaining the filter element in place. The item does not have an inlet or outlet connection. It is fastened onto the FILTER BODY, FLUID by means of clamps or bolts. For items with inlet and/or outlet connections, see HEAD, FLUID FILTER.20716500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters
Part Alternates: B14073A, 7971419, 2940-00-322-9479, 00-322-9479, 2940003229479, 003229479
Engine Accessories | Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-322-9479 | 22569 ( COVER, FLUID FILTER ) |
Drawings & Photos | NSN 2940-00-322-9479
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2940-00-322-9479
Technical Data | NSN 2940-00-322-9479
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| ATTACHMENT METHOD | BOLTED |

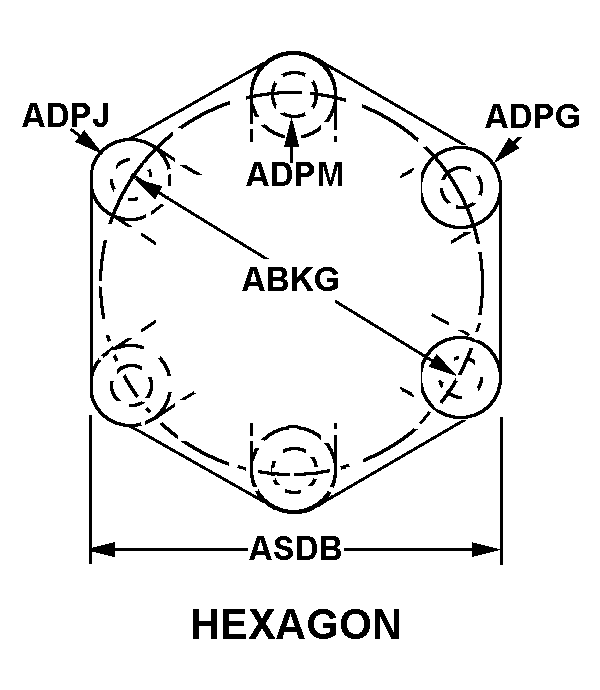

| PERIPHERAL SHAPE STYLE | 14 HEXAGON |
| BOLT CIRCLE DIAMETER | 3.750 INCHES NOMINAL |
| EAR RADIUS | 0.625 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 3.875 INCHES NOMINAL |
| CORNER QUANTITY | 6 |
| BOLT CIRCLE HOLE QUANTITY | 6 |
| FLANGE THICKNESS | 0.375 INCHES NOMINAL |
| FIRST RECESS INSIDE HEIGHT | 0.312 INCHES NOMINAL |
| BODY THICKNESS | 0.188 INCHES NOMINAL |
| MOUNTING HOLE TYPE AND QUANTITY | 6 PLAIN |
| MOUNTING OPENING SHAPE STYLE | 1 UNTHREADED HOLE |
| HOLE DIAMETER | 0.344 INCHES NOMINAL |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 7971419 |
Restrictions/Controls & Freight Information | NSN 2940-00-322-9479
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
