Product Details | FILLER OPENING CAP

2930-01-563-9774 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).20525900034Miscellaneous Vehicular Components29300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving53400020Hardware, Commercial53420023Hardware, Weapon System

Part Alternates: SA7142761, 2930-01-563-9774, 01-563-9774, 2930015639774, 015639774

Engine Accessories | Engine Cooling System Components, Nonaircraft

Supply Group (FSG) NSN Assign. NIIN
29 30 MAY 2008 01-563-9774

Drawings & Photos | NSN 2930-01-563-9774


Cross Reference | NSN 2930-01-563-9774

Part Number Cage Code Manufacturer
SA7142761 10001 NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
SA7142761 53711 NAVAL SEA SYSTEMS COMMAND

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2930-01-563-9774

Technical Data | NSN 2930-01-563-9774

Characteristic Specifications
MATERIAL ALUMINUM ALLOY 6061 OVERALL
SURFACE TREATMENT ANODIZE OVERALL

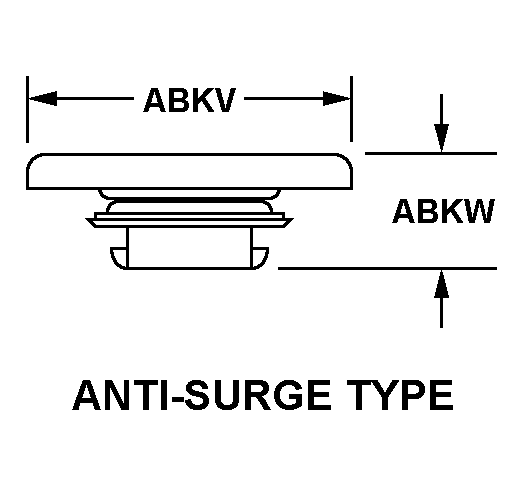

STYLE DESIGNATOR C16 ANTI-SURGE TYPE
OUTSIDE DIAMETER 3.020 INCHES NOMINAL
OVERALL HEIGHT 1.000 INCHES NOMINAL
SYSTEM FOR WHICH DESIGNED NONPRESSURIZED
FILLER NECK DIAMETER FOR WHICH DESIGNED 2.370 INCHES NOMINAL
THREAD SERIES DESIGNATOR UNF
THREAD DIAMETER 0.190 INCHES NOMINAL
THREAD QUANTITY 32.000 PER INCH
THREAD CLASS 2B
GRIPPING ACCOMMODATION TYPE WING GRIP
SPECIAL FEATURES TOP IS NOT CIRCULAR BUT RECTANGULAR WITH ROUNDED SIDES; HAS 4 THRU HOLES OF 0.276 INCH DIAMETERS AND TWO THREADED HOLES ALREADED DESCRIBED
III END ITEM IDENTIFICATION ADCAP PROGRAM
III PART NAME ASSIGNED BY CONTROLLING AGENCY FUEL TANK PLUG FOR FCV PORT

Restrictions/Controls & Freight Information | NSN 2930-01-563-9774

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
