NSN 2930-01-406-4735 076-76240-00 PC 3, 0767624000PC3, 37657277000
Product Details | FLUID COOLER CORE ASSEMBLY
2930-01-406-4735 An assembled unit which may consist of tubes, tube sheets, baffles and fins which comprise the basic heat transfer element of a COOLER, FLUID, TRANSMISSION and COOLER, FLUID, INDUSTRIAL. Excludes automotive radiators.20229300045Engine Cooling System Components, Nonaircraft44200036Heat Exchangers and Steam Condensers
Part Alternates: 076-76240-00 PC 3, 0767624000PC3, 37657277000, 376-57277-000, 37657277D, 376-57277D, 67657277000, 676-57277-000 , 2930-01-406-4735, 01-406-4735, 2930014064735, 014064735
Engine Accessories | Engine Cooling System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 05 JAN 1995 | 01-406-4735 | 36982 ( CORE ASSEMBLY, FLUID COOLER ) |
Drawings & Photos | NSN 2930-01-406-4735
Demand History | NSN 2930-01-406-4735
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 076-76240-00 PC 3 | 2023-11-333 | 1 | DIBBS |
| 676-57277-000 | 2023-11-333 | 1 | DIBBS |
| 076-76240-00 PC 3 | 2023-10-302 | 2 | DIBBS |
| 676-57277-000 | 2023-10-302 | 2 | DIBBS |
| 076-76240-00 PC 3 | 2022-01-09 | 3 | DIBBS |
| 676-57277-000 | 2022-01-09 | 3 | DIBBS |
| 076-76240-00 PC 3 | 2021-08-216 | 2 | DIBBS |
| 676-57277-000 | 2021-08-216 | 2 | DIBBS |
| 076-76240-00 PC 3 | 2021-04-111 | 2 | DIBBS |
| 676-57277-000 | 2021-04-111 | 2 | DIBBS |
| 076-76240-00 PC 3 | 2020-05-132 | 3 | DIBBS |
| 676-57277-000 | 2020-05-132 | 3 | DIBBS |
| 2930-01-406-4735 | 2018-11-311 | 4 | DIBBS |
| 2930-01-406-4735 | 2018-10-277 | 1 | DIBBS |
| 2930-01-406-4735 | 2018-05-127 | 1 | DIBBS |
| 2930-01-406-4735 | 2018-04-116 | 1 | DIBBS |
| 2930-01-406-4735 | 2018-04-94 | 1 | DIBBS |
| 2930-01-406-4735 | 2018-03-74 | 1 | DIBBS |
| 2930-01-406-4735 | 2017-06-181 | 1 | DIBBS-RFPs |
| 2930-01-406-4735 | 2013-12-338 | 2 | DIBBS |
Cross Reference | NSN 2930-01-406-4735
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 076-76240-00 PC 3 | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
| 376-57277-000 | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
| 376-57277D | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
| 676-57277-000 | 66935 | YORK INTERNATIONAL CORPORATION DBA JOHNSON CONTROLS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2930-01-406-4735
Related Products | NSN 2930-01-406-4735
Technical Data | NSN 2930-01-406-4735
| Characteristic | Specifications |
|---|---|
| MATERIAL THICKNESS | 0.344 INCHES NOMINAL |

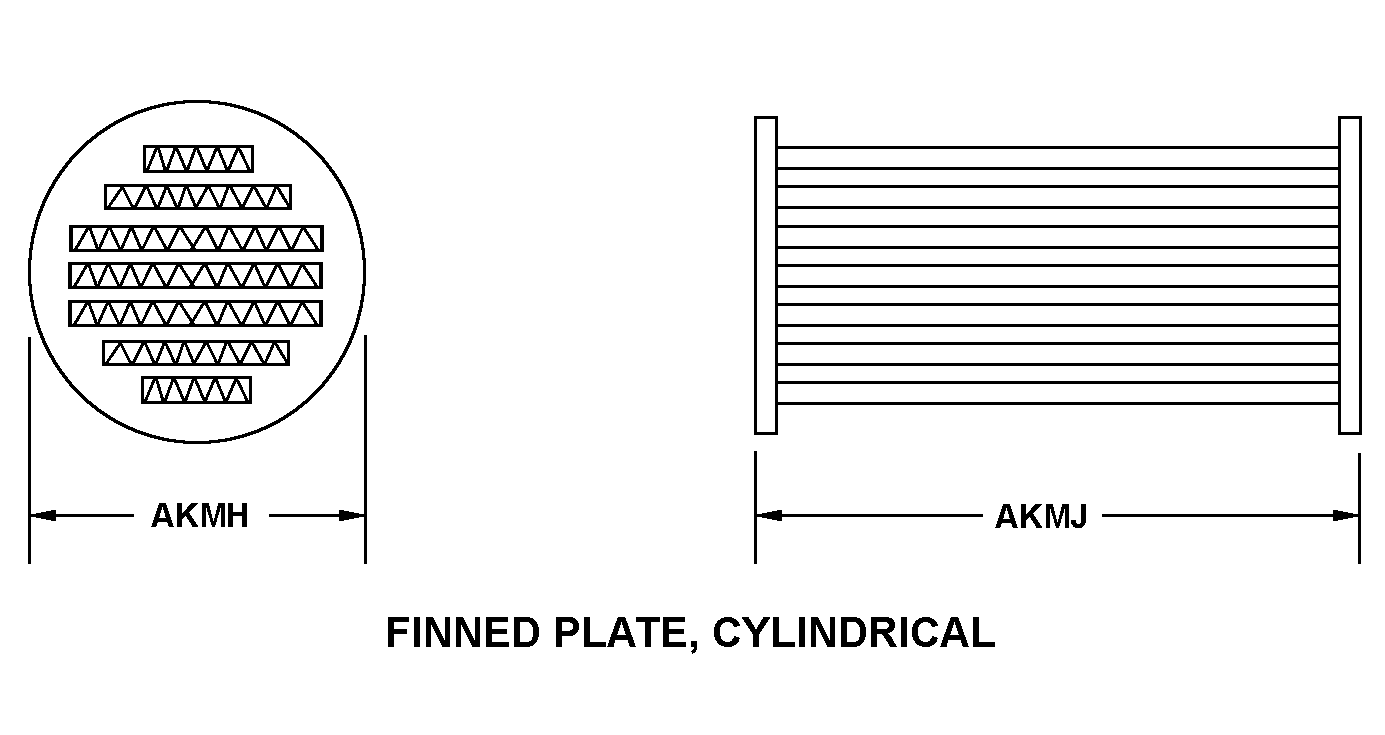

| STYLE DESIGNATOR | B7 FINNED PLATE, CYLINDRICAL |
| CORE DIAMETER | 4.000 INCHES NOMINAL |
| CORE LENGTH | 4.000 INCHES NOMINAL |
| HEAT TRANSFER METHOD | DIRECT |
| TUBE QUANTITY | 32 |
| TUBE ATTACHMENT METHOD | EXPANDED INLET-PACKED OUTLET |
| SPECIAL FEATURES | 4INX24INLG 32TUBS |
| III STORAGE TYPE | CLOSED SHED |
| III END ITEM SOURCE | 66935 |
| III END ITEM IDENTIFICATION | YORK INTL CORP COOLER FLUID |
| III PURCHASE DESCRIPTION IDENTIFICATION | 66935-076-76240-000 PC 3 |
Restrictions/Controls & Freight Information | NSN 2930-01-406-4735
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 190500 | VEHICLE PARTS GROUP |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 590 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2930-01-406-4735
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
