NSN 2930-01-168-7911 12340185, 19111, 2930PL0643713
Product Details | ENGINE LUBRICATING OIL COOLER
2930-01-168-7911 A heat transfer device specifically designed to remove heat from lubricating oil to lower its temperature. Excludes radiators.20229300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving
Part Alternates: 12340185, 19111, 2930PL0643713, 5578601, 2930-01-168-7911, 01-168-7911, 2815011687911 , 2930011687911, 011687911
Engine Accessories | Engine Cooling System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 23 DEC 1983 | 01-168-7911 | 35373 ( COOLER, LUBRICATING OIL, ENGINE ) |
Drawings & Photos | NSN 2930-01-168-7911
Demand History | NSN 2930-01-168-7911
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12340185 | 2023-06-173 | 44 | DIBBS |
| 2930-01-168-7911 | 2021-12-351 | 1 | US |
| 2930-01-168-7911 | 2020-05-147 | 1 | MANUAL |
| 2930-01-168-7911 | 2019-09-268 | 1 | DIBBS-RFPs |
| 2930-01-168-7911 | 2019-06-158 | 1 | DIBBS-RFPs |
| 12340185 | 2019-01-03 | 300 | DIBBS |
| 2930-01-168-7911 | 2018-11-330 | 120 | DIBBS |
| 2930-01-168-7911 | 2018-10-289 | 300 | DIBBS |
| 2930-01-168-7911 | 2018-05-150 | 1045 | DIBBS |
| 2930-01-168-7911 | 2018-05-137 | 167 | DIBBS |
| 2930-01-168-7911 | 2018-04-113 | 116 | DIBBS |
| 2930-01-168-7911 | 2018-04-106 | 1045 | DIBBS |
| 2930-01-168-7911 | 2018-01-27 | 1 | DIBBS-RFPs |
| 2930-01-168-7911 | 2018-01-18 | 2 | SA |
| 2930-01-168-7911 | 2017-11-334 | 330 | DIBBS |
| 2930-01-168-7911 | 2017-10-288 | 178 | DIBBS |
| 2930-01-168-7911 | 2017-09-247 | 196 | DIBBS |
| 2930-01-168-7911 | 2017-07-207 | 170 | DIBBS |
| 2930-01-168-7911 | 2017-05-129 | 1 | US |
| 2930-01-168-7911 | 2017-02-59 | 390 | DIBBS |
| 2930-01-168-7911 | 2017-02-36 | 390 | DIBBS |
| 2930-01-168-7911 | 2017-02-32 | 220 | DIBBS |
| 2930-01-168-7911 | 2017-01-13 | 317 | DIBBS |
| 2930-01-168-7911 | 2016-12-348 | 317 | DIBBS |
| 2930-01-168-7911 | 2016-11-327 | 99 | DIBBS |
| 2930-01-168-7911 | 2016-11-308 | 100 | DIBBS |
| 2930-01-168-7911 | 2016-10-291 | 301 | DIBBS |
| 2930-01-168-7911 | 2016-08-221 | 136 | DIBBS |
| 2930-01-168-7911 | 2016-07-189 | 136 | DIBBS |
| 2930-01-168-7911 | 2016-04-112 | 301 | DIBBS |
| 2930-01-168-7911 | 2016-03-62 | 465 | DIBBS |
| 2930-01-168-7911 | 2016-02-35 | 244 | DIBBS |
| 2930-01-168-7911 | 2015-12-355 | 136 | DIBBS |
| 2930-01-168-7911 | 2011-08-223 | 1 | US |
| 2930-01-168-7911 | 2008-11-322 | 2 | US |
Cross Reference | NSN 2930-01-168-7911
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12340185 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 12340185 | 34623 | AM GENERAL, LLC |
| 19111 | 50022 | BEHR HEAT TRANSFER SYSTEMS INC |
| 2815011687911 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 2930PL0643713 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| 5578601 | 34623 | AM GENERAL, LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2930-01-168-7911
Related Products | NSN 2930-01-168-7911
Technical Data | NSN 2930-01-168-7911
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

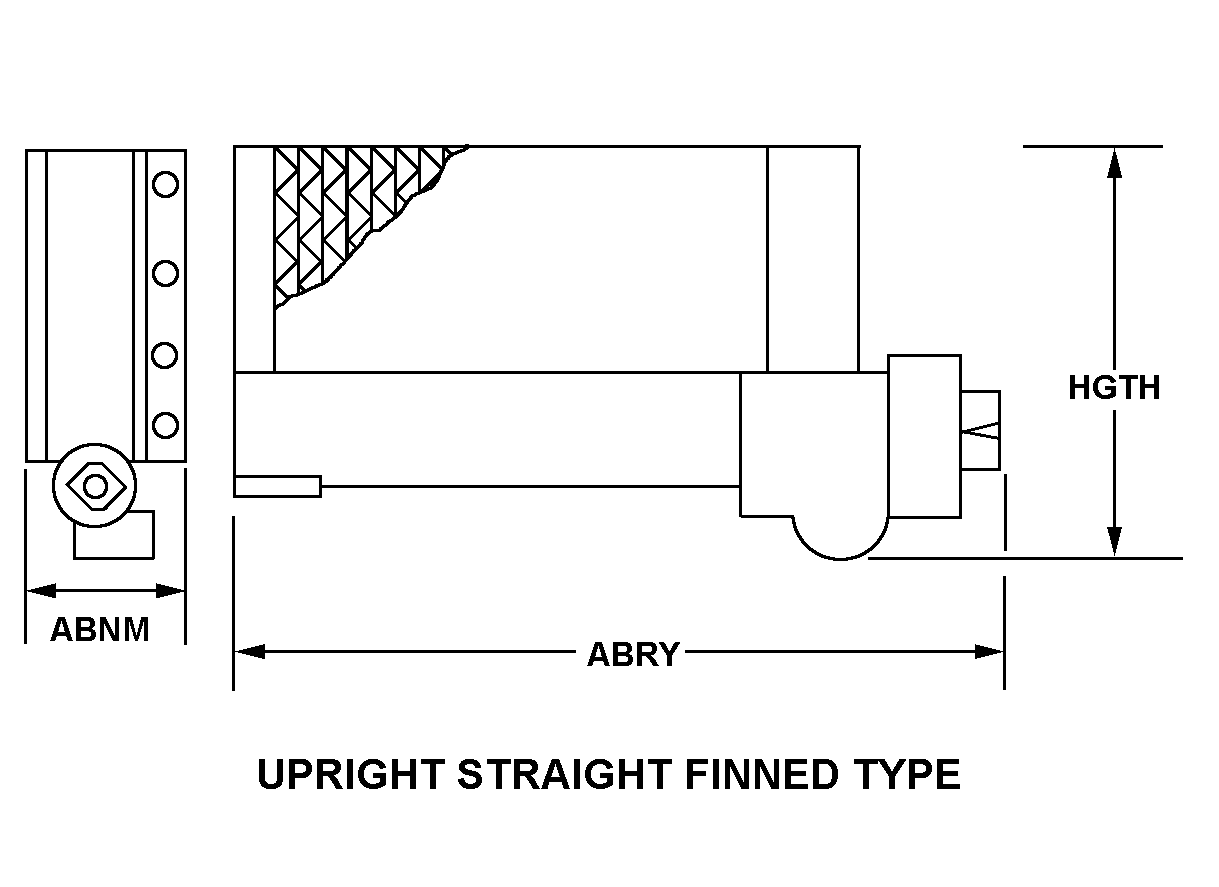

| STYLE DESIGNATOR | A4 UPRIGHT STRAIGHT FINNED TYPE |
| THICKNESS | 1.532 INCHES NOMINAL |
| LENGTH | 27.250 INCHES NOMINAL |
| HEIGHT | 21.500 INCHES NOMINAL |
| HEAT TRANSFER METHOD | INDIRECT |
| DRAIN PLUG LOCATION | SIDE |
| MANUFACTURERS CODE | 19207 |
| MFR SOURCE CONTROLLING REFERENCE | 12340185 |
Restrictions/Controls & Freight Information | NSN 2930-01-168-7911
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 155150 | PETROLEUM: ADDITIVES, FUEL OIL, |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2930-01-168-7911
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | N | Tactical Vehicles |
| Weapons Systems/End Item or Homogeneous Group | N5 | High Mobility Multi-Purpose Wheeled Vehicle (HMMWV) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | F | If condemned or uneconomically repairable, then dispose at Direct Support (DS) level. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | S | |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | F | Reparable item. When uneconomically reparable, condemn and dispose at the third echelon level. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
