NSN 2930-01-146-7964 298224, 5435232, 01-146-7964
Product Details | ENGINE LUBRICATING OIL COOLER
2930-01-146-7964 A heat transfer device specifically designed to remove heat from lubricating oil to lower its temperature. Excludes radiators.20229300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving
Part Alternates: 298224, 5435232, 2930-01-146-7964, 01-146-7964, 2930011467964, 011467964
Engine Accessories | Engine Cooling System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 05 FEB 1983 | 01-146-7964 | 35373 ( COOLER, LUBRICATING OIL, ENGINE ) |
Drawings & Photos | NSN 2930-01-146-7964
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2930-01-146-7964
Related Products | NSN 2930-01-146-7964
Technical Data | NSN 2930-01-146-7964
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM HOUSING |
| MATERIAL THICKNESS | 0.010 INCHES NOMINAL |

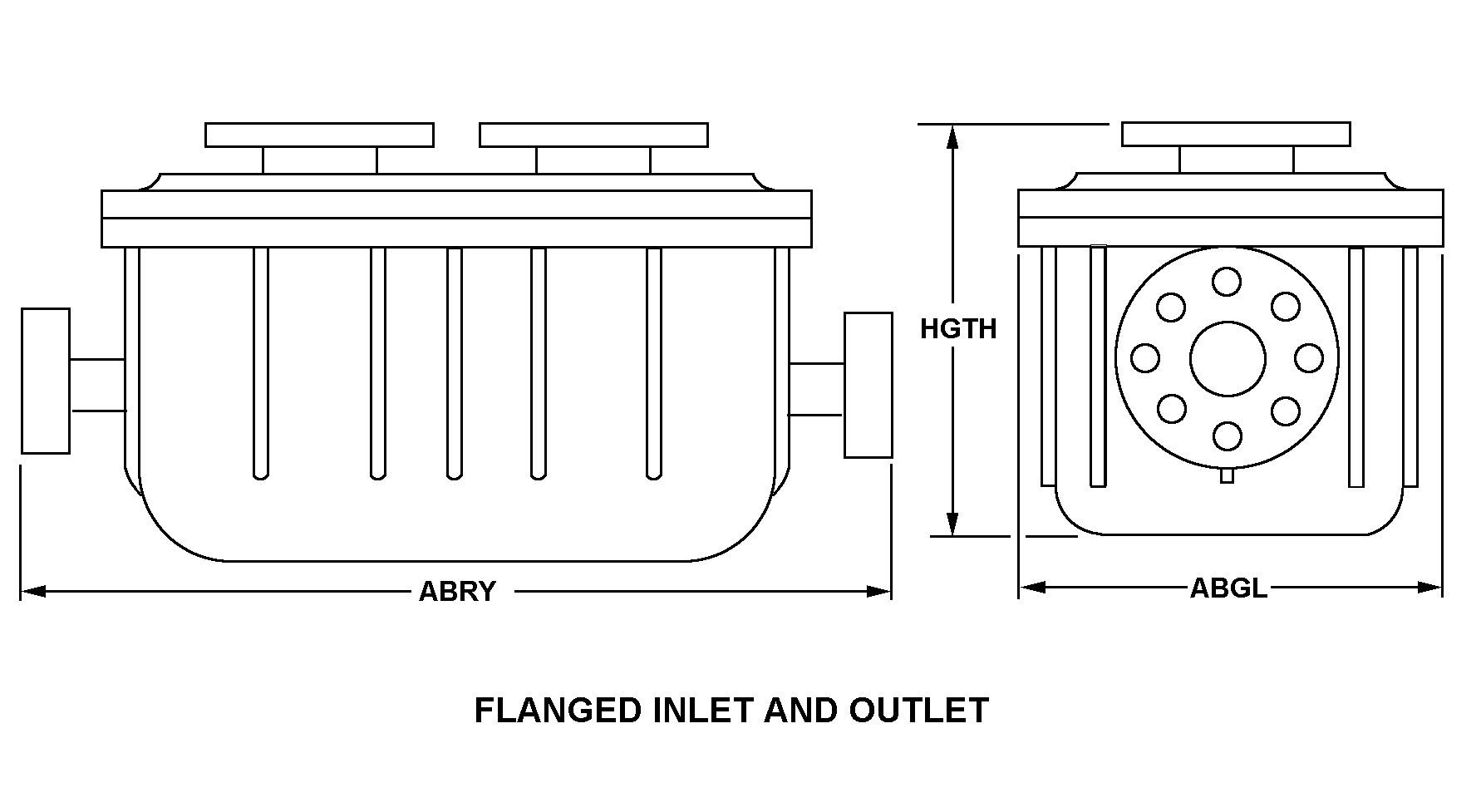

| STYLE DESIGNATOR | A7 FLANGED INLET AND OUTLET |
| WIDTH | 1.500 INCHES NOMINAL |
| LENGTH | 12.500 INCHES NOMINAL |
| HEIGHT | 7.750 INCHES NOMINAL |
| HEAT TRANSFER METHOD | INDIRECT |
| TUBE ATTACHMENT METHOD | BRAZED BOTH ENDS |
| CORE FRONTAL AREA | 63.0 SQUARE INCHES |
| CAPACITY RATING | 67.8 GALLONS PER HOUR |
Restrictions/Controls & Freight Information | NSN 2930-01-146-7964
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 155150 | PETROLEUM: ADDITIVES, FUEL OIL, |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2930-01-146-7964
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
