NSN 2930-00-789-0117 AAX0851, B107480, B166667

Product Details | FILLER OPENING CAP

2930-00-789-0117 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).20525900034Miscellaneous Vehicular Components29300045Engine Cooling System Components, Nonaircraft29350055Engine System Cooling Components, Aircraft Prime Moving53400020Hardware, Commercial53420023Hardware, Weapon System

Part Alternates: AAX0851, B107480, B166667, 12960A, 260846, 26084-6 , 5197679, 66853BX, 2930-00-789-0117, 00-789-0117, 2930007890117, 007890117

Engine Accessories | Engine Cooling System Components, Nonaircraft

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
29	01 JAN 1960	00-789-0117	30128 ( CAP, FILLER OPENING )

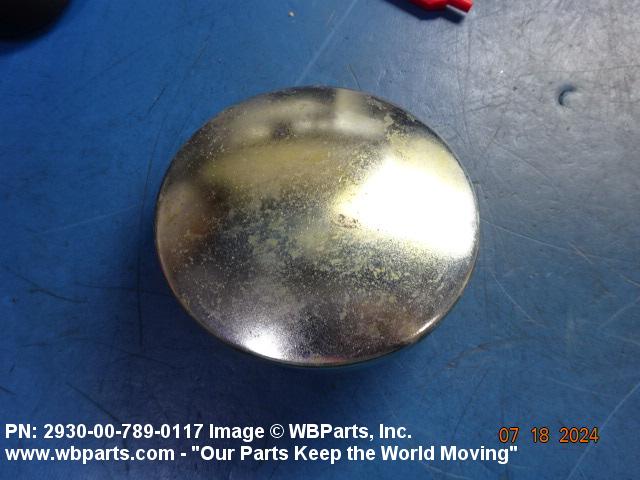

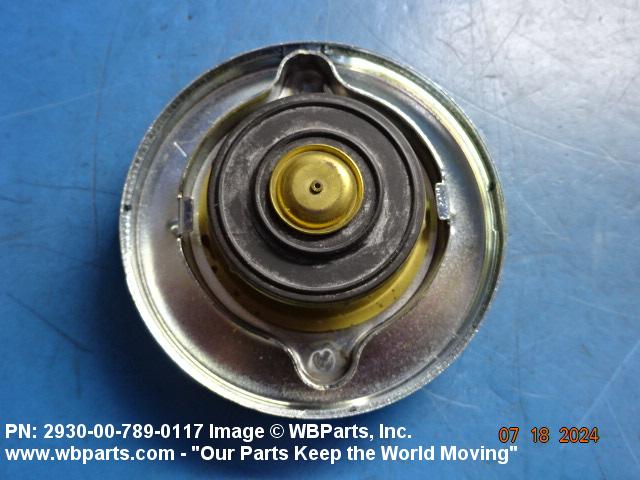

Drawings & Photos | NSN 2930-00-789-0117

Part Number	Request Date	QTY	Origin
2930-00-789-0117	2024-07-190	1	United States
12960A	2024-06-161	945	DIBBS
26084-6	2024-06-161	945	DIBBS
66853BX	2024-06-161	945	DIBBS
AAX0851	2024-06-161	945	DIBBS
B166667	2024-06-161	945	DIBBS
12960A	2024-05-148	945	DIBBS
26084-6	2024-05-148	945	DIBBS
66853BX	2024-05-148	945	DIBBS
AAX0851	2024-05-148	945	DIBBS
B166667	2024-05-148	945	DIBBS
12960A	2024-03-81	503	DIBBS
26084-6	2024-03-81	503	DIBBS
66853BX	2024-03-81	503	DIBBS
AAX0851	2024-03-81	503	DIBBS
B166667	2024-03-81	503	DIBBS
12960A	2023-12-347	503	DIBBS
26084-6	2023-12-347	503	DIBBS
66853BX	2023-12-347	503	DIBBS
AAX0851	2023-12-347	503	DIBBS
B166667	2023-12-347	503	DIBBS
2930-00-789-0117	2023-10-284	4	US
12960A	2023-09-250	442	DIBBS
26084-6	2023-09-250	442	DIBBS
66853BX	2023-09-250	442	DIBBS
AAX0851	2023-09-250	442	DIBBS
B166667	2023-09-250	442	DIBBS
12960A	2020-07-209	522	DIBBS
26084-6	2020-07-209	522	DIBBS
66853BX	2020-07-209	522	DIBBS
AAX0851	2020-07-209	522	DIBBS
B166667	2020-07-209	522	DIBBS
12960A	2020-03-69	522	DIBBS
26084-6	2020-03-69	522	DIBBS
66853BX	2020-03-69	522	DIBBS
AAX0851	2020-03-69	522	DIBBS
B166667	2020-03-69	522	DIBBS
12960A	2020-02-54	522	DIBBS
26084-6	2020-02-54	522	DIBBS
66853BX	2020-02-54	522	DIBBS
AAX0851	2020-02-54	522	DIBBS
B166667	2020-02-54	522	DIBBS
2930-00-789-0117	2018-11-330	527	DIBBS
2930-00-789-0117	2018-08-218	505	DIBBS
2930-00-789-0117	2016-09-257	750	DIBBS
2930-00-789-0117	2015-09-252	110	United States
007890117	2014-07-192	1	US
2930-00-789-0117	2014-04-104	788	DIBBS
2930-00-789-0117	2014-04-93	788	DIBBS
2930-00-789-0117	2013-05-142	0	DIBBS
5197679	2012-01-17	10	US
2930-00-789-0117	2011-09-244	507	DIBBS
2930-00-789-0117	2011-07-193	577	DIBBS
2930-00-789-0117	2011-01-12	363	DIBBS
2930-00-789-0117	2010-09-264	354	DIBBS
2930-00-789-0117	2009-12-338	527	DIBBS
2930-00-789-0117	2008-10-290	492	DIBBS
2930-00-789-0117	2008-10-281	74	DIBBS

Cross Reference | NSN 2930-00-789-0117

Part Number	Cage Code	Manufacturer
12960A	31577	JAEGER MACHINE CO
12960A	66859	YATES-AMERICAN MACHINE CO INC
26084-6	13841	TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP.
5197679	24617	GENERAL MOTORS CORP
5197679	72582	MTU AMERICA INC.
66853BX	45152	OSHKOSH CORPORATION
66853BX	75Q65	OSHKOSH DEFENSE, LLC
AAX0851	78225	STANT MFG CO INC
B107480	67049	YOUNG TOUCHSTONE COMPANY DIV YOUNG TOUCHSTONE
B166667	13841	TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP.
B166667	67049	YOUNG TOUCHSTONE COMPANY DIV YOUNG TOUCHSTONE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 2930-00-789-0117

Compare

Related Products | NSN 2930-00-789-0117

2930-00-789-0871, 2930-00-789-1004, 2930-00-789-6562, 2930-00-789-6565, 2930-00-789-7091

Technical Data | NSN 2930-00-789-0117

Characteristic	Specifications
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	ZINC OVERALL

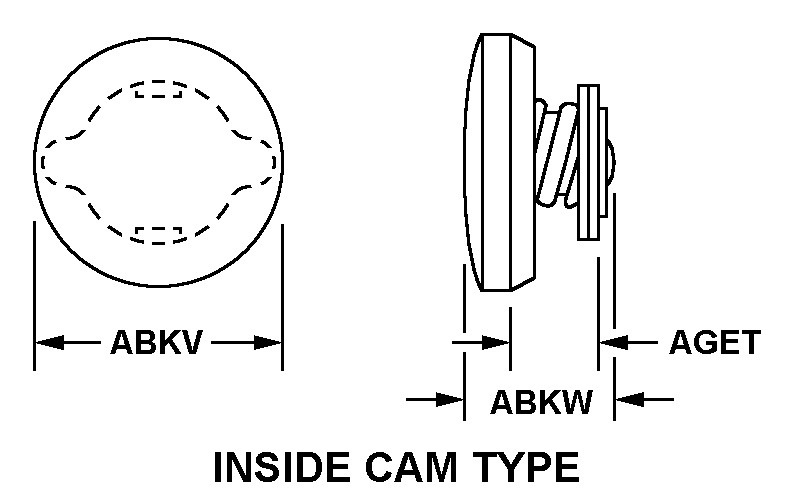

STYLE DESIGNATOR	A7 INSIDE CAM TYPE
OUTSIDE DIAMETER	4.000 INCHES NOMINAL
OVERALL HEIGHT	1.375 INCHES NOMINAL
SEALING LENGTH	0.545 INCHES MINIMUM AND 0.585 INCHES MAXIMUM
SYSTEM FOR WHICH DESIGNED	PRESSURIZED
MAXIMUM WORKING PRESSURE	8.000 POUNDS PER SQUARE INCH
PRESSURE RELIEF METHOD	MANUAL
FILLER NECK DIAMETER FOR WHICH DESIGNED	2.670 INCHES NOMINAL
CAM QUANTITY	2
GRIPPING ACCOMMODATION TYPE	KNURLED
FEATURES PROVIDED	BREATHER HOLE
MANUFACTURERS CODE	78225
DESIGN CONTROL REFERENCE	AAX0851

Restrictions/Controls & Freight Information | NSN 2930-00-789-0117

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	116430	CAPS,ENGINE RADIATOR
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	593	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 2930-00-789-0117

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SU	SU:AF SICA RESIDUAL MMAC-OO-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
