NSN 2925-00-240-3905 R37S1, 00-240-3905, 002403905
Product Details | SPARK PLUG
2925-00-240-3905 An item containing two or more electrodes across which an electric spark is discharged to ignite a fuel and air mixture, primarily in internal combustion engines. Excludes GLOW PLUG; and ELECTRODE.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: R37S1, 2925-00-240-3905, 00-240-3905, 2925002403905, 002403905
Engine Accessories | Engine Electrical System Components, Aircraft Prime Moving
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-240-3905 | 00294 ( SPARK PLUG ) |
Drawings & Photos | NSN 2925-00-240-3905
Cross Reference | NSN 2925-00-240-3905
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| R37S1 | 0AFL4 | CHAMPION AEROSPACE LLC DIV CHAMPION AEROSPACE, LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2925-00-240-3905
Technical Data | NSN 2925-00-240-3905
| Characteristic | Specifications |
|---|---|
| BODY STYLE | A5 ELECTRICALLY SHIELDED, FULL INSULATOR, GASKET SEAT |
| REACH LENGTH | 0.793 INCHES MINIMUM AND 0.813 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.875 INCHES NOMINAL |
| SEAT MAJOR DIAMETER | 0.970 INCHES MAXIMUM |
| HEIGHT ABOVE MOUNTING SURFACE | 2.125 INCHES MINIMUM AND 2.375 INCHES MAXIMUM |
| TOP TO TERMINAL CONTACT DISTANCE | 1.000 INCHES MINIMUM AND 1.070 INCHES MAXIMUM |
| TOP TO SHIELD THREAD DISTANCE | 0.105 INCHES MINIMUM AND 0.145 INCHES MAXIMUM |
| SHIELD THREAD LENGTH | 0.250 INCHES NOMINAL |
| TERMINAL SLEEVE INSIDE DIAMETER | 0.290 INCHES MINIMUM AND 0.300 INCHES MAXIMUM |

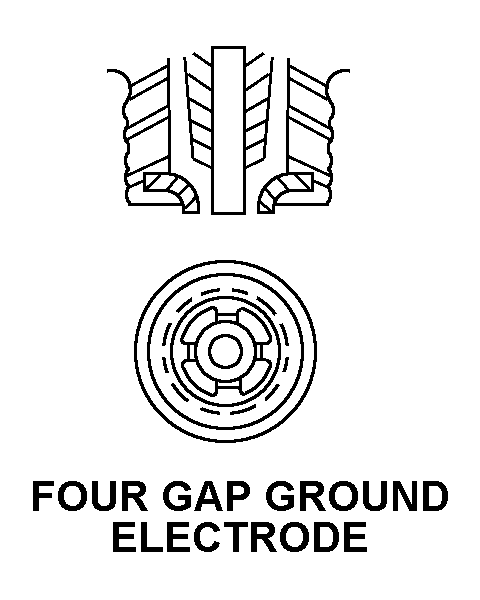

| ELECTRODE STYLE | B11 FOUR GAP GROUND ELECTRODE |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR AND LOCATION | 18-1.5MM BASE 5/8-24 UNEF SHIELDING |
| MEAN EFFECTIVE PRESSURE RATING | 330.0 POUNDS PER SQUARE INCH NOMINAL |
| DC RESISTANCE RATING IN OHMS | 1000.0 NOMINAL |
| USAGE DESIGN | ENGINE OTHER THAN AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 2925-00-240-3905
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
