NSN 2925-00-179-7143 23032020, 23032-020, 23032022
Product Details | ENGINE STARTER-GENERATOR
2925-00-179-7143 A rotating machine which is an accessory to and directly cranks an aircraft engine and subsequently generates direct current. The generator and starter action is not simultaneous. See also STARTER,ENGINE,ELECTRICAL and GENERATOR,ENGINE ACCESSORY. Excludes STARTER-GENERATOR,ENGINE,AIR TURBINE DRIVEN.
Part Alternates: 23032020, 23032-020, 23032022, 23032-022, 2925EG002, 2925EG0021, 2925EG002-1, 2925-00-179-7143, 00-179-7143, 2925001797143, 001797143
Engine Accessories | Engine Electrical System Components, Aircraft Prime Moving
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 15 NOV 1968 | 00-179-7143 | 51414 ( STARTER-GENERATOR, ENGINE, AIRCRAFT ) |

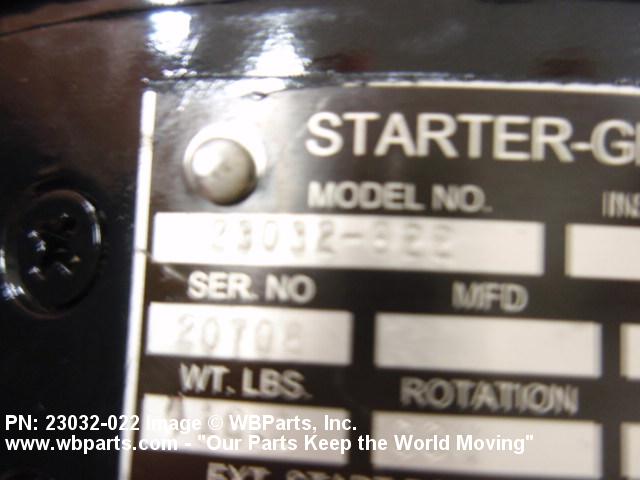

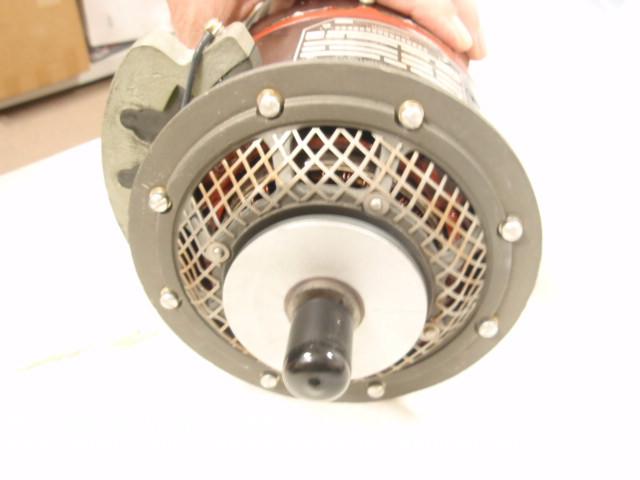

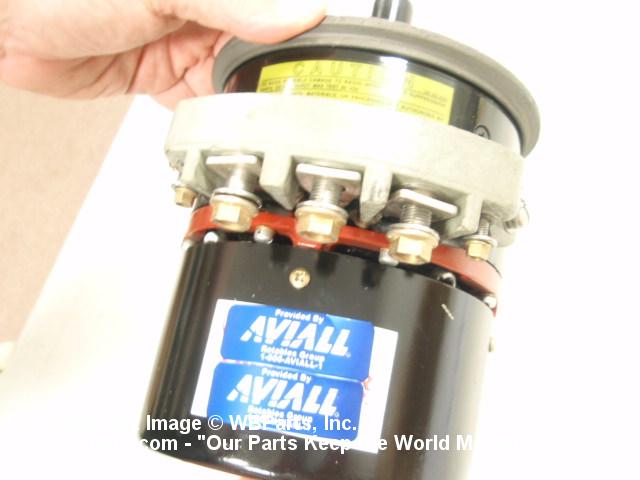

Drawings & Photos | NSN 2925-00-179-7143
Demand History | NSN 2925-00-179-7143
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2925-00-179-7143 | 2024-06-163 | 1 | US |
| 2925-00-179-7143 | 2023-06-164 | 1 | US |
| 2925-00-179-7143 | 2023-05-124 | 1 | United States |
| 2925-00-179-7143 | 2017-07-182 | 1 | CA |
| 23032022 | 2016-03-71 | 1 | us |
| 23032022 | 2014-05-122 | 2 | US |
| 2925-00-179-7143 | 2013-08-242 | 1 | US |
| 23032022 | 2013-08-226 | 1 | PH |
| 23032022 | 2010-09-265 | 1 | United States |
| 2925-00-179-7143 | 2010-09-265 | 1 | US |
| 23032022 | 2008-10-280 | 10 | Guam |
| 23032022 | 2006-03-87 | 1 | United States |
Cross Reference | NSN 2925-00-179-7143
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23032-020 | 31435 | LUCAS AEROSPACE POWER EQUIPMENT CORPORATION |
| 23032-022 | 31435 | LUCAS AEROSPACE POWER EQUIPMENT CORPORATION |
| 23032-022 | 3CPE0 | SAFRAN POWER USA, LLC |
| 2925EG002 | 81996 | U S ARMY AVIATION AND MISSILE COMMAND |
| 2925EG002-1 | 81996 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2925-00-179-7143
Related Products | NSN 2925-00-179-7143
Technical Data | NSN 2925-00-179-7143
| Characteristic | Specifications |
|---|---|
| SPLINE QUANTITY | 12 |
| MOUNTING HOLE DIAMETER | 0.339 INCHES MINIMUM AND 0.454 INCHES MAXIMUM |
| GROUNDING METHOD | INTERNAL |
| MAXIMUM OUTPUT CURRENT RATING IN AMPS | 150.0 |
| SHAFT ROTATION DIRECTION | COUNTERCLOCKWISE |
| SHAFT DRIVE END STYLE | SPLINED SHAFT END |
| SPLINE WIDTH | 0.070 INCHES MINIMUM AND 0.073 INCHES MAXIMUM |
| UNABLE TO DECODE | SQUARE FLANGE W/FOUR MTG HOLES |
| VOLTAGE IN VOLTS | 28.0 |
| SPLINE LENGTH | 0.812 INCHES MAXIMUM |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY THE MFR SOURCE CONTROL REF NO.2925EG002,FSMC 81996 |
| INPUT CURRENT RATING | 450.0 AMPERES NOMINAL |
| MOUNTING HOLE CIRCLE RADIUS | 2.500 INCHES MINIMUM |
| SPLINE MAJOR DIAMETER | 0.645 INCHES MINIMUM AND 0.650 INCHES MAXIMUM |
| SPLINE MINOR DIAMETER | 0.550 INCHES MAXIMUM |
| SUBMERSIBILITY | NONSUBMERSIBLE |
Restrictions/Controls & Freight Information | NSN 2925-00-179-7143
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2925-00-179-7143
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | H | Aircraft, Air Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BP | OH-58A and OH-58C |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | B17 | US Army Aviation and Missile Command (Air) ATTN: AMSMI-LC-MM-C Redstone Arsenal, AL 35898-5230 |
| Agency | DA | Department of the Army |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | D | When repair is beyond lower level maintenance capability, evacuate the item to depot. Disposal is not authorized below wholesale level. |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
