NSN 2925-00-087-2464 HSR86, 00-087-2464, 000872464
Product Details | SPARK PLUG
2925-00-087-2464 An item containing two or more electrodes across which an electric spark is discharged to ignite a fuel and air mixture, primarily in internal combustion engines. Excludes GLOW PLUG; and ELECTRODE.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: HSR86, 2925-00-087-2464, 00-087-2464, 2925000872464, 000872464
Engine Accessories | Engine Electrical System Components, Aircraft Prime Moving
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 18 APR 1967 | 00-087-2464 | 00294 ( SPARK PLUG ) |
Drawings & Photos | NSN 2925-00-087-2464
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2925-00-087-2464
Technical Data | NSN 2925-00-087-2464
| Characteristic | Specifications |
|---|---|
| BODY STYLE | A6 ELECTRICALLY SHIELDED, PARTIAL INSULATOR, GASKET SEAT |
| REACH LENGTH | 0.500 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.875 INCHES NOMINAL |
| HEIGHT ABOVE MOUNTING SURFACE | 2.562 INCHES NOMINAL |

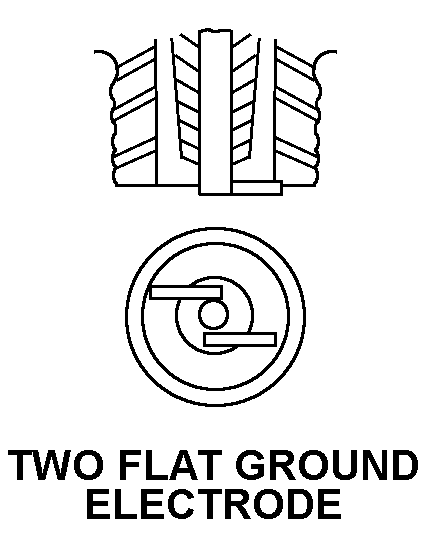

| ELECTRODE STYLE | B12 TWO FLAT GROUND ELECTRODE |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR AND LOCATION | 18-1.5MM BASE 3/4-20 UNEF SHIELDING |
| USAGE DESIGN | AIRCRAFT ENGINE |
| MANUFACTURERS CODE | 70040 |
| DESIGN CONTROL REFERENCE | HSR86 |
Restrictions/Controls & Freight Information | NSN 2925-00-087-2464
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 2925-00-087-2464
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9V | Navy-owned stocks of material managed by the Air Force within the San Antonio Air Logistics Center Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | FPZ | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
