Product Details | SPARK PLUG

2920-01-554-9024 An item containing two or more electrodes across which an electric spark is discharged to ignite a fuel and air mixture, primarily in internal combustion engines. Excludes GLOW PLUG; and ELECTRODE.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving

Part Alternates: 504082, 2920-01-554-9024, 01-554-9024, 2920015549024, 015549024

Engine Accessories | Engine Electrical System Components, Nonaircraft

Supply Group (FSG) NSN Assign. NIIN
29 22 AUG 2007 01-554-9024

Drawings & Photos | NSN 2920-01-554-9024


Cross Reference | NSN 2920-01-554-9024

Part Number Cage Code Manufacturer
504082 1UVT5 BRP US INC.
504082 32195 OUTBOARD MARINE CORP JOHNSON MOTORS DIV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2920-01-554-9024

Technical Data | NSN 2920-01-554-9024

Characteristic Specifications

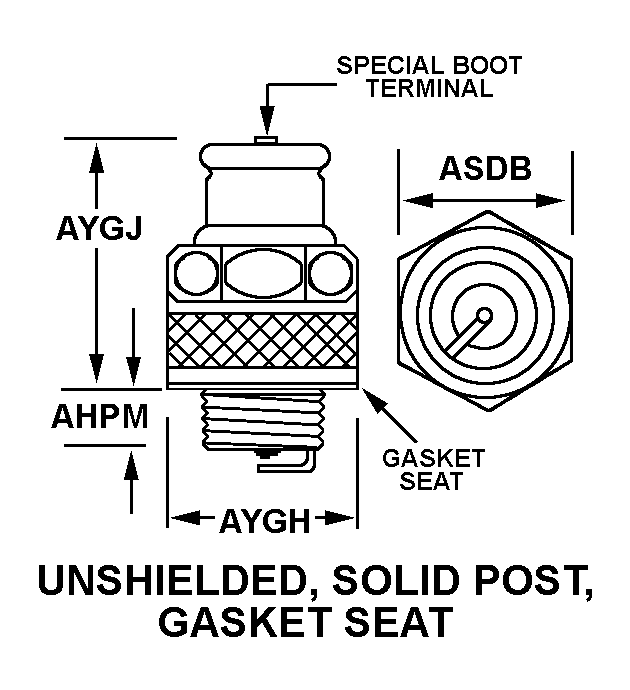

BODY STYLE A10 UNSHIELDED, SOLID POST, GASKET SEAT
REACH LENGTH 0.500 INCHES NOMINAL
WIDTH ACROSS FLATS 0.812 INCHES NOMINAL
SEAT MAJOR DIAMETER 14.0 MILLIMETERS NOMINAL

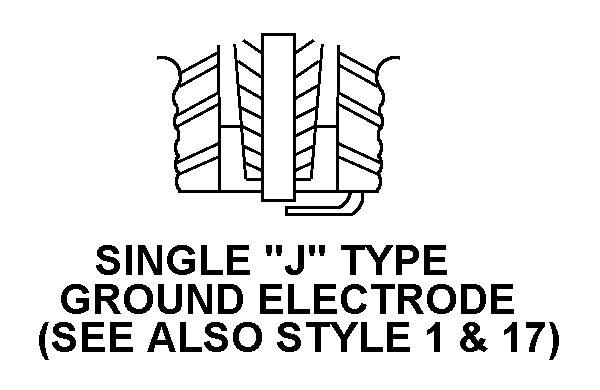

ELECTRODE STYLE B4 SINGLE J TYPE GROUND ELECTRODE
SPECIAL FEATURES HIGH PERFORMANCE, COPPER CORE
III PART NAME ASSIGNED BY CONTROLLING AGENCY CHMP HI HEAT, QL82C

Restrictions/Controls & Freight Information | NSN 2920-01-554-9024

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
