NSN 2920-01-554-0626 584600, 01-554-0626, 015540626
Product Details | IGNITION LOCK SWITCH
2920-01-554-0626 A switch which is externally actuated by a device such as a key/cylinder lock to actuate a remote lever or rod rack to activate a remote switch. The actuation device may or may not be an integal part of the switch. The primary purpose of the switch is to open and close the ignition circuit of an internal combustion engine and actuate various accessories. Excludes SWITCH, ENGINE STARTER, ELECTRICAL and SWITCH, LOCK.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: 584600, 2920-01-554-0626, 01-554-0626, 2920015540626, 015540626
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 27 JUL 2007 | 01-554-0626 | 00402 ( SWITCH, LOCK, IGNITION ) |

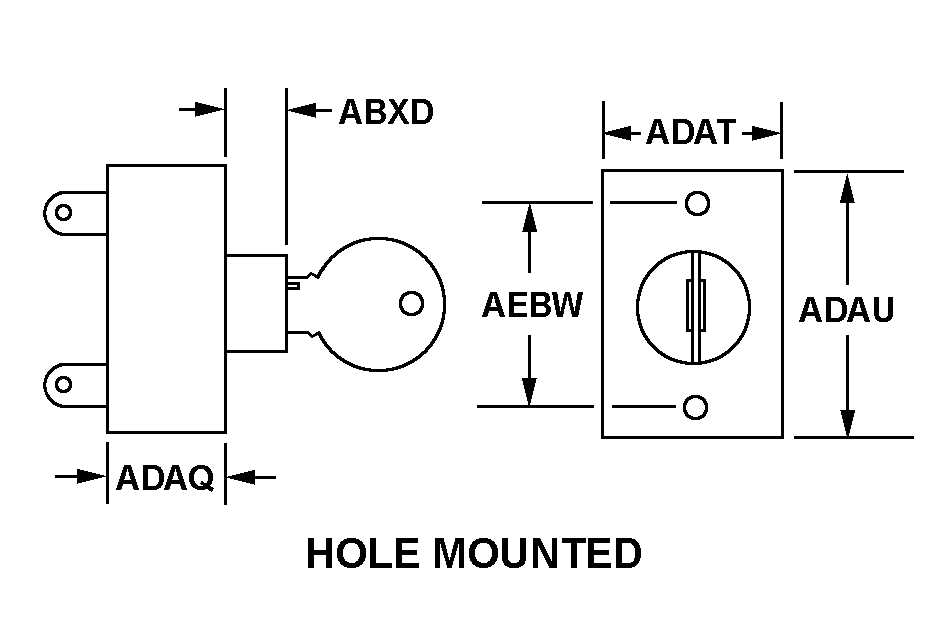

Drawings & Photos | NSN 2920-01-554-0626
Cross Reference | NSN 2920-01-554-0626
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 584600 | 1UVT5 | BRP US INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2920-01-554-0626
Technical Data | NSN 2920-01-554-0626
| Characteristic | Specifications |
|---|---|
| SWITCH FUNCTIONAL POSITIONS | MAGNETO |
| BODY STYLE | 6H HOLE MOUNTED |
| MOUNTING METHOD | UNTHREADED HOLE |
| SPECIAL FEATURES | MOUNTED IN AN UNTHREADED HOLE HELD IN PLACE WITH A JAM NUT |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SWITCH AND KEY ASSEMBLY |
Restrictions/Controls & Freight Information | NSN 2920-01-554-0626
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
