NSN 2920-01-357-4156 RV15YC6, 01-357-4156, 013574156
Product Details | SPARK PLUG
2920-01-357-4156 An item containing two or more electrodes across which an electric spark is discharged to ignite a fuel and air mixture, primarily in internal combustion engines. Excludes GLOW PLUG; and ELECTRODE.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: RV15YC6, 2920-01-357-4156, 01-357-4156, 2920013574156, 013574156
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 23 APR 1992 | 01-357-4156 | 00294 ( SPARK PLUG ) |
Drawings & Photos | NSN 2920-01-357-4156
Cross Reference | NSN 2920-01-357-4156
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RV15YC6 | 0B231 | CHAMPION AVIATION INC AUTOMOTIVE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2920-01-357-4156
Related Products | NSN 2920-01-357-4156
Technical Data | NSN 2920-01-357-4156
| Characteristic | Specifications |
|---|---|

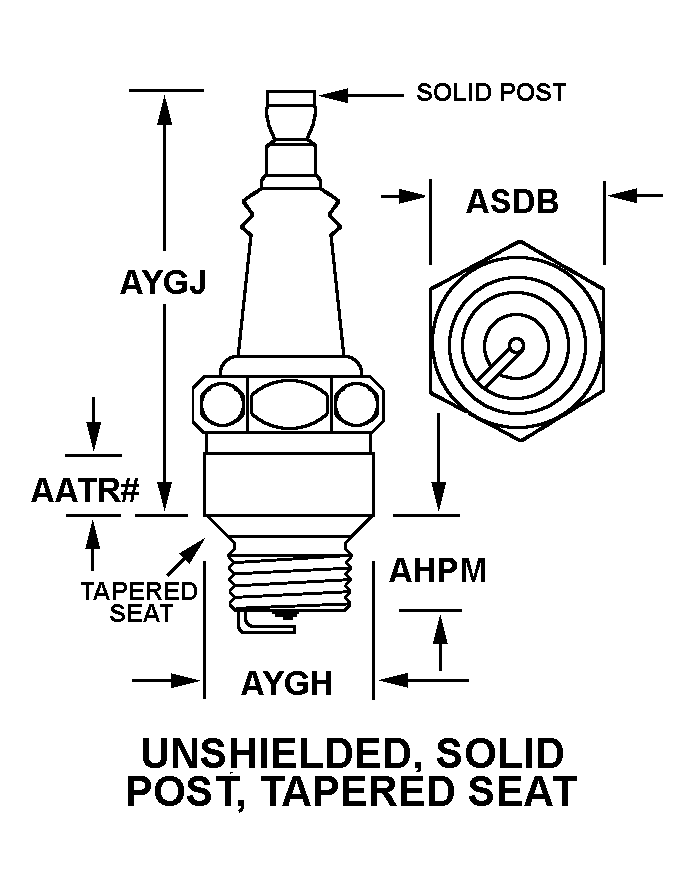

| BODY STYLE | A3 UNSHIELDED, SOLID POST, TAPERED SEAT |
| REACH LENGTH | 0.460 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.625 INCHES NOMINAL |
| SEAT MAJOR DIAMETER | 0.6250 INCHES MAXIMUM |
| HEIGHT ABOVE MOUNTING SURFACE | 2.030 INCHES NOMINAL |
| ELECTRODE STYLE | B18 SINGLE GROUND ELECTRODE |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR AND LOCATION | 14-1.25MM BASE |
| MEAN EFFECTIVE PRESSURE RATING | 190.0 POUNDS PER SQUARE INCH MINIMUM AND 240.0 POUNDS PER SQUARE INCH MAXIMUM |
| DC RESISTANCE RATING IN OHMS | 10000.0 NOMINAL |
| USAGE DESIGN | ENGINE OTHER THAN AIRCRAFT |
| SPECIAL FEATURES | COPPER PLUS DESIGN MEETS FEDERAL AND CALIFORNIA REG |
Restrictions/Controls & Freight Information | NSN 2920-01-357-4156
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177080 | SPARK PLUGS NOI IN BXS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 583 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2920-01-357-4156
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SU | SU:AF SICA RESIDUAL MMAC-OO-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
4 EA : Each |
