Product Details | MOTOR ARMATURE

2920-01-309-2076 An armature which is a part of a motor. See also ROTOR, MOTOR.20329200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving61050018Motors, Electrical

Part Alternates: 1704D95G01, 2920-01-309-2076, 01-309-2076, 2920013092076, 013092076

Engine Accessories | Engine Electrical System Components, Nonaircraft

Supply Group (FSG) NSN Assign. NIIN
29 13 OCT 1989 01-309-2076

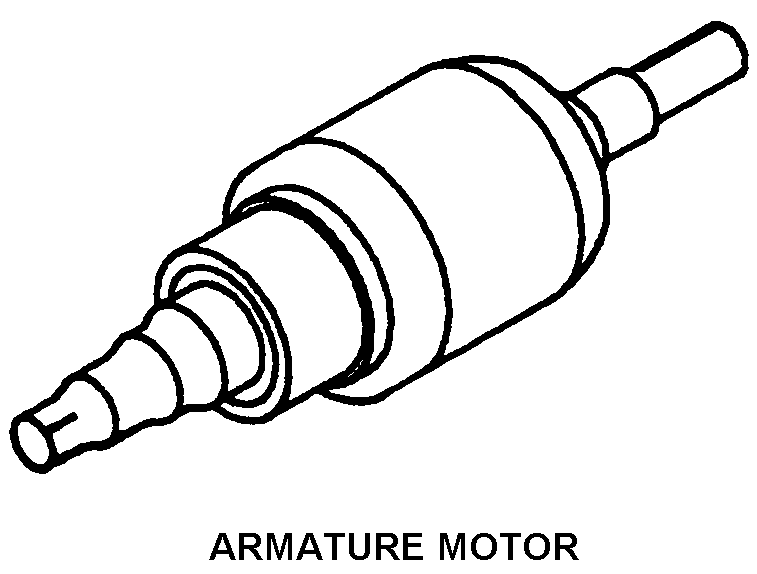

Drawings & Photos | NSN 2920-01-309-2076


Cross Reference | NSN 2920-01-309-2076

Part Number Cage Code Manufacturer
1704D95G01 11660 WESTINGHOUSE ELECTRIC CORP CONTROL BUSINESS UNIT

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2920-01-309-2076

Technical Data | NSN 2920-01-309-2076

Characteristic Specifications
CONSTRUCTION SLOT WOUND
STYLE DESIGNATOR A7 ARMATURE MOTOR
CURRENT TYPE DC
OVERALL LENGTH 135.000 INCHES NOMINAL
OVERALL DIAMETER 45.000 INCHES NOMINAL
SPECIAL FEATURES ONE END OF ARMATURE IS FLANGED HAVING 12 EACH 1-5/8 INCH BOLT HOLES ON A 16-3/4 INCH BOLT CIRCLE ALONG WITH 4 EACH 3/4 INCH HOLES ON A 18-1/2 INCH BOLT CIRCLE; OVERALL DIAMETER 20-3/16 INCHES; OVERALL WIDTH 3-1/2 INCHES; COUNTERBORE DIAMETER 7 INCHES; COUNTERBORE DEPTH 3/8 INCHES
III END ITEM IDENTIFICATION MAIN PROPULSION DC MOTOR PART NUMBER 1873B47H01 ONBOARD 140 FT COAST GUARD VESSELS
MANUFACTURERS CODE 11660
DESIGN CONTROL REFERENCE 1704D95G01
