NSN 2920-01-300-3737 N3019, R0015095RA, R0015095RB
Product Details | ENGINE GENERATOR REGULATOR
2920-01-300-3737 A regulator designed to automatically maintain the current and/or voltage output of an engine generator within specified limits, regardless of variation of load or input voltages. May include cutout relay. Does not include items in which regulation is accomplished by transformer action. See also REGULATOR, CURRENT and REGULATOR, VOLTAGE.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: N3019, R0015095RA, R0015095RB, R005095RC, REG4000, REG-4000, 12320971, 12358708, 5095R, 2920-01-300-3737, 01-300-3737, 2920013003737, 013003737
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 13 MAY 1989 | 01-300-3737 | 17169 ( REGULATOR, ENGINE GENERATOR ) |

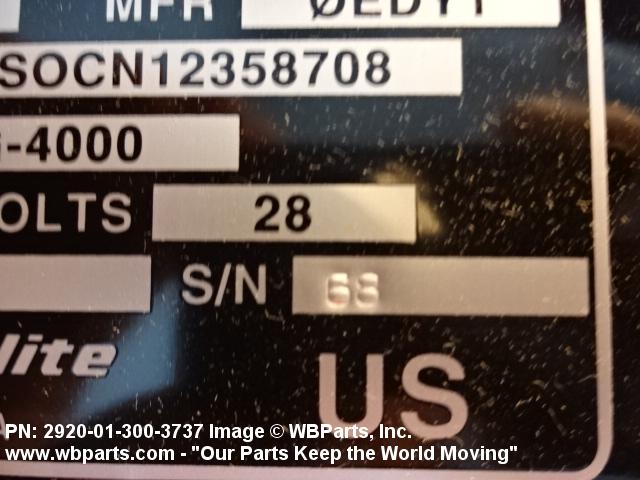

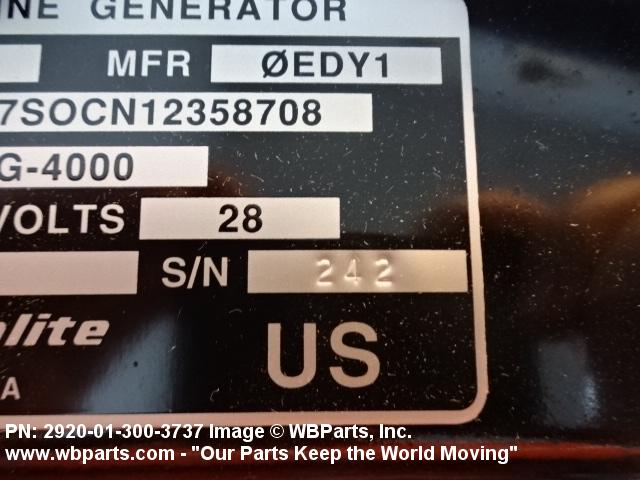

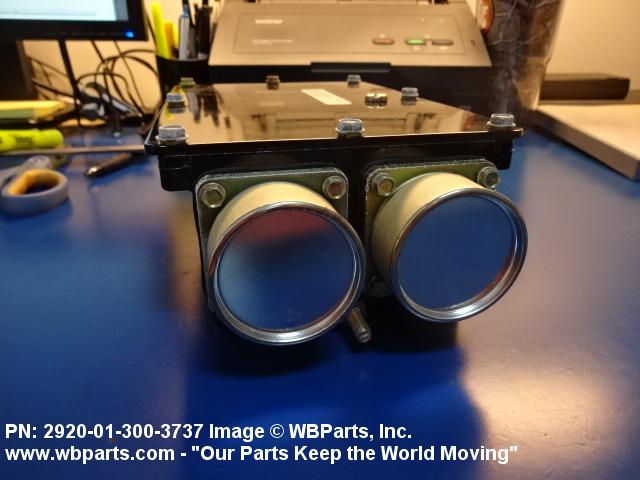

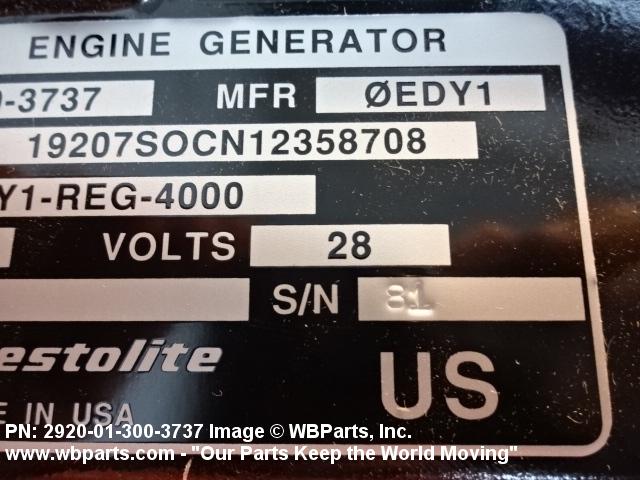

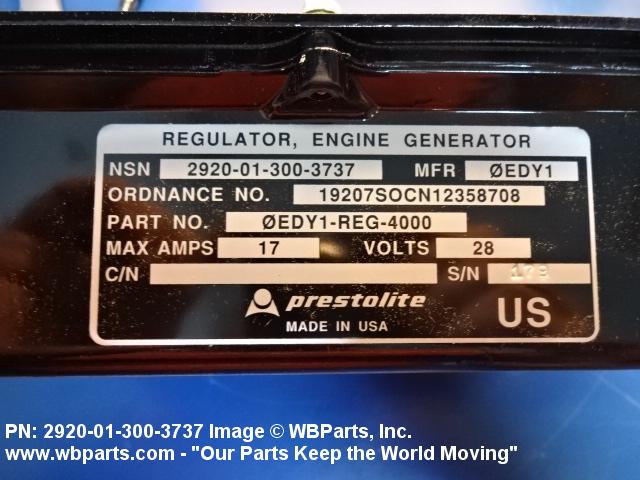

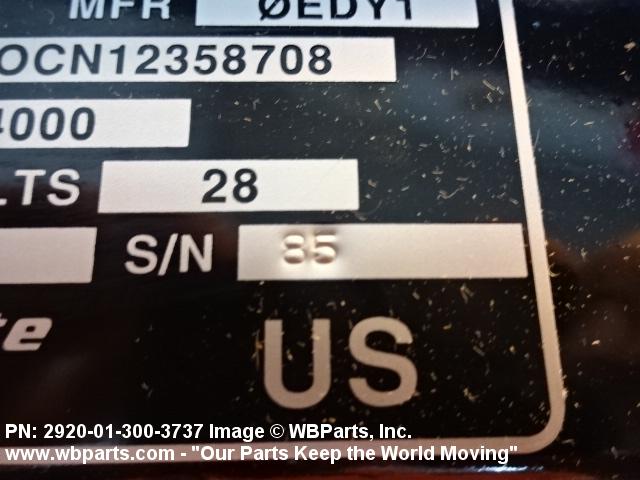

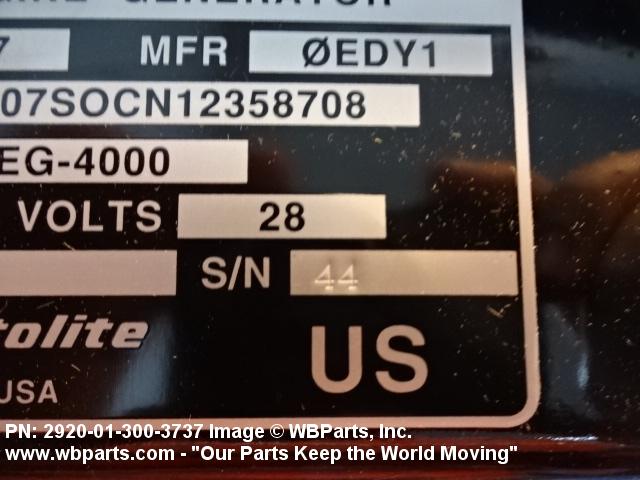

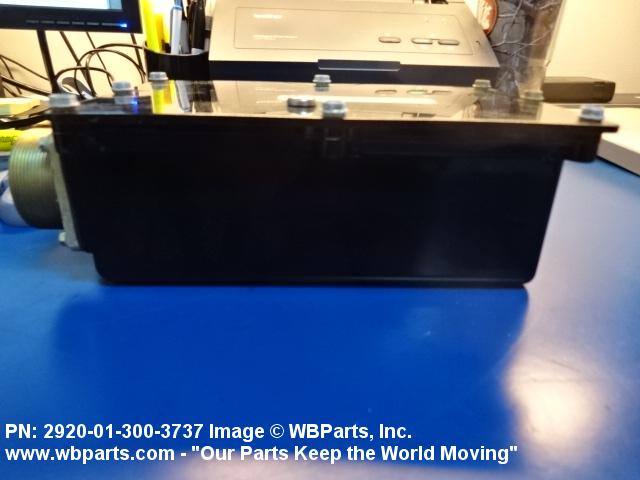

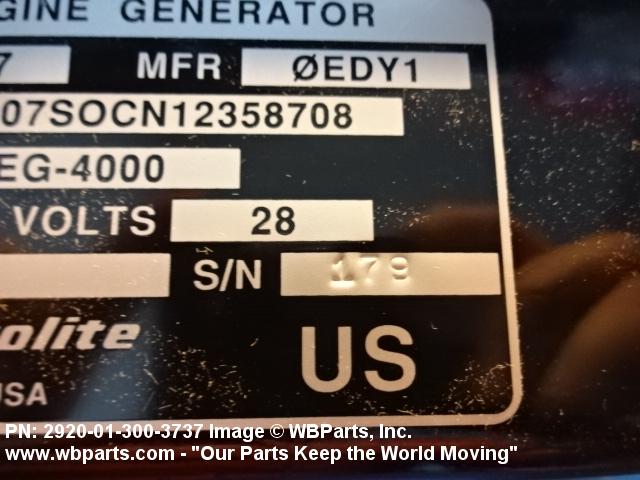

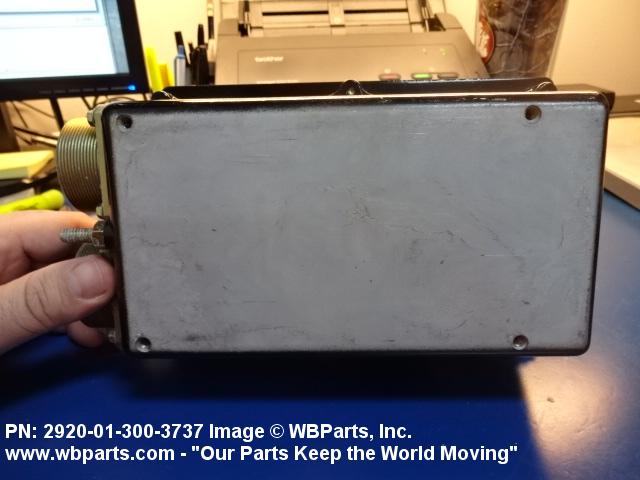

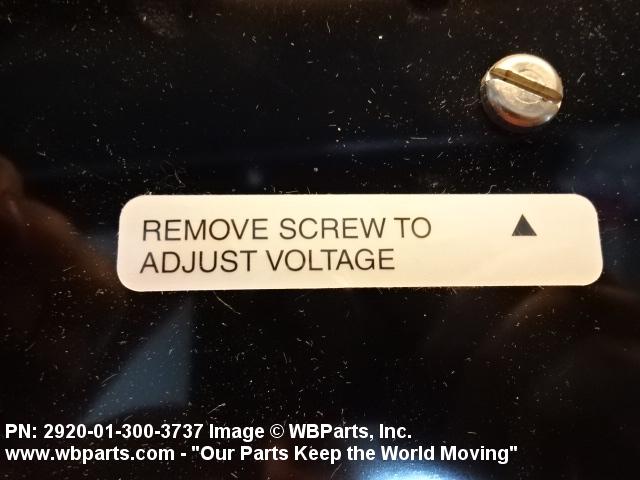

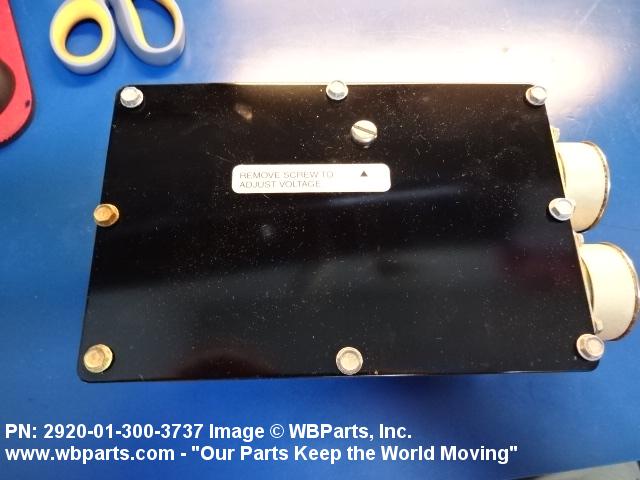

Drawings & Photos | NSN 2920-01-300-3737
Demand History | NSN 2920-01-300-3737
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2920-01-300-3737 | 2024-11-315 | 15 | us |
| 2920-01-300-3737 | 2024-05-138 | 4 | BR |
| 2920-01-300-3737 | 2024-05-137 | 2 | PT |
| 2920-01-300-3737 | 2023-06-167 | 1 | KW |
| 2920-01-300-3737 | 2022-11-326 | 3 | US |
| 2920-01-300-3737 | 2022-10-293 | 3 | AE |
| 2920-01-300-3737 | 2022-10-293 | 10 | AE |
| 2920-01-300-3737 | 2020-06-182 | 26 | Spain |
| N3019 | 2020-02-55 | 32 | DIBBS |
| N3019 | 2020-01-28 | 18 | DIBBS |
| 2920-01-300-3737 | 2019-06-165 | 1 | DIBBS-RFPs |
| 2920-01-300-3737 | 2019-04-99 | 1 | Brazil |
| 2920-01-300-3737 | 2018-04-96 | 15 | PK |
| 2920-01-300-3737 | 2017-09-270 | 10 | US |
| 2920-01-300-3737 | 2016-09-271 | 50 | Pakistan |
| 2920-01-300-3737 | 2016-09-259 | 50 | United States |
| 2920-01-300-3737 | 2016-05-144 | 50 | us |
| 2920-01-300-3737 | 2016-02-39 | 1 | US |
| 2920-01-300-3737 | 2015-08-243 | 10 | US |
| 2920-01-300-3737 | 2015-03-60 | 58 | DIBBS |
| 2920-01-300-3737 | 2015-02-36 | 64 | DIBBS |
| 2920-01-300-3737 | 2014-12-345 | 133 | DIBBS |
| 2920-01-300-3737 | 2014-11-322 | 2 | Chile |
| 2920-01-300-3737 | 2014-10-275 | 94 | DIBBS |
| 2920-01-300-3737 | 2014-08-218 | 30 | KR |
| 2920-01-300-3737 | 2014-07-197 | 81 | DIBBS |
| 2920-01-300-3737 | 2014-04-120 | 83 | DIBBS |
| 12358708 | 2013-08-231 | 5 | United States |
| 2920-01-300-3737 | 2013-07-193 | 1 | DIBBS-RFPs |
| 2920-01-300-3737 | 2011-02-57 | 50 | JO |
| 2920-01-300-3737 | 2011-02-57 | 50 | JO |
| 2920-01-300-3737 | 2011-01-25 | 1 | JO |
| 2920-01-300-3737 | 2008-09-254 | 21 | DIBBS |
| 2920-01-300-3737 | 2007-06-159 | 435 | DIBBS |
| 2920-01-300-3737 | 2007-05-143 | 158 | DIBBS |
| 2920-01-300-3737 | 2007-05-125 | 172 | DIBBS |
| 2920-01-300-3737 | 2006-06-167 | 267 | DIBBS |
Cross Reference | NSN 2920-01-300-3737
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12320971 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 12358708 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 5095R | 35510 | PRESTOLITE ELECTRIC INC |
| N3019 | 76761 | C. E. NIEHOFF & CO. |
| R0015095RA | 35510 | PRESTOLITE ELECTRIC INC |
| R0015095RB | 35510 | PRESTOLITE ELECTRIC INC |
| R005095RC | 35510 | PRESTOLITE ELECTRIC INC |
| REG-4000 | 24975 | PRESTOLITE ELECTRIC INCORPORATED |
| REG-4000 | 68505 | PRESTOLITE ELECTRIC INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2920-01-300-3737
Related Products | NSN 2920-01-300-3737
Technical Data | NSN 2920-01-300-3737
| Characteristic | Specifications |
|---|---|
| SYSTEM VOLTAGE RATING | 24.0 |
| SYSTEM GROUND POLARITY | NEGATIVE |
| VOLTAGE REGULATOR UNIT TYPE | WIRE WOUND COIL |
| VOLTAGE REGULATOR UNIT QUANTITY | 1 |
| OUTPUT VOLTAGE RATING IN VOLTS | 26.0 MINIMUM AND 30.0 MAXIMUM |
| CUT-IN VOLTAGE RATING | NOT RATED |
| CUTOUT VOLTAGE RATING | NOT RATED |
| CUTOUT CURRENT RATING IN AMPS | NOT RATED |
| REVERSE CURRENT OVERLOAD CIRCUIT BREAKER | NOT INCLUDED |
| FIELD RELAY UNIT | NOT INCLUDED |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND WATERTIGHT |
| RADIO INTERFERENCE SHIELDING | NOT PROVIDED |

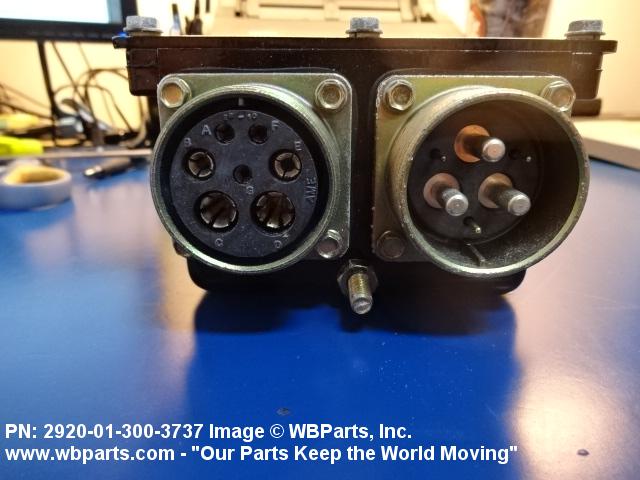

| TERMINAL TYPE | CONNECTOR, RECEPTACLE W/EXTERNAL CONTACTS |
| TERMINAL QUANTITY | 2 |
| TERMINAL ENCASEMENT | ENCASED |
| MOUNTING STYLE | 4 FOUR HOLE RECTANGULAR |
| MOUNTING HOLE DIAMETER | 0.190 INCHES NOMINAL |

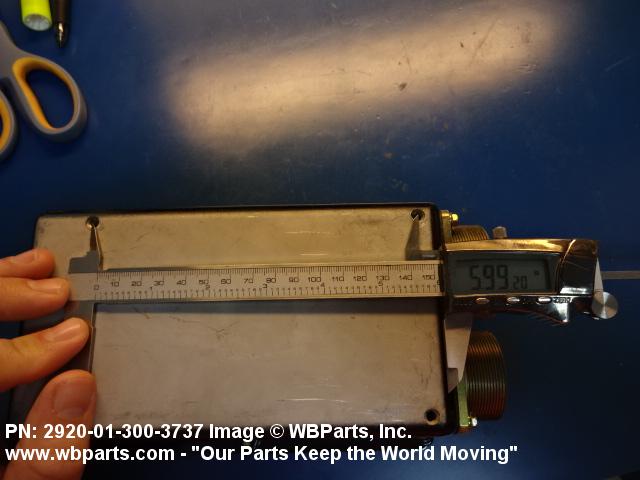

| DISTANCE BETWEEN HOLES ALONG LENGTH | 6.000 INCHES NOMINAL |

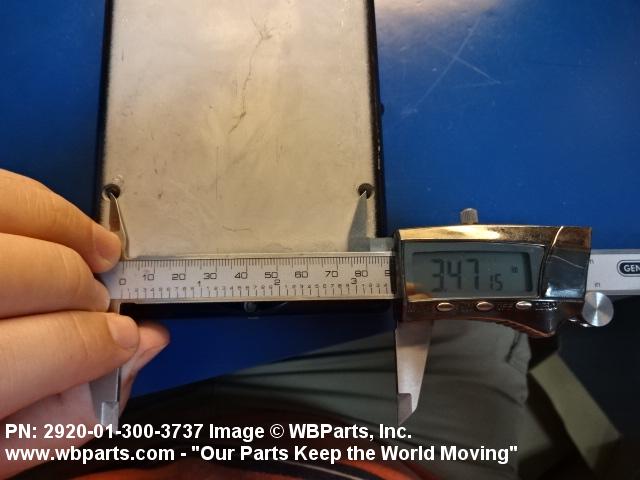

| DISTANCE BETWEEN HOLES ALONG WIDTH | 3.500 INCHES NOMINAL |
| SHOCK MOUNT | NOT PROVIDED |
| SPECIAL FEATURES | GROUND STRAP,NSN 6150-00-999-2100 IS REQUIRED AND MUST BE REQUISITIONED SEPARATELY |
| III END ITEM IDENTIFICATION | 2350-01-068-4077 |
| MANUFACTURERS CODE | 19207 |
| MFR SOURCE CONTROLLING REFERENCE | 12358708 |
Restrictions/Controls & Freight Information | NSN 2920-01-300-3737
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062900 | RECTIFIERS NOI/BATTERY ELIMINATORS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AZ | U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2920-01-300-3737
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SU | SU:AF SICA RESIDUAL MMAC-OO-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
