NSN 2920-01-284-2072 479.594, 479594, 9515100790
Product Details | GLOW PLUG
2920-01-284-2072 An item with a resistance type heating element for igniting fuel-air mixtures in ENGINE, DIESEL. Used for starting engines only. Excludes SPARK PLUG.
Part Alternates: 479.594, 479594, 9515100790, 9-515-100790, 2920-01-284-2072, 01-284-2072, 2920012842072, 012842072
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 19 AUG 1988 | 01-284-2072 | 17310 ( GLOW PLUG ) |
Drawings & Photos | NSN 2920-01-284-2072
Demand History | NSN 2920-01-284-2072
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2920-01-284-2072 | 2011-04-91 | 3 | DIBBS |
| 2920-01-284-2072 | 2011-02-46 | 3 | DIBBS |
| 2920-01-284-2072 | 2010-07-187 | 3 | DIBBS |
| 2920-01-284-2072 | 2009-07-196 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2920-01-284-2072
Related Products | NSN 2920-01-284-2072
Technical Data | NSN 2920-01-284-2072
| Characteristic | Specifications |
|---|---|

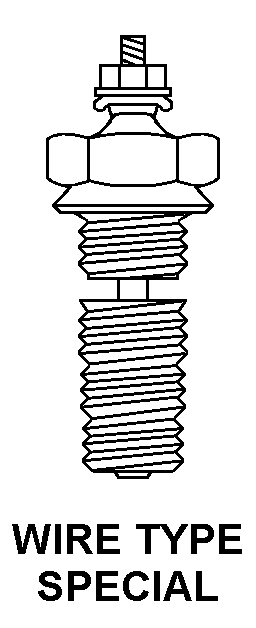

| BODY STYLE | A16 WIRE TYPE SPECIAL |
| MOUNTING FACILITY NOMINAL THREAD SIZE | 1.1 MILLIMETERS |
| DISTANCE ACROSS WRENCHING SURFACE FLATS | 0.750 INCHES |
| OPERATING VOLTAGE IN VOLTS | 12.0 NOMINAL |
| CURRENT RATING IN AMPS | 20.0 |
| IMMERSION LENGTH | 20.0 MILLIMETERS NOMINAL |
| OVERALL LENGTH | 64.5 MILLIMETERS NOMINAL |
| SPECIAL FEATURES | APPL AS IGNITER FOR COMBUSTION HEATER |
| III END ITEM IDENTIFICATION | HEATER; GROVE MFG CO,P/N 7-515-000116 AND 7-576-000534 |
Restrictions/Controls & Freight Information | NSN 2920-01-284-2072
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 108525 | KITS /SYSTEMS DIESEL ENGINE START |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2920-01-284-2072
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SU | SU:AF SICA RESIDUAL MMAC-OO-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
