NSN 2920-01-165-4369 AL138H, C1408, KS6614

Product Details | IGNITION LOCK SWITCH

2920-01-165-4369 A switch which is externally actuated by a device such as a key/cylinder lock to actuate a remote lever or rod rack to activate a remote switch. The actuation device may or may not be an integal part of the switch. The primary purpose of the switch is to open and close the ignition circuit of an internal combustion engine and actuate various accessories. Excludes SWITCH, ENGINE STARTER, ELECTRICAL and SWITCH, LOCK.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving

Part Alternates: AL138H, C1408, KS6614, US92, 1972672, 3747192, 2920-01-165-4369, 01-165-4369, 2920011654369, 011654369

Engine Accessories | Engine Electrical System Components, Nonaircraft

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
29	28 OCT 1983	01-165-4369	00402 ( SWITCH, LOCK, IGNITION )

Drawings & Photos | NSN 2920-01-165-4369

Part Number	Request Date	QTY	Origin	SBA
C1408	2015-12-362	20	us

Cross Reference | NSN 2920-01-165-4369

Part Number	Cage Code	Manufacturer
1972672	16764	GENERAL MOTORS CORP DELCO REMY DIV
1972672	1LW55	REMY, INC.
3747192	12204	DAIMLER CHRYSLER
3747192	86403	CHRYSLER CORP SERVICE AND PARTS OPNS
AL138H	66614	TRW INC REPLACEMENT PARTS DIV
AL138H	76761	C. E. NIEHOFF & CO.
C1408	16764	GENERAL MOTORS CORP DELCO REMY DIV
C1408	1LW55	REMY, INC.
KS6614	19239	ECHLIN INC
US92	78174	STANDARD MOTOR PRODUCTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 2920-01-165-4369

Compare

Related Products | NSN 2920-01-165-4369

2920-01-165-4601, 2920-01-165-4613, 2920-01-165-4773, 2920-01-165-4774, 2920-01-165-4779

Technical Data | NSN 2920-01-165-4369

Characteristic	Specifications

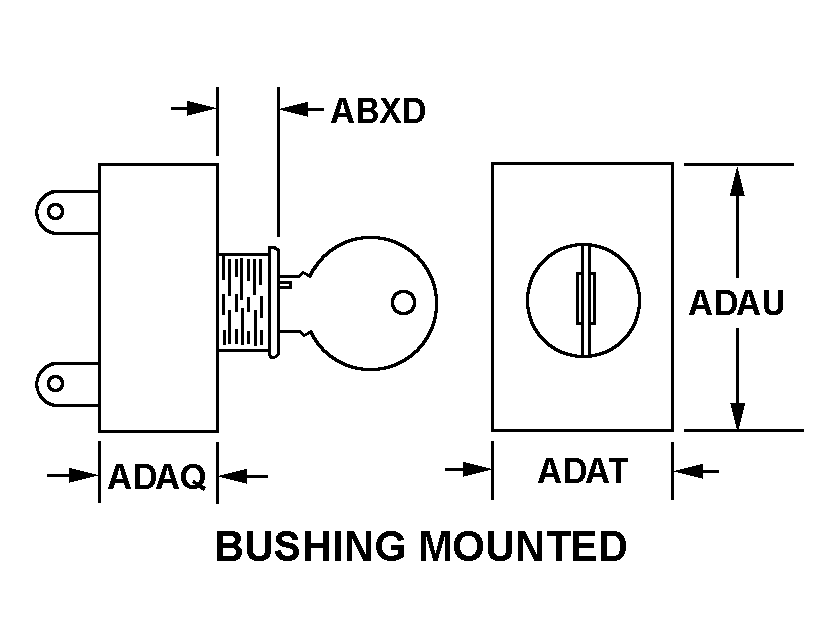

BODY STYLE	5H BUSHING MOUNTED
III END ITEM IDENTIFICATION	CHRYSLER CO 1978-79 LIGHT DUTY TRUCKS

Restrictions/Controls & Freight Information | NSN 2920-01-165-4369

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	AX	Defense Supply Center Columbus Columbus, OH 43216-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 2920-01-165-4369

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SU	SU:AF SICA RESIDUAL MMAC-OO-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
