NSN 2920-01-134-8842 N13261, N1326-1, 5428647
Product Details | ENGINE ACCESSORY GENERATOR
2920-01-134-8842 A generator primarily designed to be mounted on an internal combustion engine, and to be driven by the engine to keep the battery in a charged condition. May also supply current for the engine ignition system and/or electrical equipment which is connected to the battery circuit. Includes alternating current generators designed for use with a rectifier. Excludes the major generator of "GENERATING SETS". For generators specifically designed for aircraft use and not mounted on the engine, see GENERATOR, DIRECT CURRENT.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: N13261, N1326-1, 5428647, 2589900, 2920-01-134-8842, 01-134-8842, 2920011348842, 011348842
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 13 JUL 1982 | 01-134-8842 | 17311 ( GENERATOR, ENGINE ACCESSORY ) |
Drawings & Photos | NSN 2920-01-134-8842
Demand History | NSN 2920-01-134-8842
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2920-01-134-8842 | 2019-01-28 | 2 | Thailand |
| 2920-01-134-8842 | 2018-08-236 | 1 | KR |
| 2920-01-134-8842 | 2015-05-138 | 6 | DIBBS |
| 2920-01-134-8842 | 2015-05-127 | 6 | DIBBS |
| 2920-01-134-8842 | 2006-07-205 | 40 | DIBBS |
| 2920-01-134-8842 | 2006-03-82 | 42 | DIBBS |
| 2920-01-134-8842 | 2006-02-41 | 17 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2920-01-134-8842
Technical Data | NSN 2920-01-134-8842
| Characteristic | Specifications |
|---|---|
| VOLTAGE IN VOLTS | 28.0 |
| MAXIMUM OUTPUT CURRENT RATING IN AMPS | 300.0 |
| MAXIMUM RATED ARMATURE SPEED IN RPM | 8000 |
| RECTIFIER LOCATION | SEPARATE |
| SHAFT ROTATION DIRECTION | CLOCKWISE |
| MOUNTING STYLE | 9 FLANGE MTD W/THREE MTG HOLES |
| PILOT DIAMETER | ANY ACCEPTABLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 7.000 INCHES NOMINAL |
| PILOT HEIGHT | ANY ACCEPTABLE |
| DISTANCE BETWEEN SHAFT CENTER AND BOTTOM MOUNTING HOLE CENTER | 4.690 INCHES NOMINAL |
| TOP MOUNTING HOLE DIAMETER | 0.377 INCHES MINIMUM AND 0.406 INCHES MAXIMUM |
| BOTTOM MOUNTING HOLE DIAMETER | 0.505 INCHES MINIMUM AND 0.535 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN TOP MOUNTING SLOT AND BOTTOM MOUNTING HOLE | ANY ACCEPTABLE |

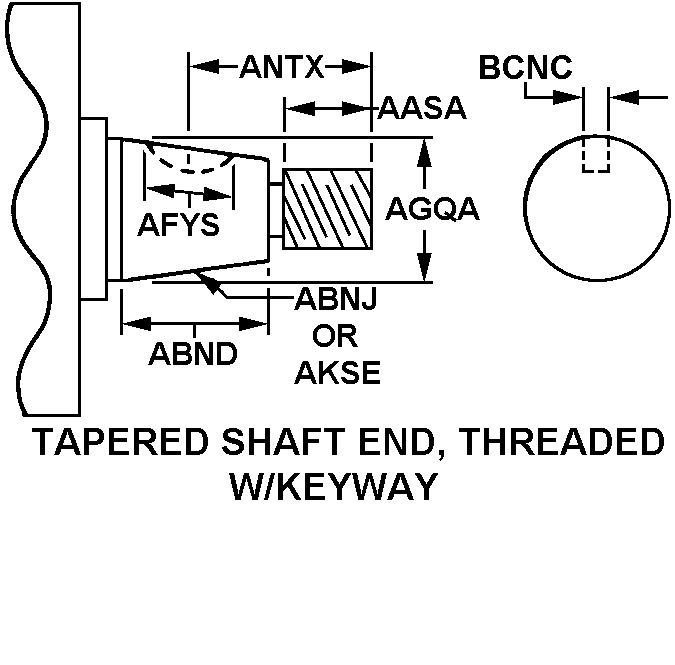

| SHAFT DRIVE END STYLE | 6 TAPERED SHAFT END, THREADED W/KEYWAY |
| THREAD LENGTH | 1.330 INCHES NOMINAL |
| TAPER LENGTH | 1.250 INCHES NOMINAL |
| KEYWAY WIDTH | 0.248 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| KEYWAY LENGTH | ANY ACCEPTABLE |
| LARGEST DIAMETER | 1.181 INCHES NOMINAL |
| DISTANCE FROM END TO KEYWAY CENTER | 2.455 INCHES NOMINAL |
| TAPER PER FOOT IN INCHES | 1.500 |
| THREAD SERIES | UNS |
| THREAD DIAMETER | 1.000 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 14 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| FURNISHED ITEMS | BUSHING PACKAGE AND COOLING FAN AND NUT AND VOLTAGE REGULATOR |
Restrictions/Controls & Freight Information | NSN 2920-01-134-8842
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI SUB3 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 590 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2920-01-134-8842
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
