NSN 2920-01-026-2317 L59724, 8SA3008P, 10126
Product Details | ENGINE ACCESSORY GENERATOR
2920-01-026-2317 A generator primarily designed to be mounted on an internal combustion engine, and to be driven by the engine to keep the battery in a charged condition. May also supply current for the engine ignition system and/or electrical equipment which is connected to the battery circuit. Includes alternating current generators designed for use with a rectifier. Excludes the major generator of "GENERATING SETS". For generators specifically designed for aircraft use and not mounted on the engine, see GENERATOR, DIRECT CURRENT.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: L59724, 8SA3008P, 10126, 10-126, 2920-01-026-2317, 01-026-2317, 2920010262317, 010262317
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 19 AUG 1976 | 01-026-2317 | 17311 ( GENERATOR, ENGINE ACCESSORY ) |

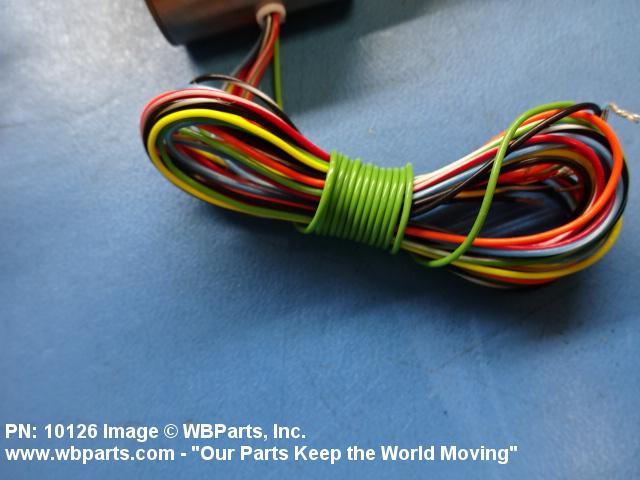

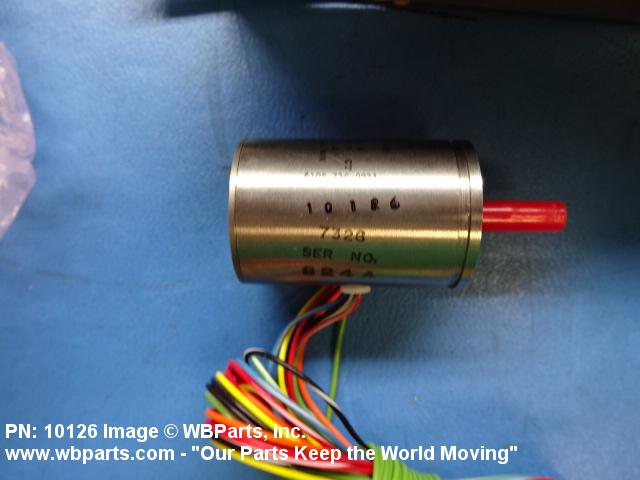

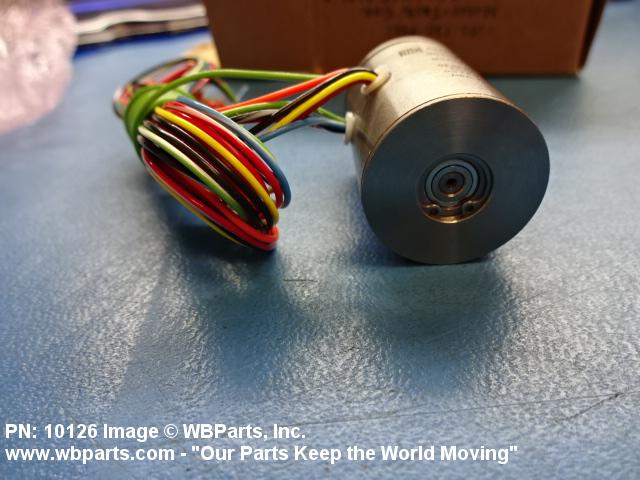

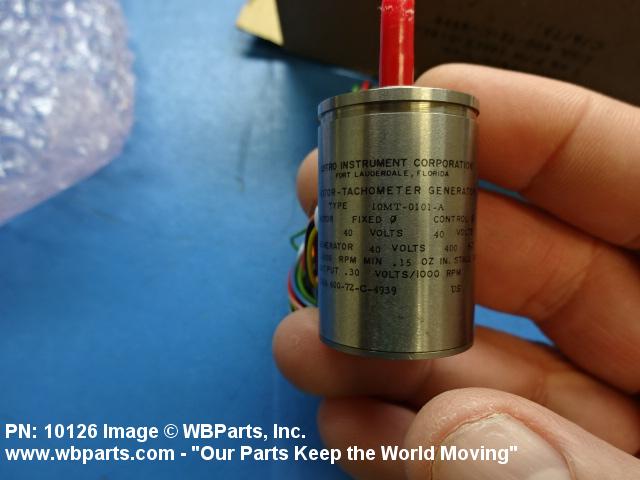

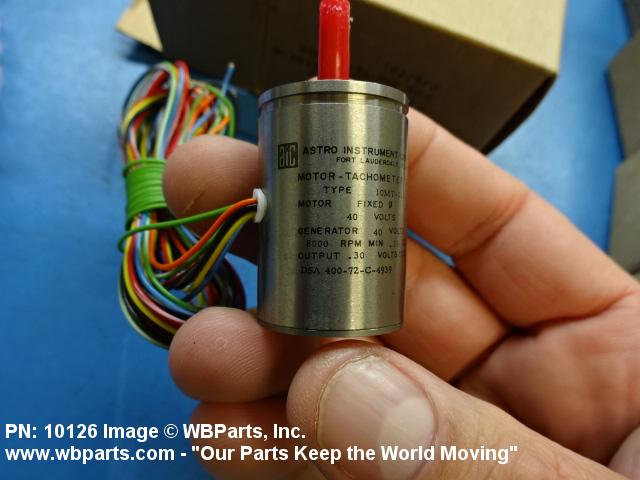

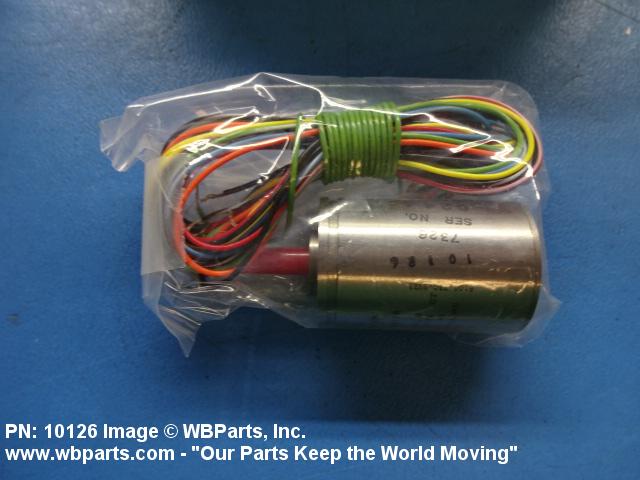

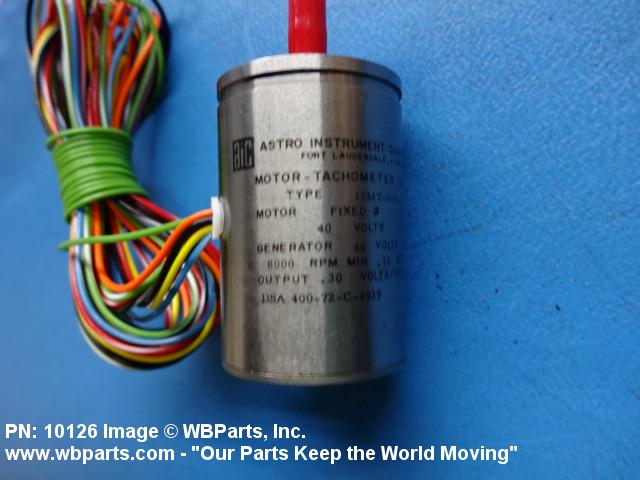

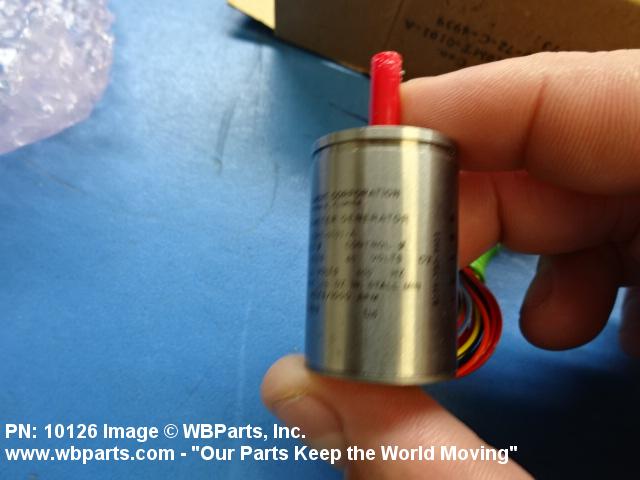

Drawings & Photos | NSN 2920-01-026-2317
Demand History | NSN 2920-01-026-2317
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10126 | 2024-06-157 | 14 | United States |
| 10126 | 2022-08-223 | 22 | US |
| 10126 | 2020-04-105 | 10 | CA |
| 10126 | 2020-04-98 | 10 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2920-01-026-2317
Technical Data | NSN 2920-01-026-2317
| Characteristic | Specifications |
|---|---|
| VOLTAGE IN VOLTS | 24.0 |
| RECTIFIER LOCATION | INTEGRAL |
| GROUND POLARITY TYPE | NEGATIVE OR POSITIVE |
| SHAFT ROTATION DIRECTION | CLOCKWISE |

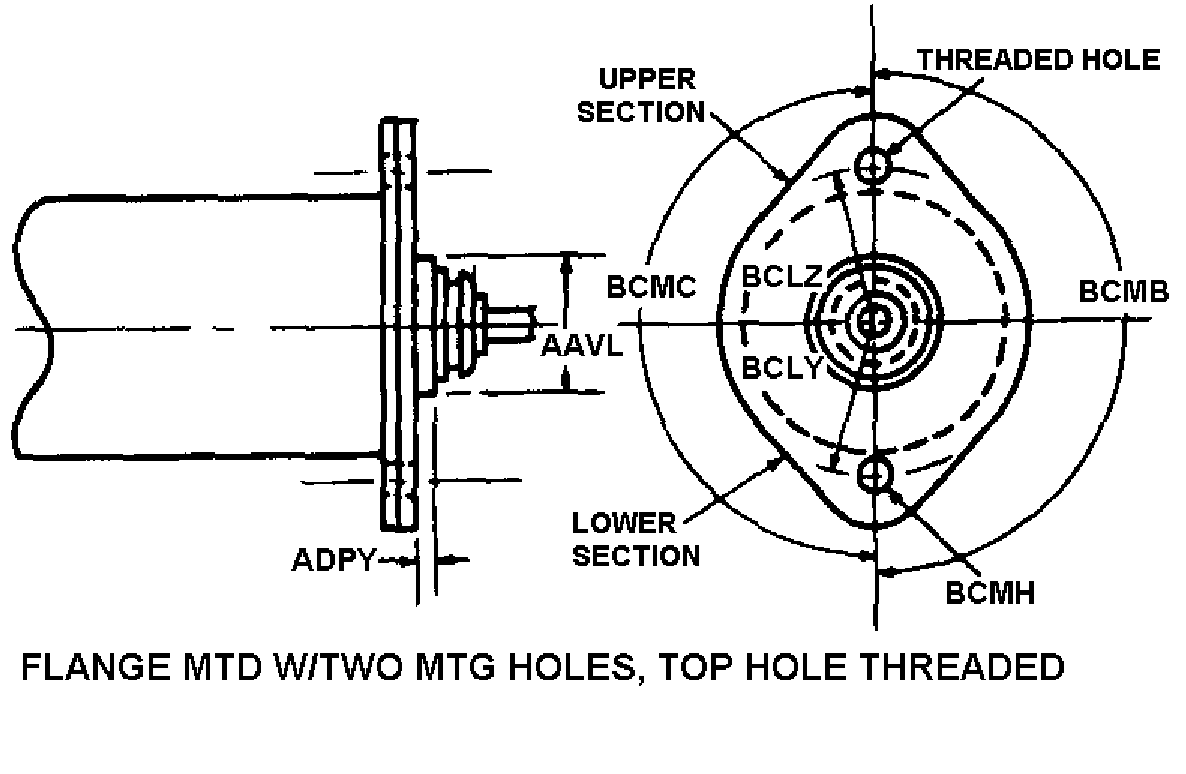

| MOUNTING STYLE | 19 FLANGE MTD W/TWO MTG HOLES, TOP HOLE THREADED |
| PILOT DIAMETER | 6.540 INCHES NOMINAL |
| PILOT HEIGHT | 0.750 INCHES NOMINAL |
| DISTANCE BETWEEN SHAFT CENTER AND BOTTOM MOUNTING HOLE CENTER | 4.000 INCHES NOMINAL |
| DISTANCE BETWEEN SHAFT CENTER AND TOP MOUNTING HOLE CENTER | 4.240 INCHES NOMINAL |
| BOTTOM MOUNTING HOLE DIAMETER | 0.500 INCHES NOMINAL |
| ANGULAR DEVIATION OF FIRST HOLE FROM TOP CENTER IN DEG | 180.0 |
| ANGULAR DEVIATION OF SECOND HOLE FROM FIRST HOLE IN DEG | 180.0 |
| MOUNTING HOLE THREAD SERIES DESIGNATOR | UNC |
| MOUNTING HOLE THREAD DIAMETER | 0.375 INCHES NOMINAL |
| MOUNTING HOLE THREAD QUANTITY PER INCH | 16 |
| MOUNTING HOLE THREAD CLASS | 2B |
| MOUNTING HOLE THREAD DIRECTION | RIGHT-HAND |
| SHAFT DRIVE END STYLE | 1 STRAIGHT SHAFT END, THREADED, W/KEYWAY |
| THREAD LENGTH | 0.880 INCHES NOMINAL |
| SECOND STEP DIAMETER | 0.875 INCHES NOMINAL |
| KEYWAY WIDTH | 0.159 INCHES NOMINAL |
| UNTHREADED PORTION LENGTH | 1.150 INCHES NOMINAL |
| KEYWAY LENGTH | ANY ACCEPTABLE |
| DISTANCE FROM END TO KEYWAY CENTER | ANY ACCEPTABLE |
| THREAD SERIES | UNF |
| THREAD DIAMETER | 0.625 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| SUBMERSIBILITY | NONSUBMERSIBLE |
Restrictions/Controls & Freight Information | NSN 2920-01-026-2317
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 590 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2920-01-026-2317
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
