NSN 2920-00-963-3168 1978IN, 19-7-8IN, 00-963-3168
Product Details | SPARK PLUG
2920-00-963-3168 An item containing two or more electrodes across which an electric spark is discharged to ignite a fuel and air mixture, primarily in internal combustion engines. Excludes GLOW PLUG; and ELECTRODE.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: 1978IN, 19-7-8IN, 2920-00-963-3168, 00-963-3168, 2920009633168, 009633168
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1962 | 00-963-3168 | 00294 ( SPARK PLUG ) |
Drawings & Photos | NSN 2920-00-963-3168
Cross Reference | NSN 2920-00-963-3168
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 19-7-8IN | 78589 | STITT SPARK PLUG CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2920-00-963-3168
Technical Data | NSN 2920-00-963-3168
| Characteristic | Specifications |
|---|---|
| BODY STYLE | A2 UNSHIELDED, THREADED POST, GASKET SEAT |
| REACH LENGTH | 1.250 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 1.125 INCHES NOMINAL |
| SEAT MAJOR DIAMETER | 1.090 INCHES NOMINAL |
| HEIGHT ABOVE MOUNTING SURFACE | ANY ACCEPTABLE |

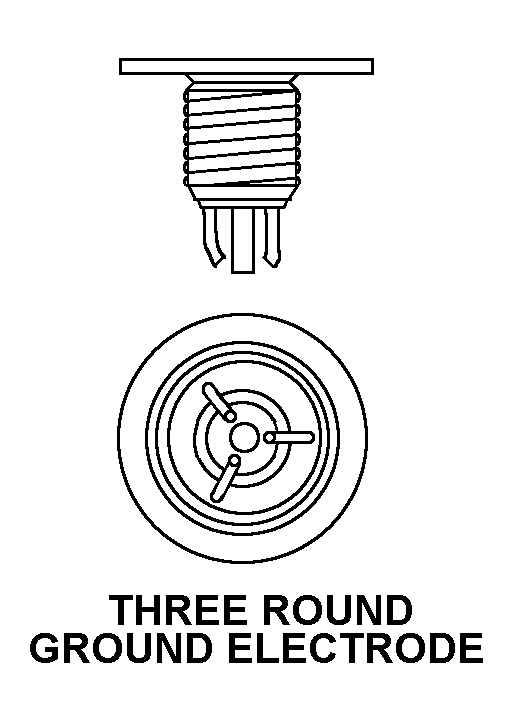

| ELECTRODE STYLE | B15 THREE ROUND GROUND ELECTRODE |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR AND LOCATION | 7/8-18 UNS BASE |
| MEAN EFFECTIVE PRESSURE RATING | 100.0 POUNDS PER SQUARE INCH NOMINAL |
| USAGE DESIGN | ENGINE OTHER THAN AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 2920-00-963-3168
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
