NSN 2920-00-905-0605 1118434, 5912, 00-905-0605
Product Details | ENGINE GENERATOR REGULATOR
2920-00-905-0605 A regulator designed to automatically maintain the current and/or voltage output of an engine generator within specified limits, regardless of variation of load or input voltages. May include cutout relay. Does not include items in which regulation is accomplished by transformer action. See also REGULATOR, CURRENT and REGULATOR, VOLTAGE.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: 1118434, 5912, 2920-00-905-0605, 00-905-0605, 2920009050605, 009050605
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1960 | 00-905-0605 | 17169 ( REGULATOR, ENGINE GENERATOR ) |
Drawings & Photos | NSN 2920-00-905-0605
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2920-00-905-0605
Related Products | NSN 2920-00-905-0605
Technical Data | NSN 2920-00-905-0605
| Characteristic | Specifications |
|---|---|
| SYSTEM VOLTAGE RATING | 6.0 |
| SYSTEM GROUND POLARITY | NEGATIVE POSITIVE |
| VOLTAGE REGULATOR UNIT TYPE | WIRE WOUND COIL |
| VOLTAGE REGULATOR UNIT QUANTITY | 1 |
| OUTPUT VOLTAGE RATING IN VOLTS | 6.9 MINIMUM 7.5 MAXIMUM |
| CIRCUIT CONTROL DEVICE TYPE | CUTOUT RELAY |
| CUT-IN VOLTAGE RATING | 6.0 MINIMUM 7.1 MAXIMUM |
| CUTOUT VOLTAGE RATING | NOT RATED |
| CUTOUT CURRENT RATING IN AMPS | NOT RATED |
| REVERSE CURRENT OVERLOAD CIRCUIT BREAKER | NOT INCLUDED |
| FIELD RELAY UNIT | NOT INCLUDED |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT FUNGUS RESISTANT |
| RADIO INTERFERENCE SHIELDING | NOT PROVIDED |
| TERMINAL TYPE | SCREW |
| TERMINAL QUANTITY | 3 |
| TERMINAL ENCASEMENT | NOT ENCASED |

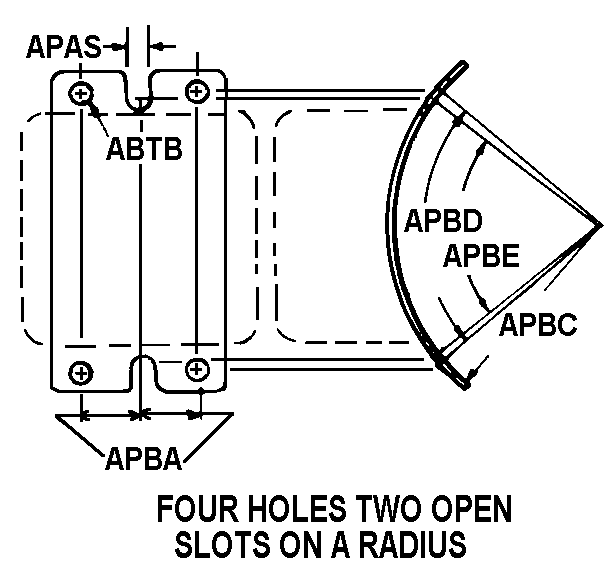

| MOUNTING STYLE | 7 FOUR HOLES TWO OPEN SLOTS ON A RADIUS |
| MOUNTING HOLE DIAMETER | 0.225 INCHES MINIMUM 0.230 INCHES MAXIMUM |
| OPEN SLOT WIDTH | 0.220 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOLE AND OPEN SLOT ALONG WIDTH | 1.000 INCHES NOMINAL |
| MOUNTING FACILITY RADIUS | 2.220 INCHES NOMINAL |
| ANGLE BETWEEN PLAIN HOLES IN DEG | 100.0 |
| ANGLE BETWEEN OPEN SLOTS IN DEG | 90.0 |
| SHOCK MOUNT | NOT PROVIDED |
| MANUFACTURERS CODE | 16764 |
| DESIGN CONTROL REFERENCE | 1118434 |
Restrictions/Controls & Freight Information | NSN 2920-00-905-0605
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062920 | REGULATORS INDUCTION/VOLTAGE |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2920-00-905-0605
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | C | Construction MaterielDefense Supply Center Columbus (DSCC) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | F | Reparable item. When uneconomically reparable, condemn and dispose at the third echelon level. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
