Product Details | ELECTRICAL ENGINE STARTER RELAY-SOLENOID

2920-00-605-4934 An item having a moving plunger type core which travels parallel to the longitudinal axis of the coil(s), and which is primarily designed to perform the dual function of closing the circuit of a STARTER, ENGINE, ELECTRICAL and actuating the starter engaging mechanism. It must have provisions for attaching the mechanical linkage for actuating the engaging mechanism if the linkage is not included. May have provisions for manual actuation. Without contacts this item is known as a SOLENOID, ELECTRICAL. Without provisions for attaching mechanical linkage this item is known as a RELAY, ELECTROMAGNETIC. See also SWITCH, ENGINE STARTER, ELECTRICAL.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving

Part Alternates: DMS 84098B, DMS84098B, 1630660, 2920-00-605-4934, 00-605-4934, 2920006054934, 006054934

Engine Accessories | Engine Electrical System Components, Nonaircraft

Supply Group (FSG) NSN Assign. NIIN
29 01 JAN 1961 00-605-4934

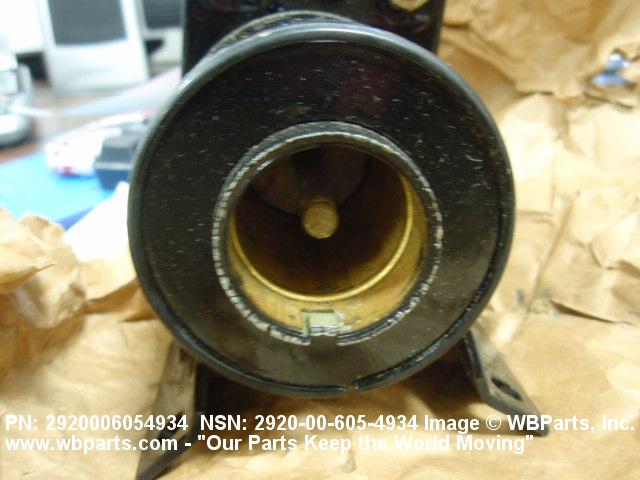

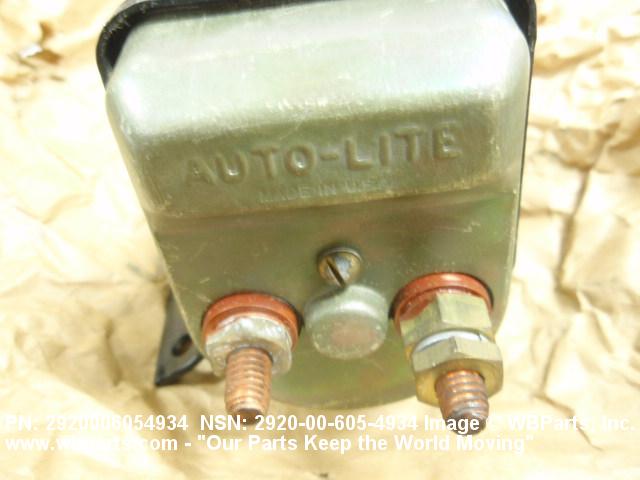

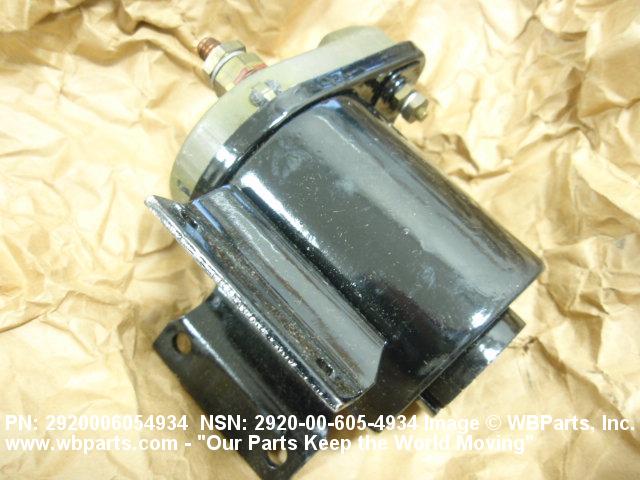

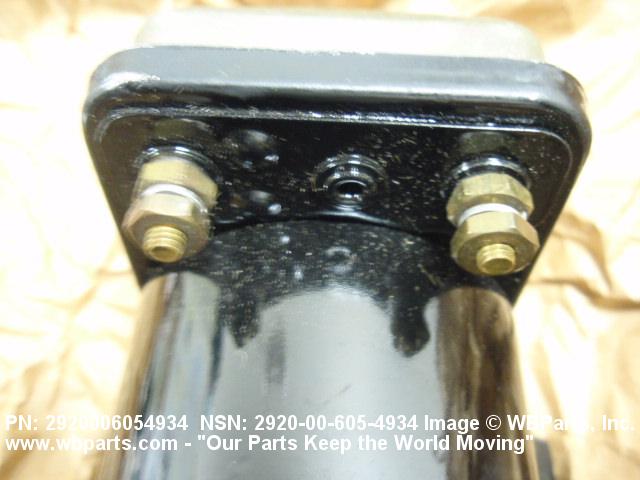

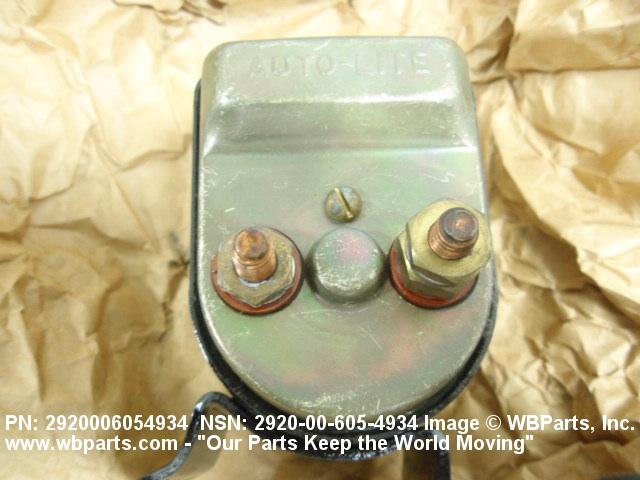

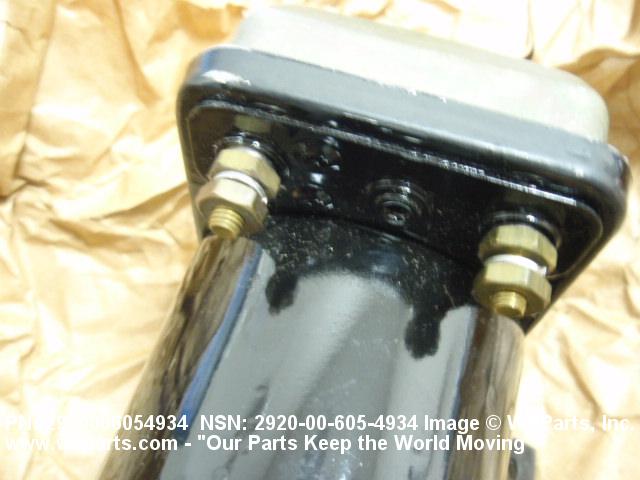

Drawings & Photos | NSN 2920-00-605-4934


Demand History | NSN 2920-00-605-4934

Part Number Request Date QTY Origin
1630660 2015-12-356 10 US
1630660 2015-04-99 10 CN
2920-00-605-4934 2015-04-99 10 MANUAL
2920-00-605-4934 2014-04-118 5 US
1630660 2013-04-94 1 us
1630660 2012-09-268 35 us
2920-00-605-4934 2012-09-268 35 Malaysia
1630660 2012-09-254 35 us
2920-00-605-4934 2012-09-253 35 Malaysia
2920-00-605-4934 2010-10-285 1 United States
2920-00-605-4934 2009-12-337 3 Singapore
2920-00-605-4934 2009-04-94 3 Singapore

Cross Reference | NSN 2920-00-605-4934

Part Number Cage Code Manufacturer
1630660 12204 DAIMLER CHRYSLER
DMS 84098B 16236 DLA LAND AND MARITIME

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2920-00-605-4934

Technical Data | NSN 2920-00-605-4934

Characteristic Specifications
NOMINAL VOLTAGE RATING 24.0 VOLTS
MAIN TERMINAL QUANTITY 2
MAIN TERMINAL TYPE THREADED STUD
MOUNTING FACILITY TYPE AND QUANTITY 2 SLOT AND 2 HOLE
MOUNTING HOLE DIAMETER 0.281 INCHES NOMINAL
MOUNTING SLOT LENGTH 0.312 INCHES NOMINAL
MOUNTING SLOT WIDTH 0.250 INCHES NOMINAL
MOUNTING FACILITY SPACING SLOTS AND HOLES SPACED 1.750 IN. C TO C PARALLEL TO LENGTH
SUBMERSIBILITY NONSUBMERSIBLE

Restrictions/Controls & Freight Information | NSN 2920-00-605-4934

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 061300 CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 658 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 2920-00-605-4934

Category Code Description
Materiel Category and Inventory ManagerJ Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9GNavy-owned stocks of defense general material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
