NSN 2920-00-314-0556 A0015320G12P, A0015320GP, 33259
Product Details | ENGINE ACCESSORY GENERATOR
2920-00-314-0556 A generator primarily designed to be mounted on an internal combustion engine, and to be driven by the engine to keep the battery in a charged condition. May also supply current for the engine ignition system and/or electrical equipment which is connected to the battery circuit. Includes alternating current generators designed for use with a rectifier. Excludes the major generator of "GENERATING SETS". For generators specifically designed for aircraft use and not mounted on the engine, see GENERATOR, DIRECT CURRENT.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: A0015320G12P, A0015320GP, 33259, 5320GP, 8376691, 136595, 2920-00-314-0556, 00-314-0556, 2920003140556, 003140556
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-314-0556 | 17311 ( GENERATOR, ENGINE ACCESSORY ) |

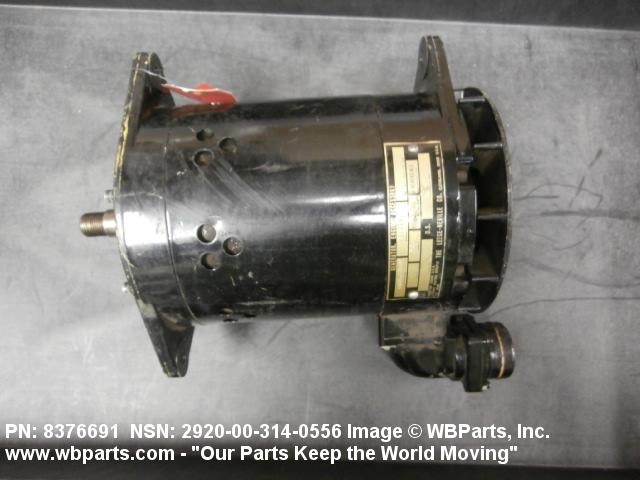

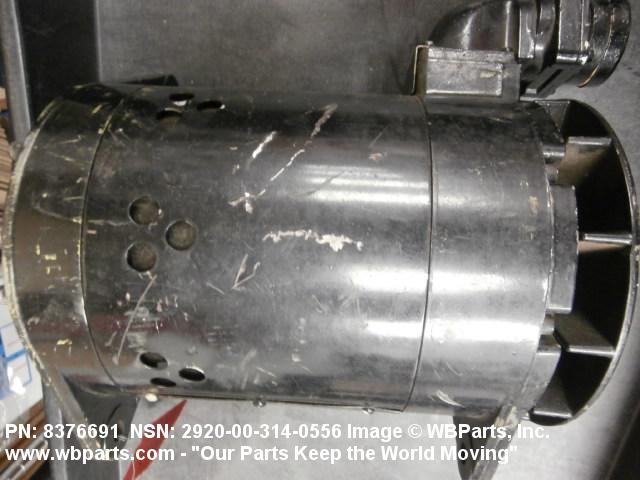

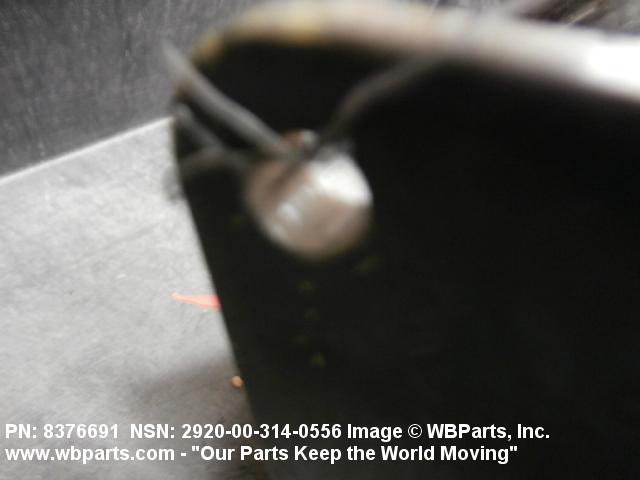

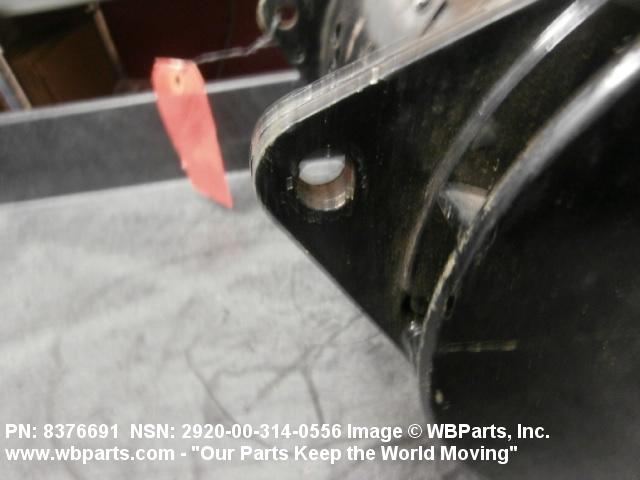

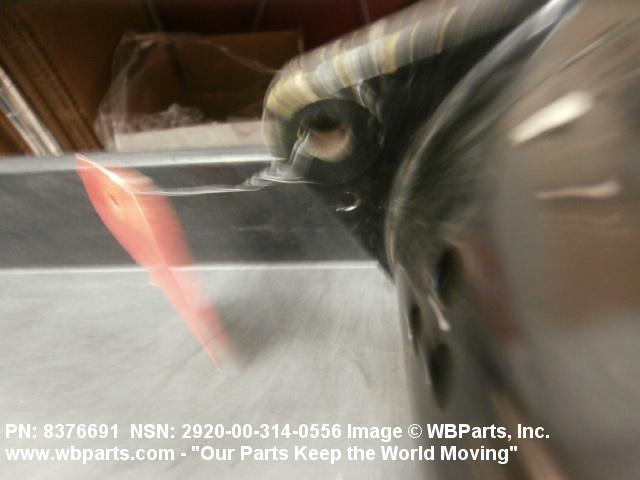

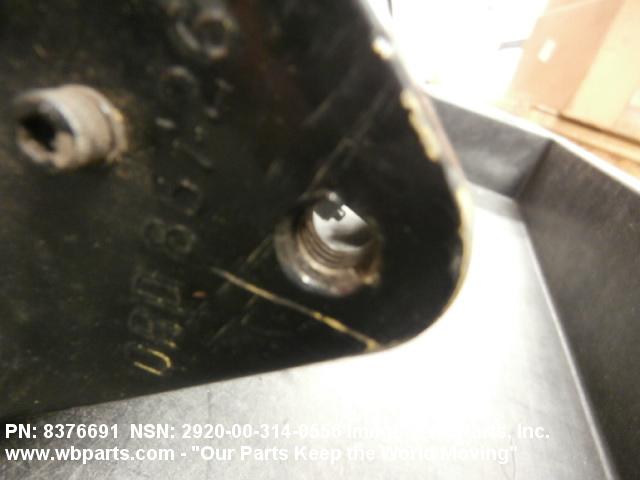

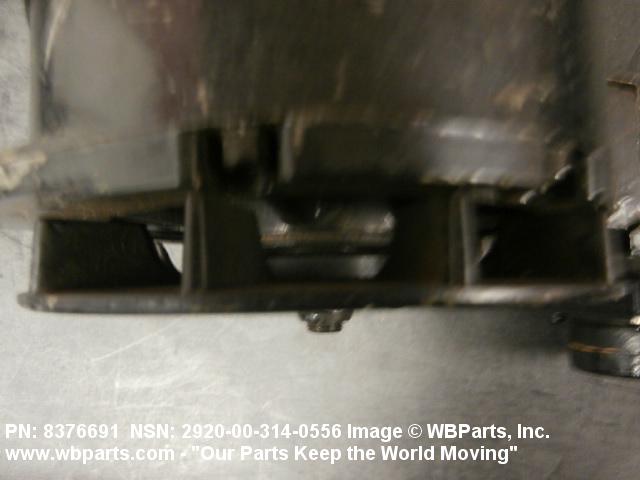

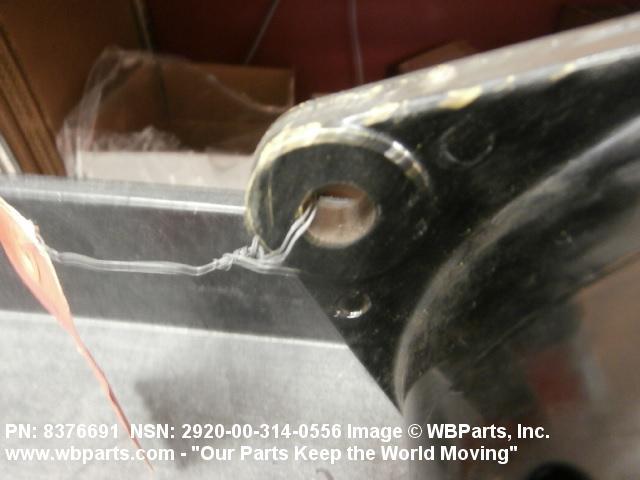

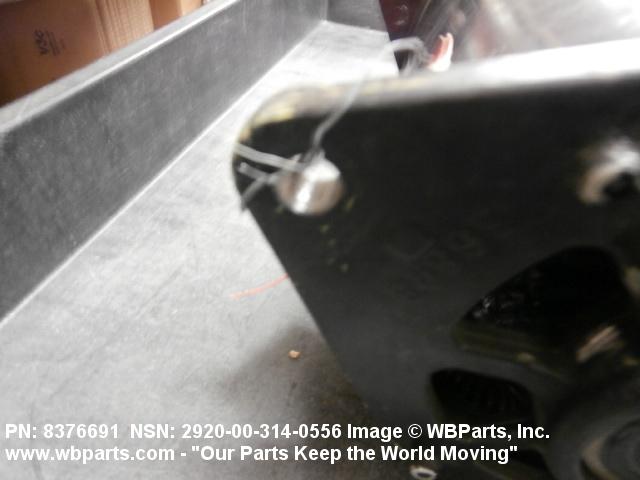

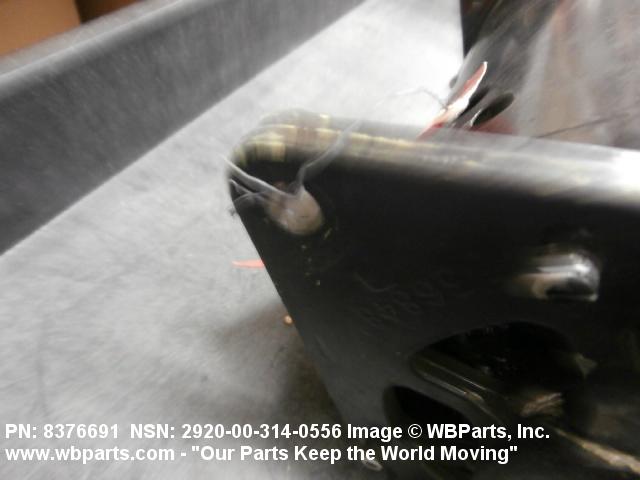

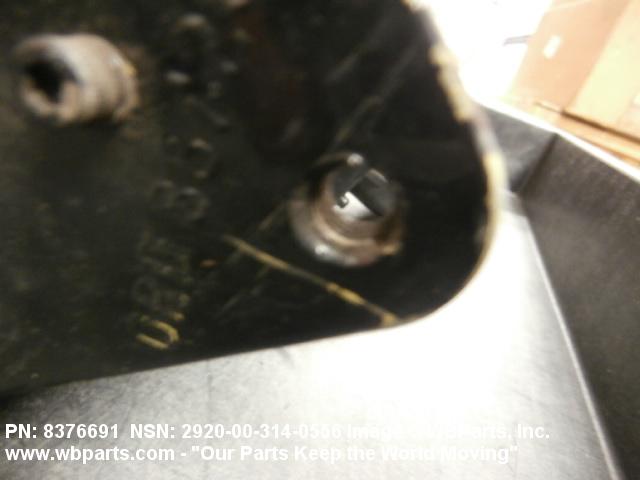

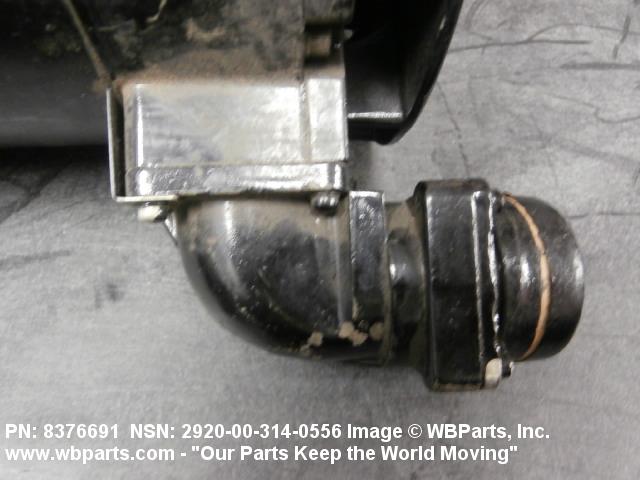

Drawings & Photos | NSN 2920-00-314-0556
Demand History | NSN 2920-00-314-0556
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2920-00-314-0556 | 2016-04-115 | 1 | United States |
Cross Reference | NSN 2920-00-314-0556
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 136595 | 15434 | CUMMINS INC. |
| 33259 | 24975 | PRESTOLITE ELECTRIC INCORPORATED |
| 33259 | 35510 | PRESTOLITE ELECTRIC INC |
| 5320GP | 24975 | PRESTOLITE ELECTRIC INCORPORATED |
| 5320GP | 35510 | PRESTOLITE ELECTRIC INC |
| 8376691 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| A0015320G12P | 35510 | PRESTOLITE ELECTRIC INC |
| A0015320GP | 35510 | PRESTOLITE ELECTRIC INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2920-00-314-0556
Technical Data | NSN 2920-00-314-0556
| Characteristic | Specifications |
|---|---|
| VOLTAGE IN VOLTS | 28.0 |
| MAXIMUM OUTPUT CURRENT RATING IN AMPS | 100.0 |
| MAXIMUM RATED ARMATURE SPEED IN RPM | 8000 |
| ARMATURE MINIMUM SPEED IN RPM AT FULL CURRENT OUTPUT | 1650 |
| MINIMUM CURRENT CUT-IN SPEED IN RPM | 1600 |
| RECTIFIER LOCATION | INTEGRAL |
| GROUNDING METHOD | INTERNAL |
| GROUND POLARITY TYPE | NEGATIVE |
| SHAFT ROTATION DIRECTION | CLOCKWISE |
| MOUNTING STYLE | 15 BRACKET MTD W/THREE MTG HOLES, TOP HOLE THREADED |
| DISTANCE BETWEEN SHAFT CENTER AND BOTTOM MOUNTING HOLE CENTER | 4.125 INCHES NOMINAL |
| DISTANCE BETWEEN SHAFT CENTER AND TOP MOUNTING HOLE CENTER | 3.851 INCHES NOMINAL |
| BOTTOM MOUNTING HOLE DIAMETER | 1.125 INCHES NOMINAL |
| ANGULAR DEVIATION OF FIRST HOLE FROM TOP CENTER IN DEG | 21.0 |
| ANGULAR DEVIATION OF SECOND HOLE FROM FIRST HOLE IN DEG | 159.0 |
| MOUNTING HOLE THREAD SERIES DESIGNATOR | UNC |
| MOUNTING HOLE THREAD DIAMETER | 0.375 INCHES NOMINAL |
| MOUNTING HOLE THREAD QUANTITY PER INCH | 16 |
| MOUNTING HOLE THREAD CLASS | 2B |
| MOUNTING HOLE THREAD DIRECTION | RIGHT-HAND |
| SHAFT DRIVE END STYLE | 2 STRAIGHT SHAFT END W/KEYWAY |
| KEYWAY WIDTH | 0.250 INCHES NOMINAL |
| KEYWAY LENGTH | 1.000 INCHES NOMINAL |
| SUBMERSIBILITY | SUBMERSIBLE |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT |
Restrictions/Controls & Freight Information | NSN 2920-00-314-0556
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 590 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
