NSN 2920-00-302-6499 MS138041, MS13804-1, GKG4802ST
Product Details | ENGINE ACCESSORY GENERATOR
2920-00-302-6499 A generator primarily designed to be mounted on an internal combustion engine, and to be driven by the engine to keep the battery in a charged condition. May also supply current for the engine ignition system and/or electrical equipment which is connected to the battery circuit. Includes alternating current generators designed for use with a rectifier. Excludes the major generator of "GENERATING SETS". For generators specifically designed for aircraft use and not mounted on the engine, see GENERATOR, DIRECT CURRENT.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: MS138041, MS13804-1, GKG4802ST, MILG12604, 1117478, 2920-00-302-6499, 00-302-6499, 2920003026499, 003026499
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-302-6499 | 17311 ( GENERATOR, ENGINE ACCESSORY ) |

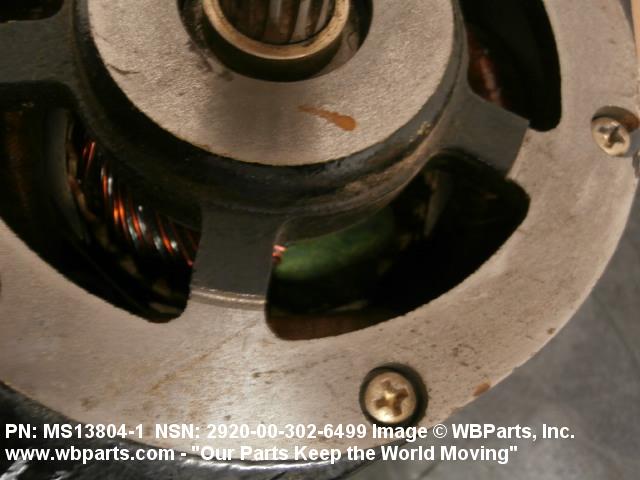

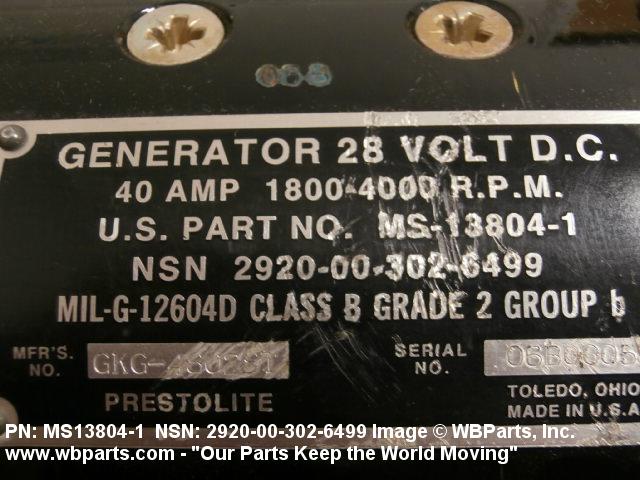

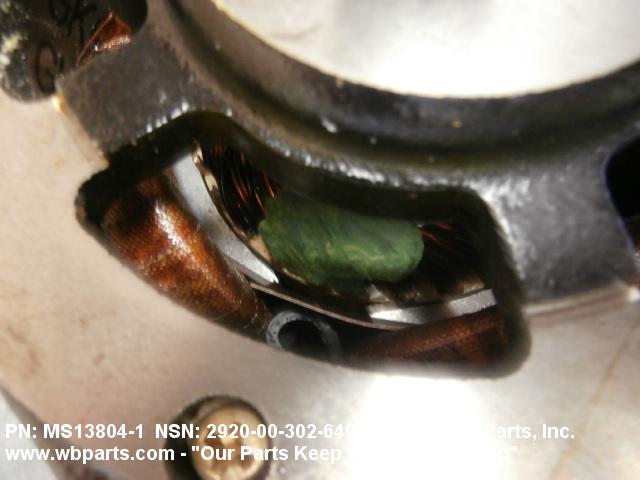

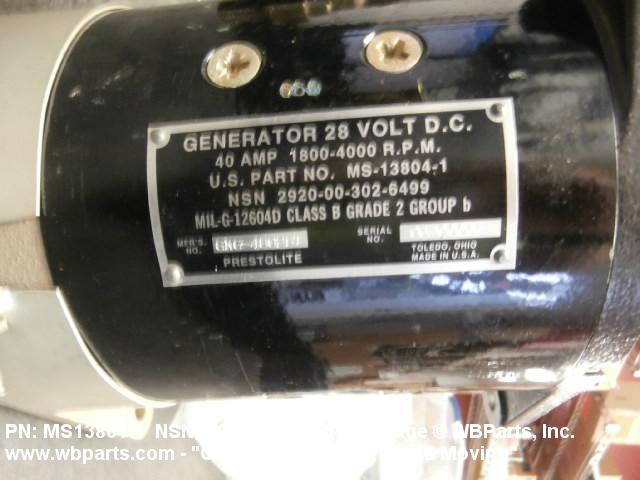

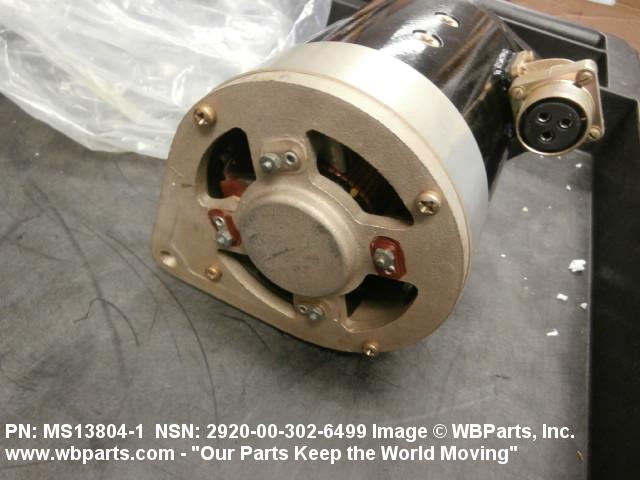

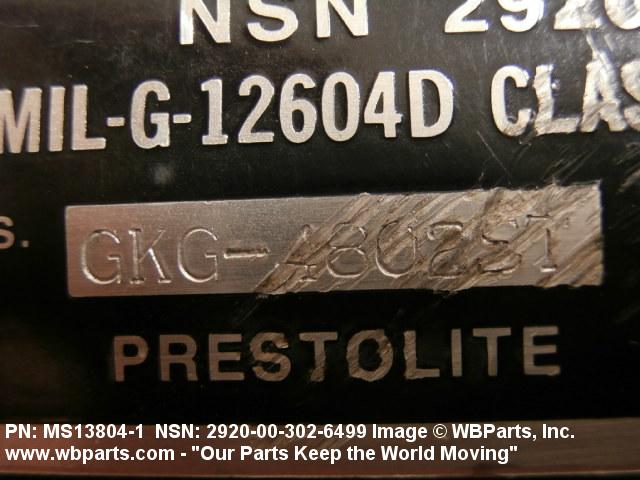

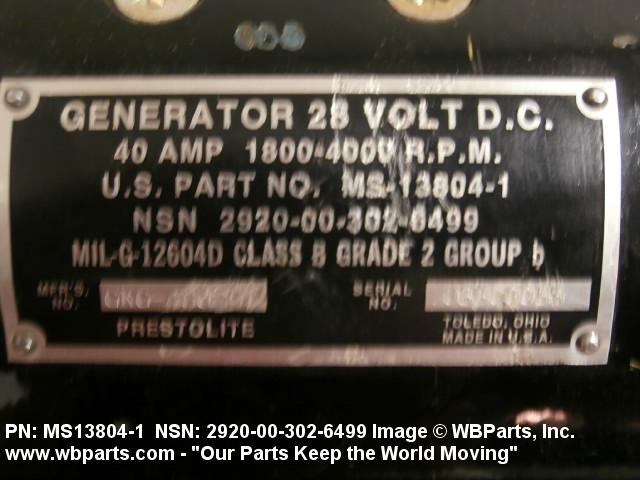

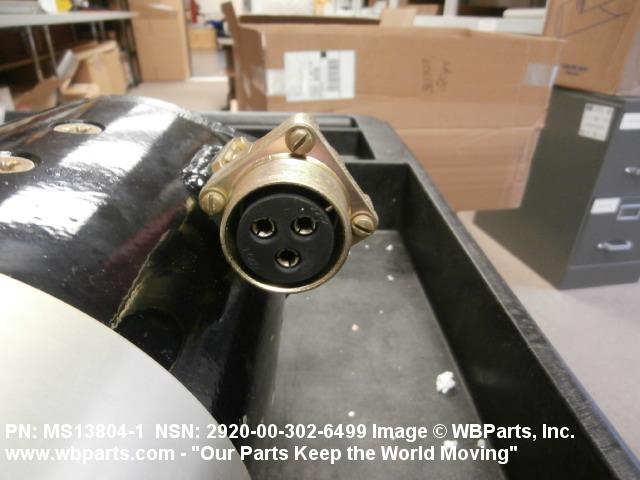

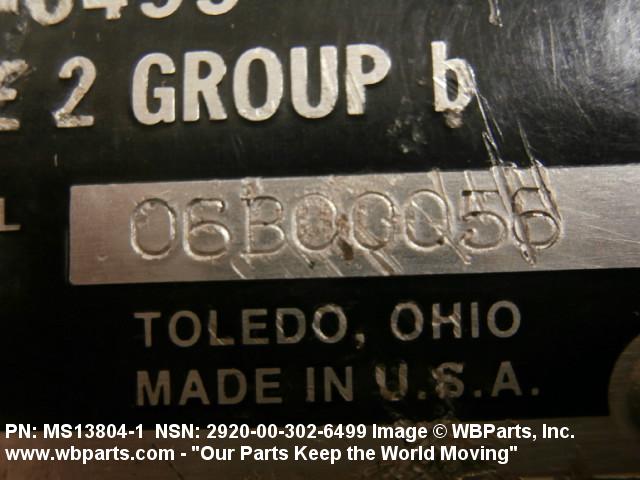

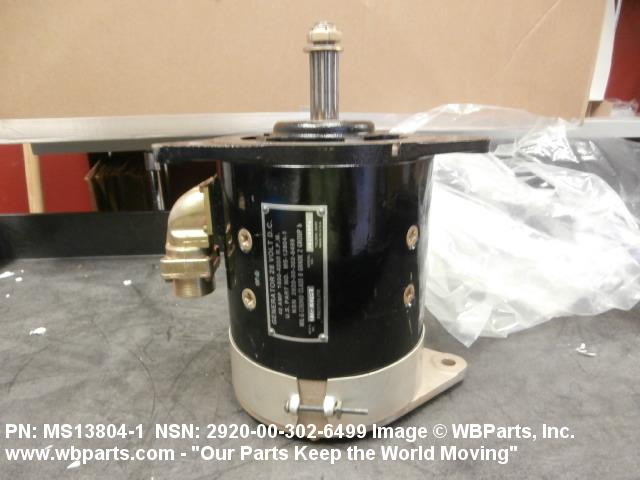

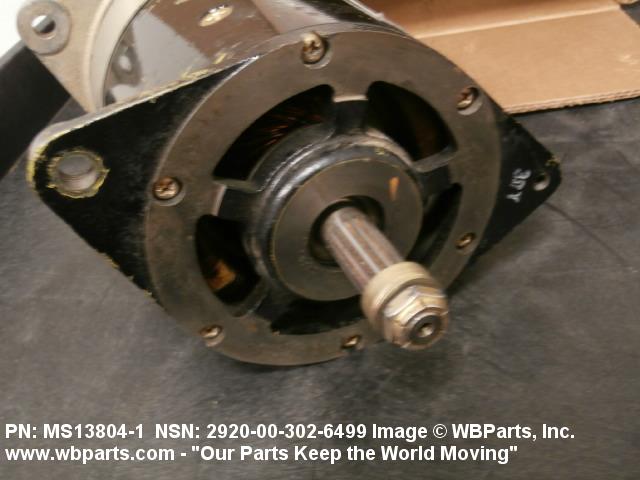

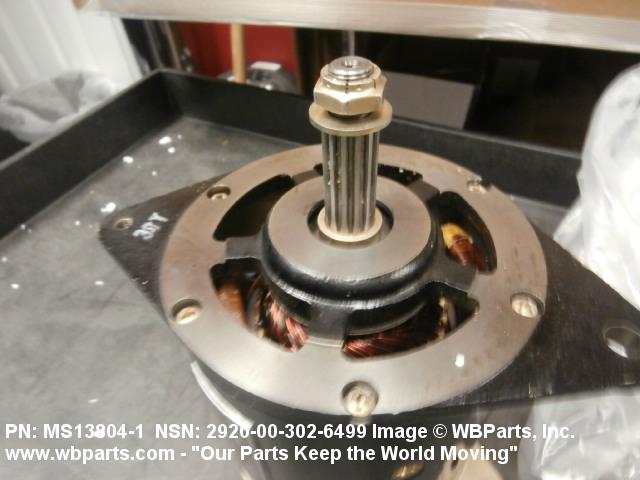

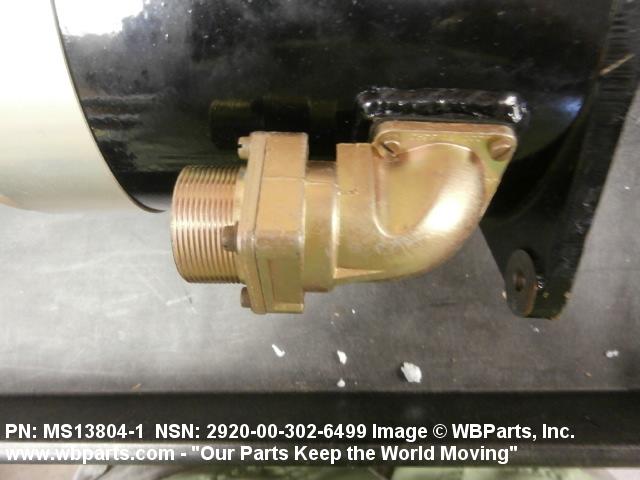

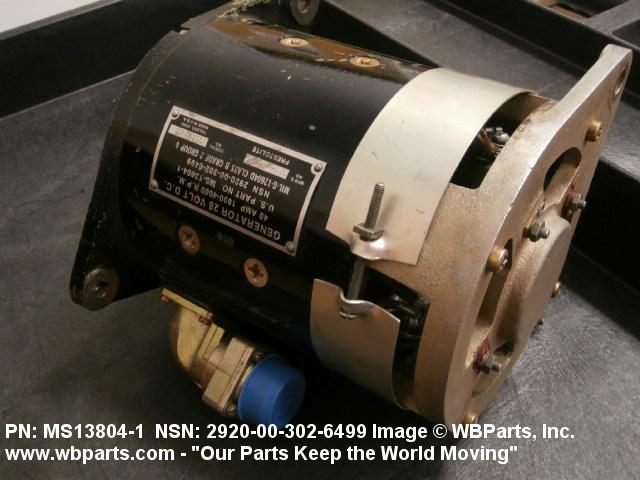

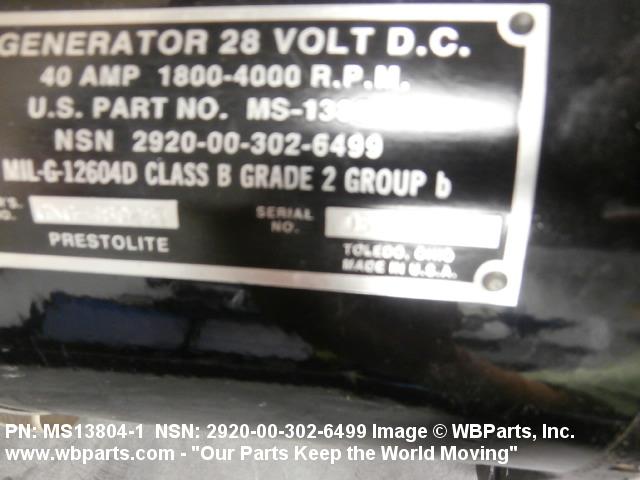

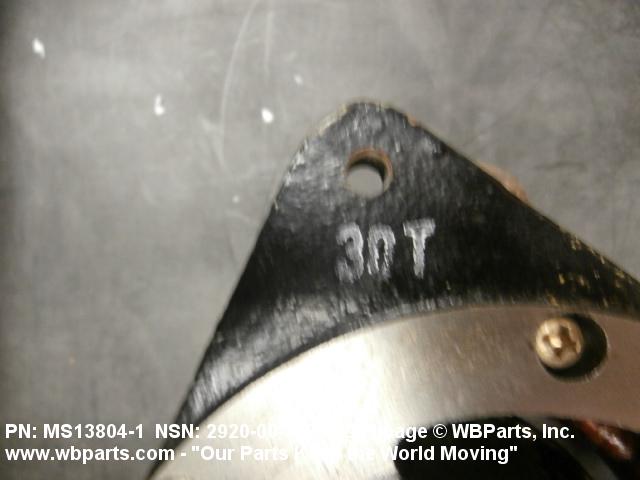

Drawings & Photos | NSN 2920-00-302-6499
Demand History | NSN 2920-00-302-6499
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2920-00-302-6499 | 2024-04-107 | 1 | United States |
| 2920-00-302-6499 | 2023-05-146 | 1 | us |
| 2920-00-302-6499 | 2020-09-258 | 1 | US |
| 2920-00-302-6499 | 2020-02-56 | 1 | US |
| MS138041 | 2019-10-290 | 1 | US |
| 2920-00-302-6499 | 2016-05-145 | 1 | United States |
| 2920-00-302-6499 | 2015-04-120 | 4 | DIBBS |
| 2920-00-302-6499 | 2015-03-77 | 4 | DIBBS |
| 2920-00-302-6499 | 2014-11-331 | 4 | DIBBS |
| 2920-00-302-6499 | 2012-08-220 | 2 | DIBBS |
| 2920-00-302-6499 | 2010-11-322 | 3 | DIBBS |
Cross Reference | NSN 2920-00-302-6499
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1117478 | 16764 | GENERAL MOTORS CORP DELCO REMY DIV |
| GKG4802ST | 24975 | PRESTOLITE ELECTRIC INCORPORATED |
| GKG4802ST | 68505 | PRESTOLITE ELECTRIC INC |
| MILG12604 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS13804-1 | 16764 | GENERAL MOTORS CORP DELCO REMY DIV |
| MS13804-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2920-00-302-6499
Related Products | NSN 2920-00-302-6499
Technical Data | NSN 2920-00-302-6499
| Characteristic | Specifications |
|---|---|
| VOLTAGE IN VOLTS | 28.0 |
| MAXIMUM OUTPUT CURRENT RATING IN AMPS | 40.0 |
| MAXIMUM RATED ARMATURE SPEED IN RPM | 4000 |
| ARMATURE MINIMUM SPEED IN RPM AT FULL CURRENT OUTPUT | 1875 |
| MINIMUM CURRENT CUT-IN SPEED IN RPM | 1490 |
| GROUNDING METHOD | INTERNAL |
| GROUND POLARITY TYPE | NEGATIVE |
| SHAFT ROTATION DIRECTION | CLOCKWISE |
| MOUNTING STYLE | 15 BRACKET MTD W/THREE MTG HOLES, TOP HOLE THREADED |
| DISTANCE BETWEEN SHAFT CENTER AND BOTTOM MOUNTING HOLE CENTER | 4.430 INCHES MINIMUM AND 4.450 INCHES MAXIMUM |
| DISTANCE BETWEEN SHAFT CENTER AND TOP MOUNTING HOLE CENTER | 4.430 INCHES MINIMUM AND 4.450 INCHES MAXIMUM |
| DISTANCE BETWEEN INSIDE SURFACES OF HINGE BRACKET | 7.521 INCHES MINIMUM AND 7.538 INCHES MAXIMUM |
| DISTANCE BETWEEN OUTSIDE SURFACES OF HINGE BRACKET | 8.381 INCHES MINIMUM AND 8.598 INCHES MAXIMUM |
| BOTTOM MOUNTING HOLE DIAMETER | 0.525 INCHES MINIMUM AND 0.537 INCHES MAXIMUM |
| ANGULAR DEVIATION OF FIRST HOLE FROM TOP CENTER IN DEG | 180.0 |
| ANGULAR DEVIATION OF SECOND HOLE FROM FIRST HOLE IN DEG | 160.0 |
| MOUNTING HOLE THREAD SERIES DESIGNATOR | UNC |
| MOUNTING HOLE THREAD DIAMETER | 0.375 INCHES NOMINAL |
| MOUNTING HOLE THREAD QUANTITY PER INCH | 16 |
| MOUNTING HOLE THREAD CLASS | 2B |
| MOUNTING HOLE THREAD DIRECTION | RIGHT-HAND |
| SHAFT DRIVE END STYLE | 3 SPLINED SHAFT END, THREADED |
| THREAD LENGTH | 0.680 INCHES NOMINAL |
| SPLINE MINOR DIAMETER | 0.7225 INCHES MINIMUM AND 0.7335 INCHES MAXIMUM |
| SPLINE MAJOR DIAMETER | 0.8586 INCHES MINIMUM AND 0.8636 INCHES MAXIMUM |
| SPLINE WIDTH | 0.097 INCHES MINIMUM AND 0.0982 INCHES MAXIMUM |
| SPLINE LENGTH | 1.980 INCHES MINIMUM AND 2.020 INCHES MAXIMUM |
| SPLINE QUANTITY | 13 |
| THREAD SERIES | UNF |
| THREAD DIAMETER | 0.625 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| MAXIMUM OPERATING ALTITUDE RATING | NOT RATED |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND FUNGUS RESISTANT |
| FURNISHED ITEMS | RADIO INTERFERENCE SHIELDING |
| NONDEFINITIVE SPEC/STD DATA | B CLASS AND 2 GRADE AND B GROUP |
| III FSC APPLICATION DATA | ENGINE ELECTRICAL |
Restrictions/Controls & Freight Information | NSN 2920-00-302-6499
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI SUB4 |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 590 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2920-00-302-6499
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SU | SU:AF SICA RESIDUAL MMAC-OO-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | P | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | T | |
| Operational Test Code | 0 | Items of supply which when properly packaged and placed in storage, do not require the performance of special procedures while in storage, nor prior to issue, and for which it has been determined that existing Care in Stores quality control procedures are adequate. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
