NSN 2920-00-293-5301 SF2RW2, L7607, 18005
Product Details | IGNITION MAGNETO
2920-00-293-5301 An electric generator whose field poles are permanent magnets and which is used to generate electrical energy for the purpose of igniting the combustible mixture in internal combustion engine cylinders. Spark distribution may be accomplished by a distributor portion of the magneto or by a separate item.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: SF2RW2, L7607, 18005, 2920-00-293-5301, 00-293-5301, 2920002935301, 002935301
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-293-5301 | 00113 ( MAGNETO, IGNITION ) |

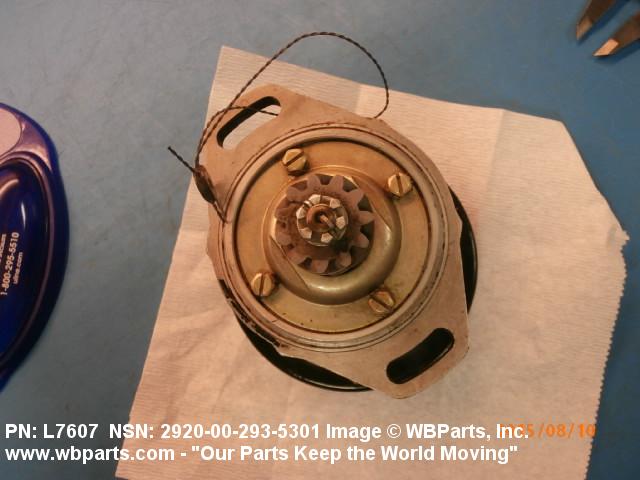

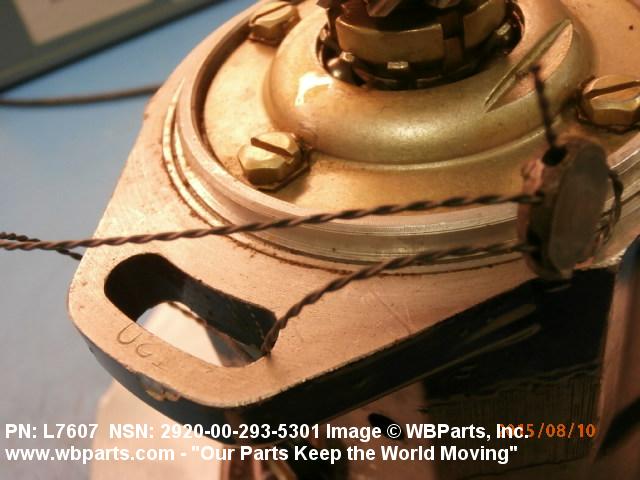

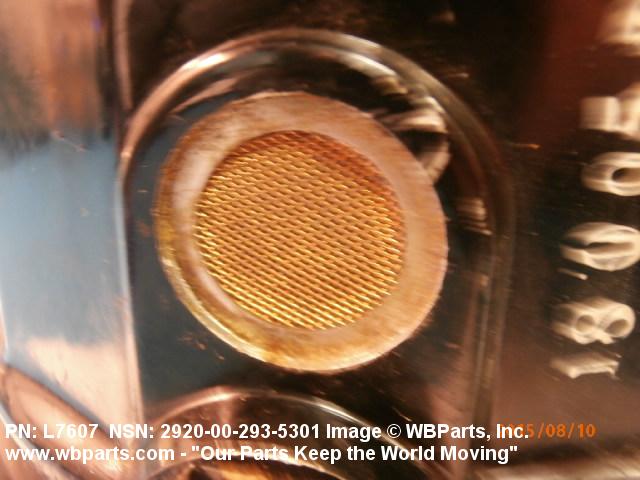

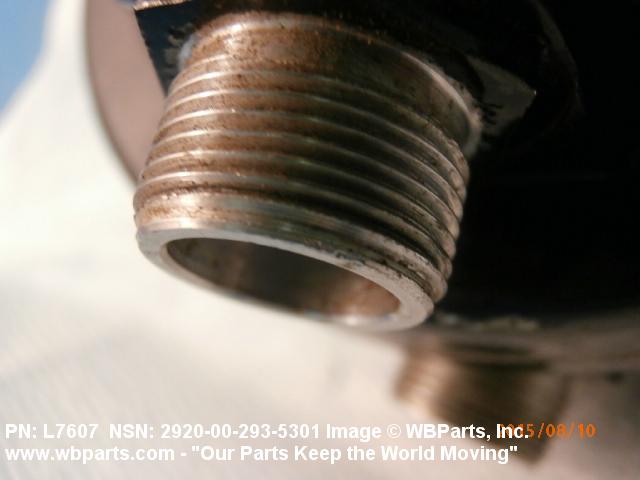

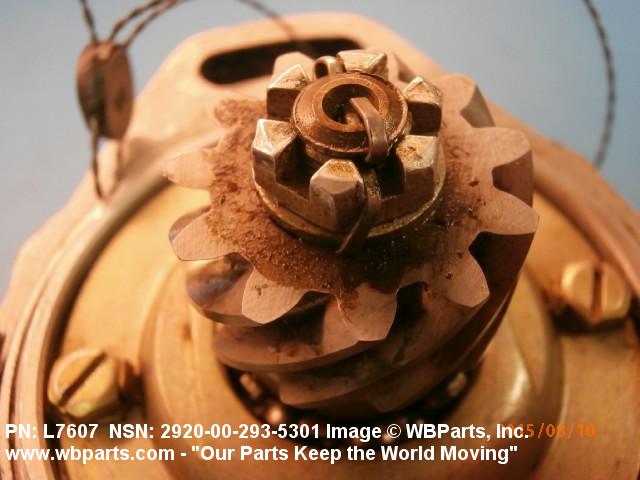

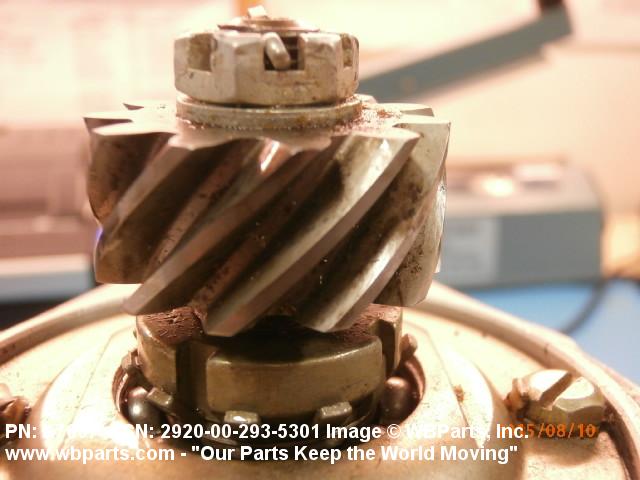

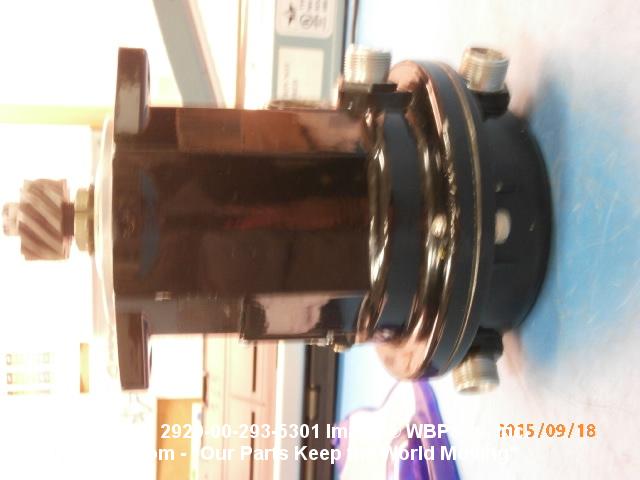

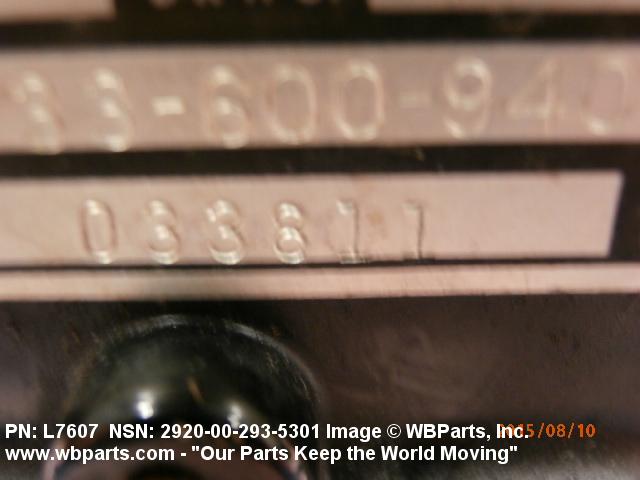

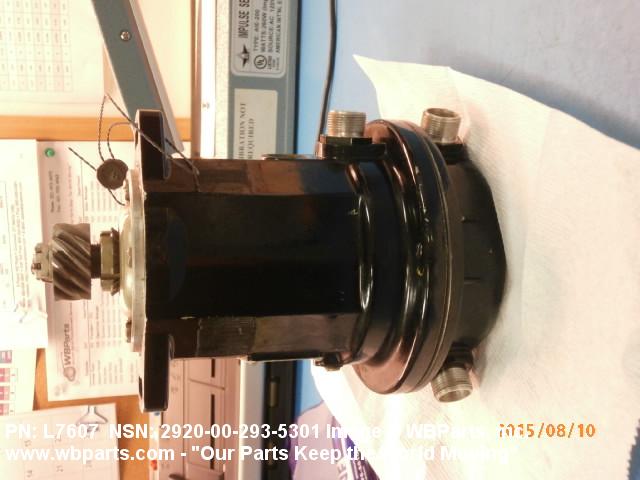

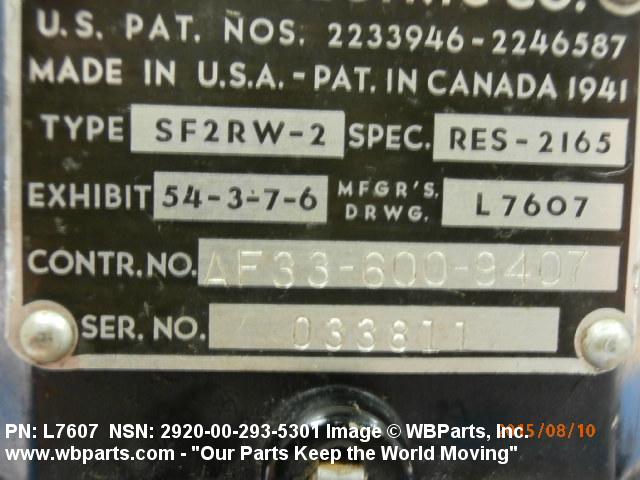

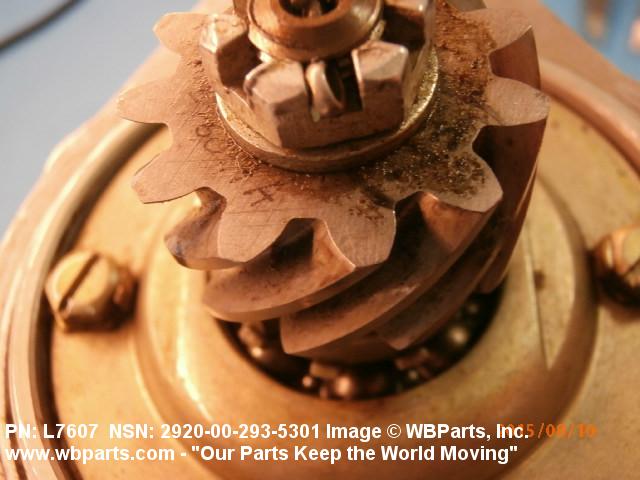

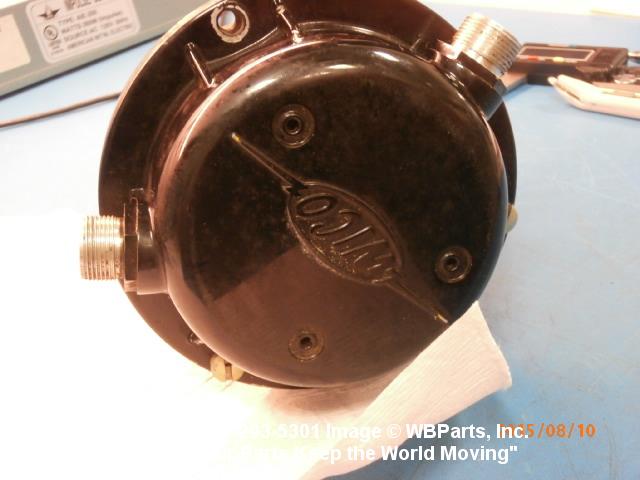

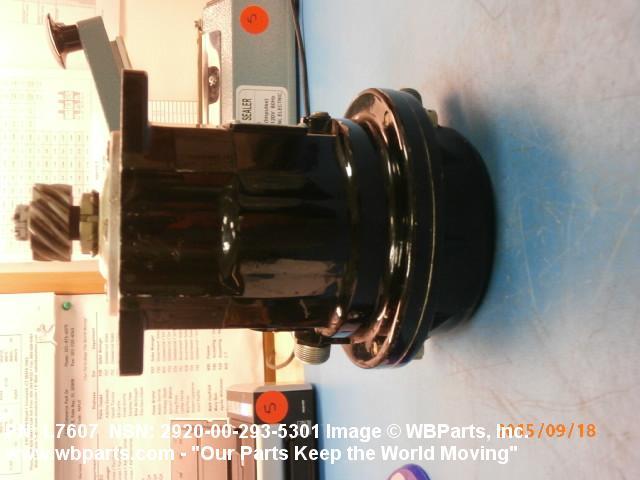

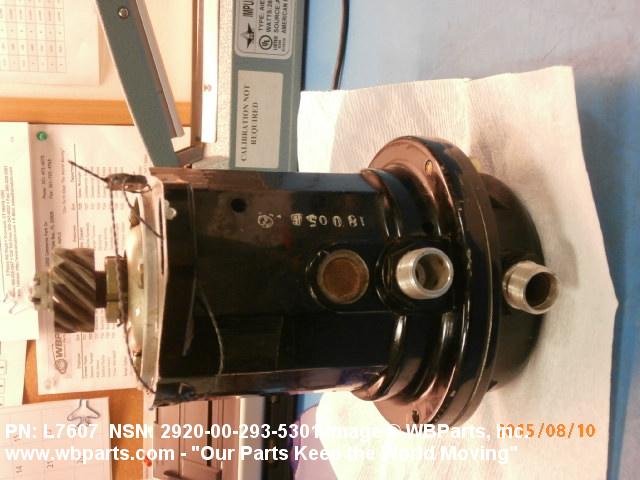

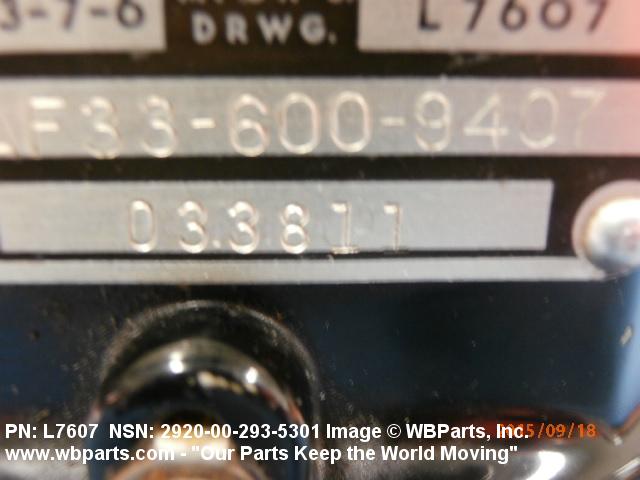

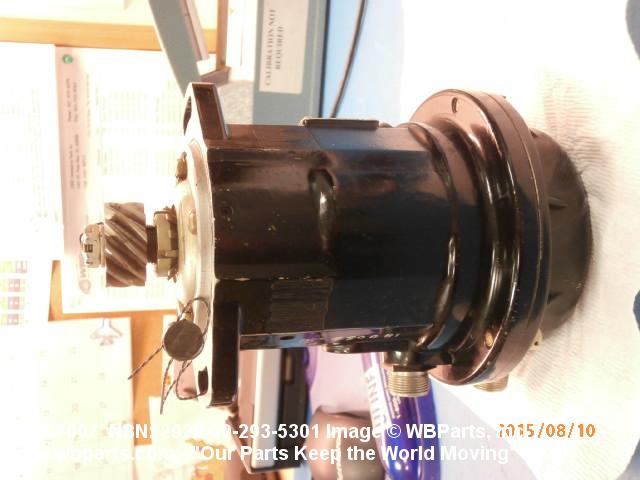

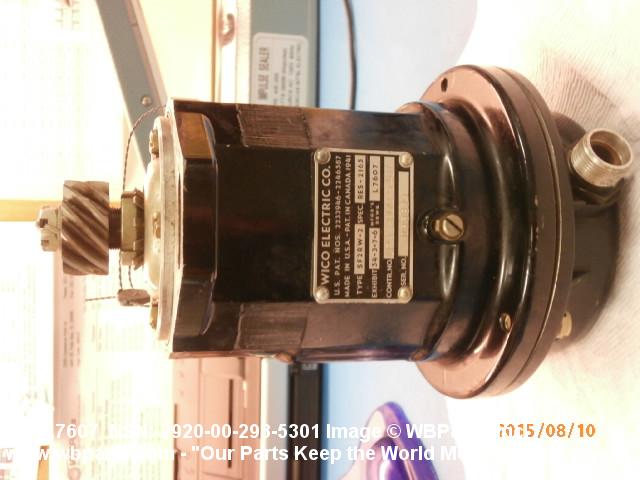

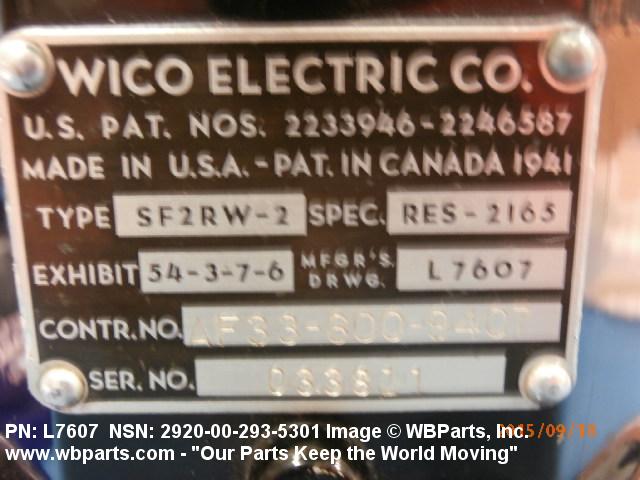

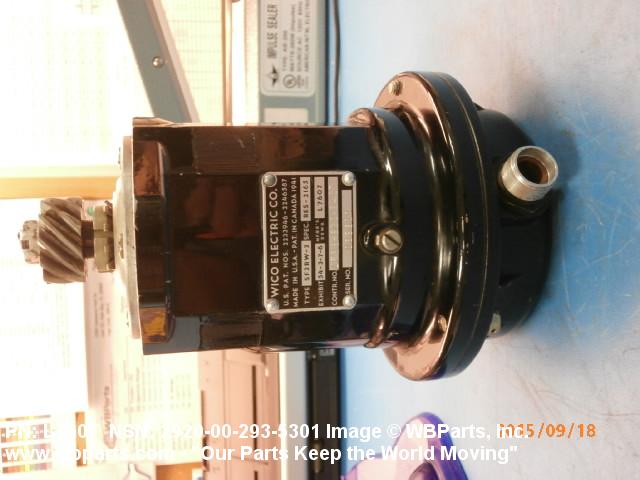

Drawings & Photos | NSN 2920-00-293-5301
Demand History | NSN 2920-00-293-5301
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2920-00-293-5301 | 2019-03-72 | 6 | US |
| 2920-00-293-5301 | 2017-04-97 | 1 | United States |
| L7607 | 2015-08-216 | 1 | United States |
| L7607 | 2015-06-166 | 1 | South Korea |
| L7607 | 2012-04-94 | 1 | CA |
| SF2RW2 | 2007-09-270 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2920-00-293-5301
Related Products | NSN 2920-00-293-5301
Technical Data | NSN 2920-00-293-5301
| Characteristic | Specifications |
|---|---|
| IMPULSE QUANTITY PER REVOLUTION | 2 |
| IGNITION TYPE FOR WHICH DESIGNED | SINGLE |
| SPARK DISTRIBUTION METHOD | GAP |
| SHAFT ROTATION DIRECTION | CLOCKWISE |
| DISTRIBUTOR CAP | INCLUDED |

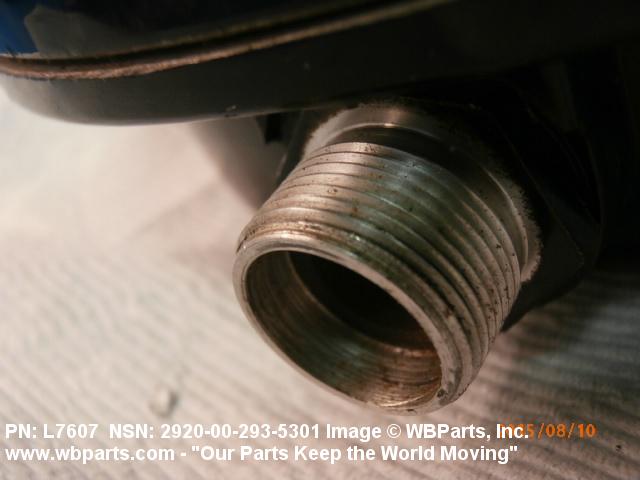

| SECONDARY TERMINAL TYPE | THREADED |
| SPARK PLUG TERMINAL ACCOMMODATION THREAD SERIES | UNEF |
| SPARK PLUG TERMINAL ACCOMMODATION THREAD DIAMETER | 0.688 INCHES NOMINAL |
| SPARK PLUG TERMINAL ACCOMMODATION THREAD QUANTITY PER INCH | 24 |
| BODY MATERIAL | STEEL |
| SURFACE TREATMENT | ENAMEL |
| MOUNTING METHOD | FLANGE |
| MOUNTING FACILITY | SLOT |
| MOUNTING FACILITY QUANTITY | 2 |
| MOUNTING SLOT LENGTH | 1.063 INCHES NOMINAL |
| MOUNTING SLOT WIDTH | 0.328 INCHES MINIMUM AND 0.338 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 4.184 INCHES MINIMUM AND 4.192 INCHES MAXIMUM |
| PERFORMANCE TYPE | HIGH TENSION |
| ROTATION ELEMENT TYPE | PERMANENT MAGNET ROTOR |
| POLE QUANTITY | 2 |
| CONTACT SET QUANTITY | 1 |
| DRIVE SHAFT TYPE | KEYWAY SHAFT |
| SHAFT LENGTH | 1.465 INCHES NOMINAL |
| FEATURES PROVIDED | RADIO INTERFERENCE SHIELDING |
| MANUFACTURERS CODE | 79575 |
| DESIGN CONTROL REFERENCE | L7607 |
Restrictions/Controls & Freight Information | NSN 2920-00-293-5301
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062460 | MAGNETOS/PARTS NOI IN BOXES/CRATES |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2920-00-293-5301
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
