NSN 2920-00-275-5000 RR143, 13464, 1-3464
Product Details | IGNITION DISTRIBUTION CAP
2920-00-275-5000 A cap, generally of phenolic composition, designed to facilitate the connection of the high tension coil and spark plug leads to the distributor or magneto of an internal combustion engine.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: RR143, 13464, 1-3464, 1837974 , 1902227, 1920783 , 5265587, 5341478, 8SCM0203A, 2920-00-275-5000, 00-275-5000, 2920002755000, 002755000
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-275-5000 | 13700 ( CAP, IGNITION DISTRIBUTION ) |

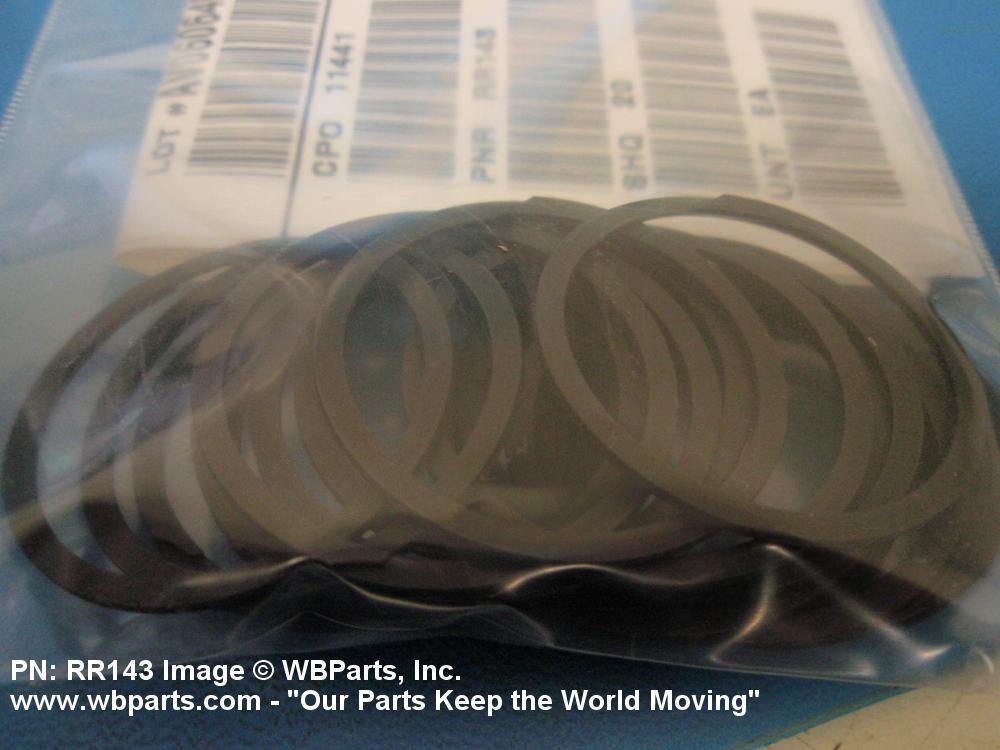

Drawings & Photos | NSN 2920-00-275-5000
Demand History | NSN 2920-00-275-5000
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| RR143 | 2011-04-97 | 20 | United States |
| RR143 | 2011-04-96 | 20 | United States |
Cross Reference | NSN 2920-00-275-5000
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1-3464 | 16662 | LIFT PARTS MFG CO INC DIV OF ECHLIN MFG CO THE |
| 1-3464 | 66654 | TVH PARTS CO. |
| 1837974 | 16764 | GENERAL MOTORS CORP DELCO REMY DIV |
| 1837974 | 1LW55 | REMY, INC. |
| 1837974 | 24617 | GENERAL MOTORS CORP |
| 1837974 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 1902227 | 16764 | GENERAL MOTORS CORP DELCO REMY DIV |
| 1902227 | 1LW55 | REMY, INC. |
| 1902227 | 24617 | GENERAL MOTORS CORP |
| 1902227 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 1920783 | 16764 | GENERAL MOTORS CORP DELCO REMY DIV |
| 1920783 | 1LW55 | REMY, INC. |
| 1920783 | 24617 | GENERAL MOTORS CORP |
| 1920783 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 5265587 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 5341478 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 8SCM0203A | 1DF03 | ABM EQUIPMENT & SUPPLY, LLC DBA HIGHWAY MANUFACTURING |
| 8SCM0203A | 62265 | VOLVO TRUCKS NORTH AMERICA INC. DBA FOREIGN PARENT IS VOLVO |
| RR143 | 19239 | ECHLIN INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2920-00-275-5000
Technical Data | NSN 2920-00-275-5000
| Characteristic | Specifications |
|---|---|
| IGNITION SYSTEM DESIGN | SINGLE |
| ELECTRODE DESIGN | SINGLE |
| APPLICATION DESIGN | DISTRIBUTOR |
| SPARK PLUG LEAD ACCOMMODATION QUANTITY | 8 |
| SPARK PLUG LEAD CONNECTION TYPE | PUSH-IN |
| SPARK PLUG LEAD ACCOMMODATION POSITION | VERTICAL |
| EXTERNAL COIL LEAD ACCOMMODATION QUANTITY | 1 |
| COIL LEAD CONNECTION TYPE | PUSH-IN |
| COIL LEAD ACCOMMODATION POSITION | VERTICAL |
| INTERNAL COIL ELECTRODE TYPE | BUTTON |
| SPRING LOADED BRUSH TYPE ELECTRODE ACCOMMODATION | NOT INCLUDED |
| CONSTRUCTION TYPE | ONE-PIECE |
| COVER ACCOMMODATION | NOT INCLUDED |
| RADIO INTERFERENCE SHIELDING | NOT PROVIDED |
| MOUNTING METHOD | SNAP SPRING |
| DIAMETER | 3.750 INCHES NOMINAL |
| HEIGHT | 3.375 INCHES NOMINAL |
| FUNGUS RESISTANT TREATMENT | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 2920-00-275-5000
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
