NSN 2920-00-255-4951 38600D, 5839, 9B9230
Product Details | ENGINE GENERATOR REGULATOR
2920-00-255-4951 A regulator designed to automatically maintain the current and/or voltage output of an engine generator within specified limits, regardless of variation of load or input voltages. May include cutout relay. Does not include items in which regulation is accomplished by transformer action. See also REGULATOR, CURRENT and REGULATOR, VOLTAGE.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: 38600D, 5839, 9B9230, 2920-00-255-4951, 00-255-4951, 2920002554951, 002554951
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-255-4951 | 17169 ( REGULATOR, ENGINE GENERATOR ) |
Drawings & Photos | NSN 2920-00-255-4951
Cross Reference | NSN 2920-00-255-4951
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2920-00-255-4951
Technical Data | NSN 2920-00-255-4951
| Characteristic | Specifications |
|---|---|
| SYSTEM VOLTAGE RATING | 6.0 |
| SYSTEM GROUND POLARITY | NEGATIVE POSITIVE |
| VOLTAGE REGULATOR UNIT TYPE | WIRE WOUND COIL STEP TYPE |
| VOLTAGE REGULATOR UNIT QUANTITY | 1 |
| OUTPUT VOLTAGE RATING IN VOLTS | 6.4 MINIMUM 8.3 MAXIMUM |
| CURRENT REGULATOR UNIT TYPE | WIRE WOUND COIL INTEGRAL W/VOLTAGE REGULATOR UNIT |
| CIRCUIT CONTROL DEVICE TYPE | CUTOUT RELAY |
| CUT-IN VOLTAGE RATING | 6.0 MINIMUM 7.1 MAXIMUM |
| CUTOUT VOLTAGE RATING | NOT RATED |
| CUTOUT CURRENT RATING IN AMPS | NOT RATED |
| REVERSE CURRENT OVERLOAD CIRCUIT BREAKER | NOT INCLUDED |
| FIELD RELAY UNIT | NOT INCLUDED |
| RADIO INTERFERENCE SHIELDING | NOT PROVIDED |
| TERMINAL TYPE | SCREW |
| TERMINAL QUANTITY | 3 |
| TERMINAL ENCASEMENT | NOT ENCASED |

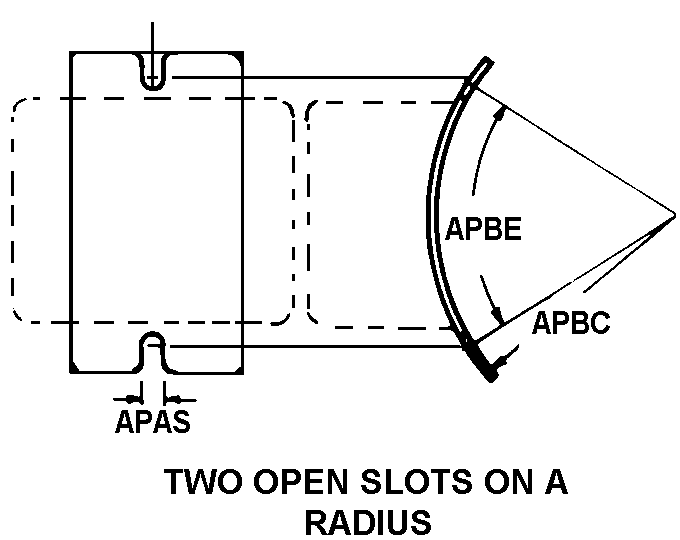

| MOUNTING STYLE | 11 TWO OPEN SLOTS ON A RADIUS |
| OPEN SLOT WIDTH | 0.219 INCHES NOMINAL |
| MOUNTING FACILITY RADIUS | 2.219 INCHES NOMINAL |
| ANGLE BETWEEN OPEN SLOTS IN DEG | 100.0 |
| SHOCK MOUNT | NOT PROVIDED |
Restrictions/Controls & Freight Information | NSN 2920-00-255-4951
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062920 | REGULATORS INDUCTION/VOLTAGE |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
