NSN 2920-00-248-8815 WS506, 14L, 16L
Product Details | SPARK PLUG
2920-00-248-8815 An item containing two or more electrodes across which an electric spark is discharged to ignite a fuel and air mixture, primarily in internal combustion engines. Excludes GLOW PLUG; and ELECTRODE.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: WS506, 14L, 16L , 50331E, 50922, DL8, DL8C, 2920-00-248-8815, 00-248-8815, 2920002488815, 002488815
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-248-8815 | 00294 ( SPARK PLUG ) |
Drawings & Photos | NSN 2920-00-248-8815
Cross Reference | NSN 2920-00-248-8815
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14L | 70040 | GENERAL MOTORS CORP AC ROCHESTER DIV |
| 14L | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 16L | 70040 | GENERAL MOTORS CORP AC ROCHESTER DIV |
| 16L | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 50331E | 64104 | DRESSER, INC. DIV DRESSER WAUKESHA |
| 50922 | 64104 | DRESSER, INC. DIV DRESSER WAUKESHA |
| DL8 | 0AFL4 | CHAMPION AEROSPACE LLC DIV CHAMPION AEROSPACE, LLC |
| DL8 | 86850 | CHAMPION AVIATION INC |
| DL8C | 0AFL4 | CHAMPION AEROSPACE LLC DIV CHAMPION AEROSPACE, LLC |
| DL8C | 86850 | CHAMPION AVIATION INC |
| WS506 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2920-00-248-8815
Technical Data | NSN 2920-00-248-8815
| Characteristic | Specifications |
|---|---|
| BODY STYLE | A2 UNSHIELDED, THREADED POST, GASKET SEAT |
| REACH LENGTH | 0.625 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 1.000 INCHES NOMINAL |
| SEAT MAJOR DIAMETER | 1.000 INCHES MAXIMUM |
| HEIGHT ABOVE MOUNTING SURFACE | 2.320 INCHES NOMINAL |

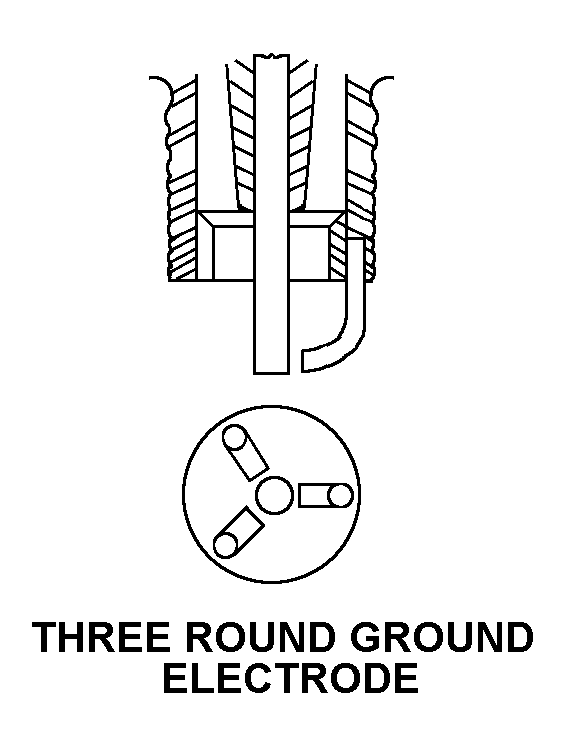

| ELECTRODE STYLE | B9 THREE ROUND GROUND ELECTRODE |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR AND LOCATION | 18-1.5MM BASE |
| MEAN EFFECTIVE PRESSURE RATING | 95.0 POUNDS PER SQUARE INCH NOMINAL |
| USAGE DESIGN | ENGINE OTHER THAN AIRCRAFT |
| SPECIAL FEATURES | INDUSTRIAL-COMMERCIAL SERIES |
| TEST DATA DOCUMENT | 81348-WS506 SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | 3 TYPE AND B CLASS |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | WS506 |
Restrictions/Controls & Freight Information | NSN 2920-00-248-8815
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177080 | SPARK PLUGS NOI IN BXS |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 583 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Y | Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2920-00-248-8815
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
