NSN 2920-00-248-1619 S18AR, XE49, 177624270164
Product Details | SPARK PLUG
2920-00-248-1619 An item containing two or more electrodes across which an electric spark is discharged to ignite a fuel and air mixture, primarily in internal combustion engines. Excludes GLOW PLUG; and ELECTRODE.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: S18AR, XE49, 177624270164, 17-7624-270-164, 260352R91, 280549R91, M49, 2920-00-248-1619, 00-248-1619, 2920002481619, 002481619
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-248-1619 | 00294 ( SPARK PLUG ) |
Drawings & Photos | NSN 2920-00-248-1619
Cross Reference | NSN 2920-00-248-1619
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17-7624-270-164 | 81336 | CHIEF OF ENGINEERS DEPT OF ARMY |
| 260352R91 | 92679 | NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION |
| 280549R91 | 31007 | NAVISTAR INTL CORP |
| 280549R91 | 92679 | NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION |
| M49 | 91340 | MET-PRO CORPORATION |
| S18AR | 24617 | GENERAL MOTORS CORP |
| S18AR | 70040 | GENERAL MOTORS CORP AC ROCHESTER DIV |
| S18AR | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| XE49 | 0AFL4 | CHAMPION AEROSPACE LLC DIV CHAMPION AEROSPACE, LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2920-00-248-1619
Technical Data | NSN 2920-00-248-1619
| Characteristic | Specifications |
|---|---|
| BODY STYLE | A5 ELECTRICALLY SHIELDED, FULL INSULATOR, GASKET SEAT |
| REACH LENGTH | 0.500 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 1.000 INCHES NOMINAL |
| SEAT MAJOR DIAMETER | 1.000 INCHES NOMINAL |
| HEIGHT ABOVE MOUNTING SURFACE | 3.000 INCHES NOMINAL |
| TOP TO TERMINAL CONTACT DISTANCE | 1.000 INCHES MINIMUM AND 1.050 INCHES MAXIMUM |
| TOP TO SHIELD THREAD DISTANCE | 0.125 INCHES NOMINAL |
| SHIELD THREAD LENGTH | 0.250 INCHES NOMINAL |
| TERMINAL SLEEVE INSIDE DIAMETER | 0.378 INCHES MINIMUM AND 0.386 INCHES MAXIMUM |

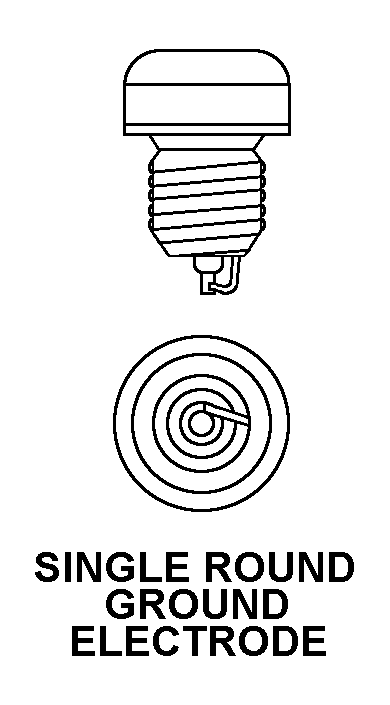

| ELECTRODE STYLE | B14 SINGLE ROUND GROUND ELECTRODE |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR AND LOCATION | 18-1.5MM BASE 5/8-24 UNEF SHIELDING |
| DC RESISTANCE RATING IN OHMS | 10000.0 NOMINAL |
| USAGE DESIGN | ENGINE OTHER THAN AIRCRAFT |
| MANUFACTURERS CODE | 91340 |
| DESIGN CONTROL REFERENCE | M49 |
Restrictions/Controls & Freight Information | NSN 2920-00-248-1619
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177080 | SPARK PLUGS NOI IN BXS |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 583 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Y | Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
