NSN 2920-00-234-2332 AGR22, SPZ1R, WS506
Product Details | SPARK PLUG
2920-00-234-2332 An item containing two or more electrodes across which an electric spark is discharged to ignite a fuel and air mixture, primarily in internal combustion engines. Excludes GLOW PLUG; and ELECTRODE.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: AGR22, SPZ1R, WS506, GSP263, RN9YC, RN9Y, XN9Y, 033805, 10076643, 5099768, 9807956846, 98079-56846, AG22, 2920-00-234-2332, 00-234-2332, 2920002342332, 002342332
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 28 OCT 1970 | 00-234-2332 | 00294 ( SPARK PLUG ) |

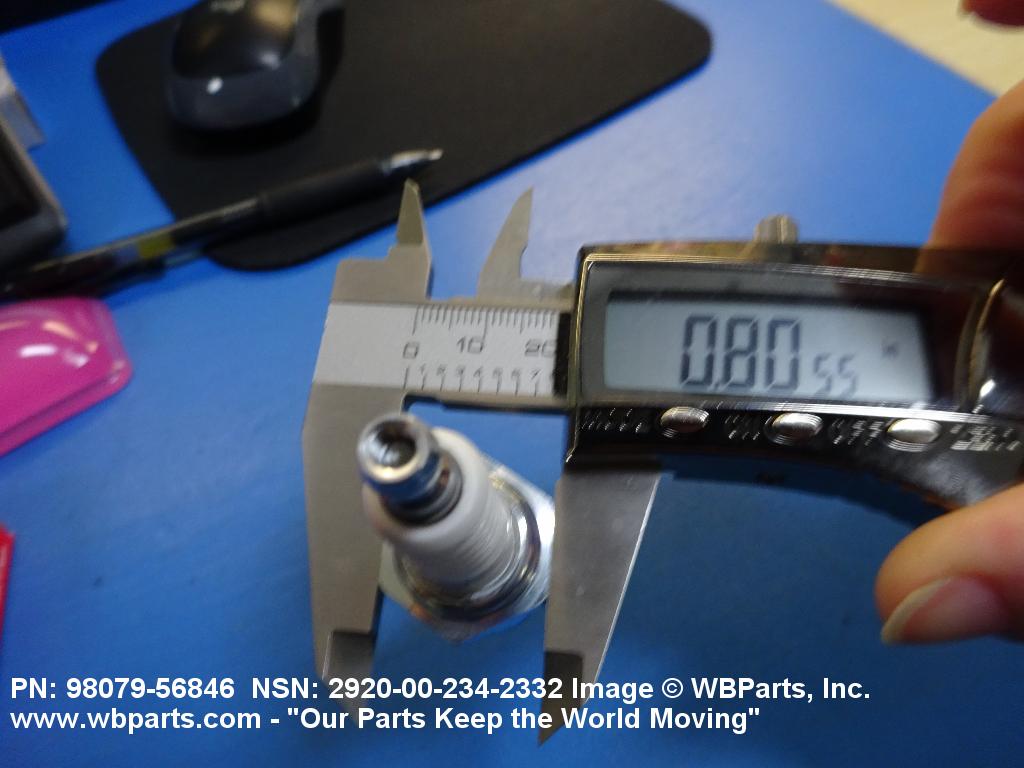

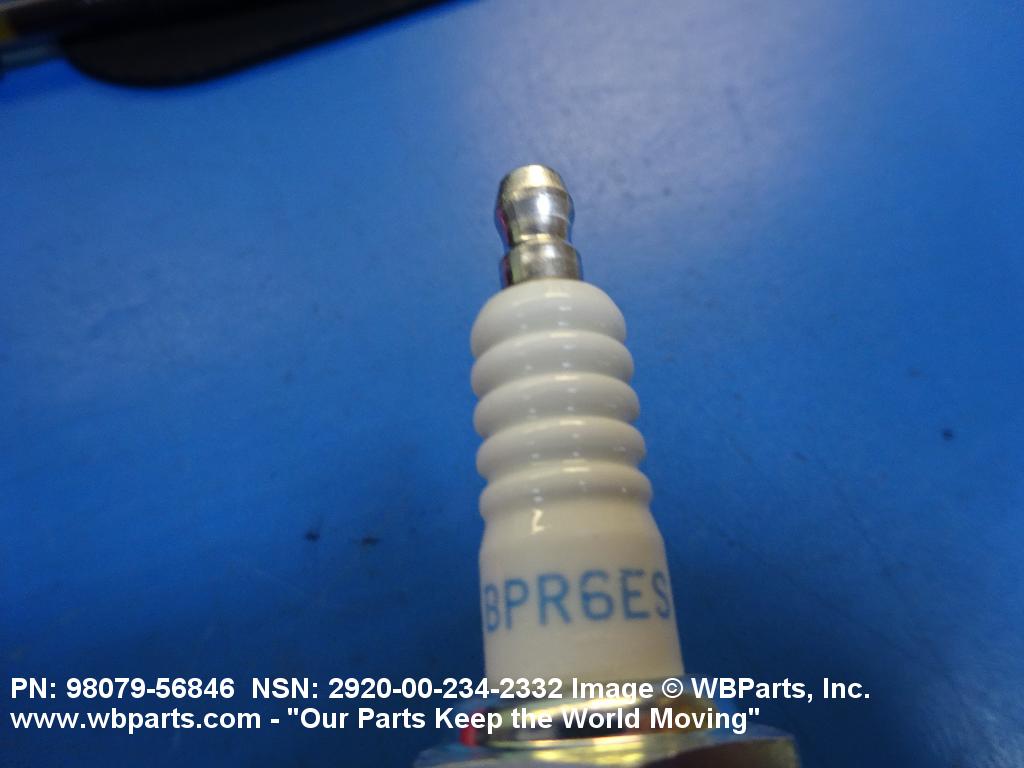

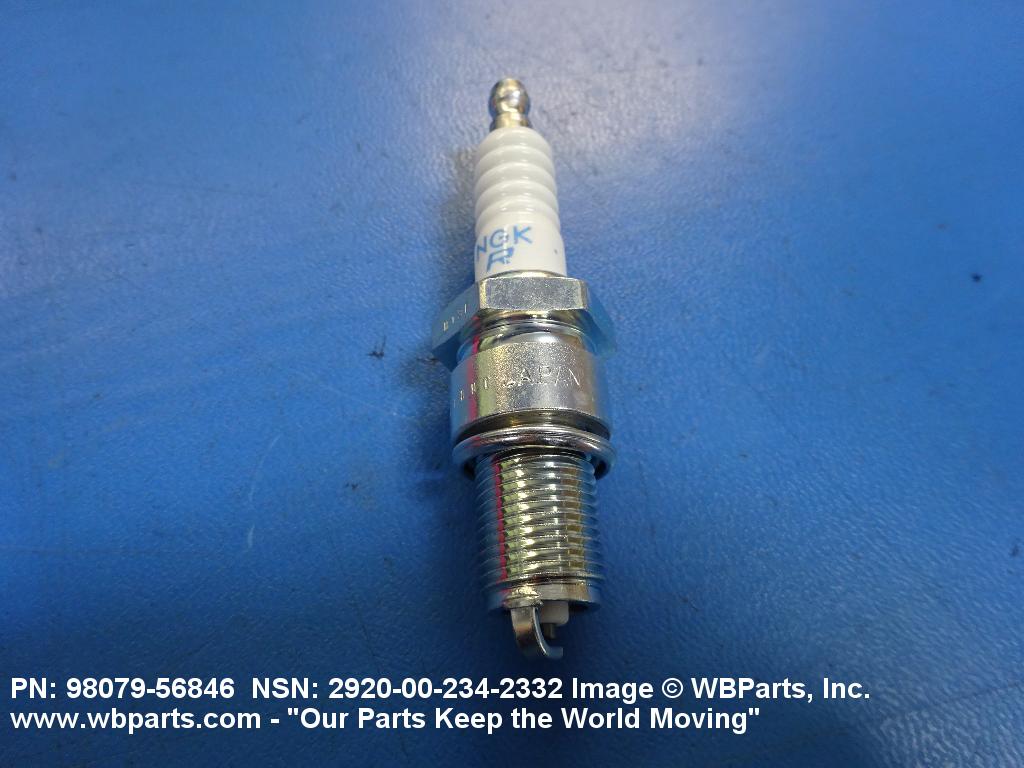

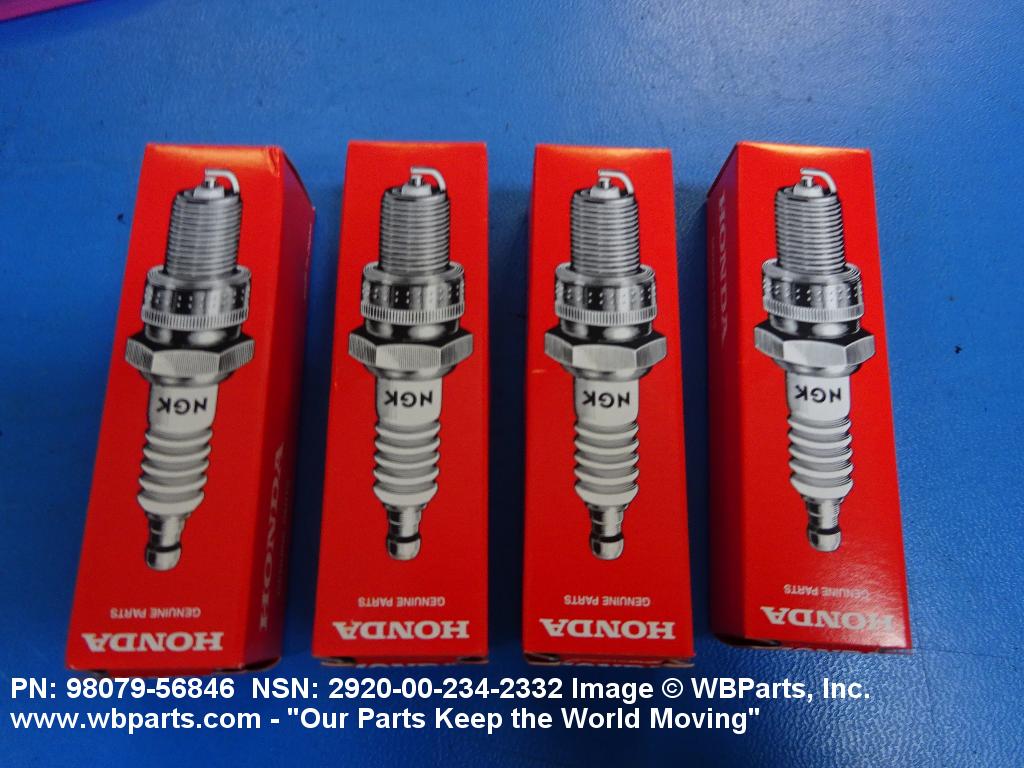

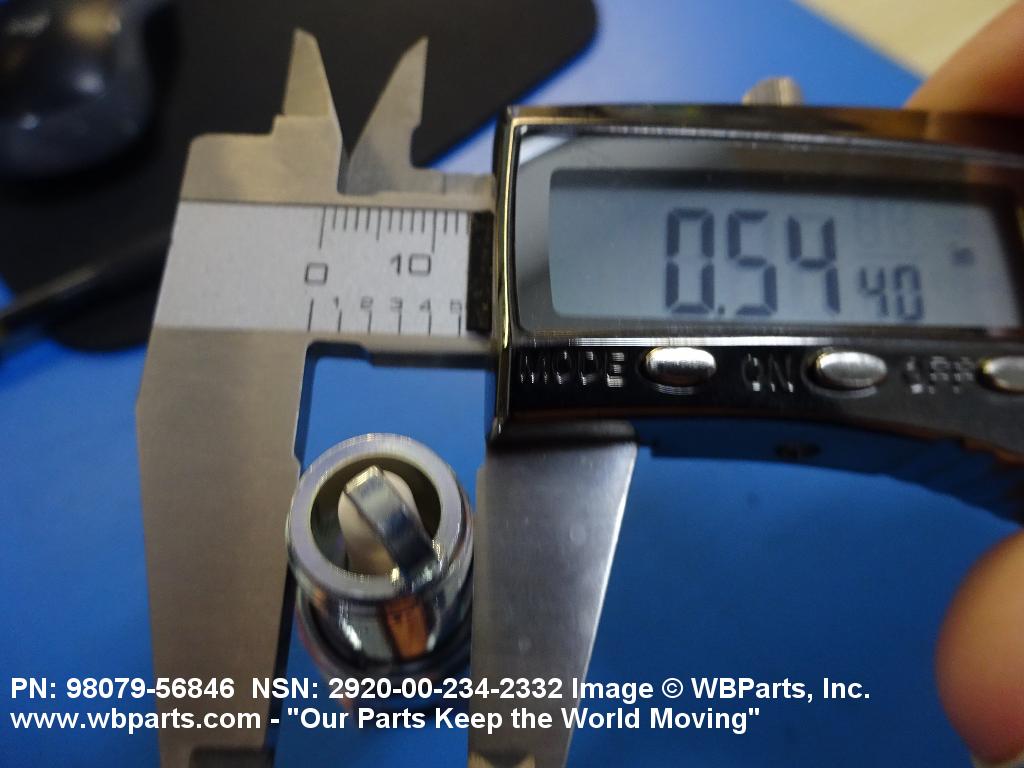

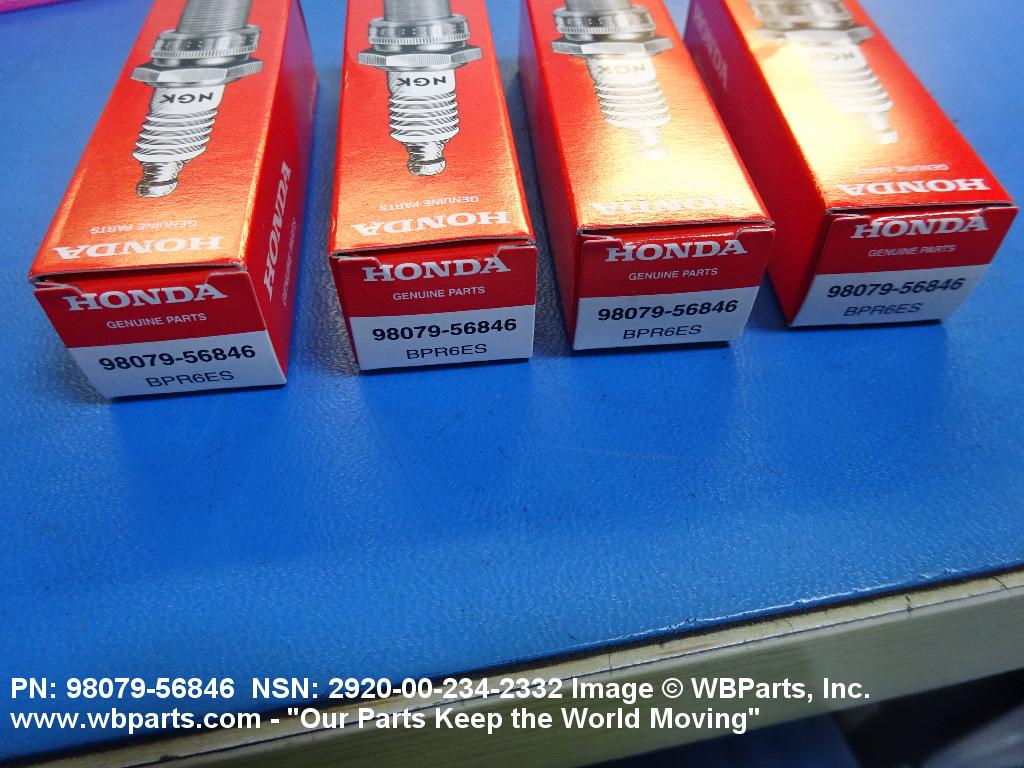

Drawings & Photos | NSN 2920-00-234-2332
Demand History | NSN 2920-00-234-2332
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 033805 | 2022-05-146 | 368 | DIBBS |
| RN9YC | 2022-05-146 | 368 | DIBBS |
| 2920-00-234-2332 | 2022-02-32 | 4 | United States |
| 2920-00-234-2332 | 2018-09-256 | 365 | DIBBS |
| 2920-00-234-2332 | 2015-09-264 | 323 | DIBBS |
| 2920-00-234-2332 | 2015-09-250 | 323 | DIBBS |
| 2920-00-234-2332 | 2009-01-02 | 219 | DIBBS |
| 2920-00-234-2332 | 2007-10-292 | 515 | DIBBS |
| 2920-00-234-2332 | 2006-01-19 | 506 | DIBBS |
Cross Reference | NSN 2920-00-234-2332
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 033805 | 03798 | WESTERBEKE CORPORATION |
| 5099768 | U1106 | POWER-TORQUE ENGINEERING LTD |
| 98079-56846 | K8176 | HONDA UK |
| 98079-56846 | U6974 | TEAM SPRAYERS LTD |
| AG22 | 23040 | FORD MOTOR CO FORD PARTS AND SERVICE DIV |
| AGR22 | 23040 | FORD MOTOR CO FORD PARTS AND SERVICE DIV |
| AGR22 | 57526 | FORD MOTOR CO |
| AGR22 | U0044 | FORD MOTOR CO LTD PARTS DISTRIBUTION CENTRE |
| GSP263 | K4284 | ROVER GROUP CARS LTD |
| RN9Y | 0AFL4 | CHAMPION AEROSPACE LLC DIV CHAMPION AEROSPACE, LLC |
| RN9Y | U1624 | FEDERAL-MOGUL IGNITION UK LTD |
| RN9YC | U1624 | FEDERAL-MOGUL IGNITION UK LTD |
| SPZ1R | K6830 | PRESTOLITE ELECTRICALS LTD |
| WS506 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| XN9Y | 0AFL4 | CHAMPION AEROSPACE LLC DIV CHAMPION AEROSPACE, LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2920-00-234-2332
Related Products | NSN 2920-00-234-2332
Technical Data | NSN 2920-00-234-2332
| Characteristic | Specifications |
|---|---|
| BODY STYLE | A2 UNSHIELDED, THREADED POST, GASKET SEAT |
| REACH LENGTH | 0.750 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.812 INCHES NOMINAL |
| SEAT MAJOR DIAMETER | 0.8125 INCHES MAXIMUM |
| HEIGHT ABOVE MOUNTING SURFACE | 2.210 INCHES NOMINAL |
| ELECTRODE STYLE | B18 SINGLE GROUND ELECTRODE |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR AND LOCATION | 14-1.25MM BASE |
| MEAN EFFECTIVE PRESSURE RATING | 250.0 POUNDS PER SQUARE INCH MINIMUM AND 260.0 POUNDS PER SQUARE INCH MAXIMUM |
| DC RESISTANCE RATING IN OHMS | 10000.0 NOMINAL |
| USAGE DESIGN | ENGINE OTHER THAN AIRCRAFT |
| TEST DATA DOCUMENT | 81348-WS506 SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | 3 TYPE AND A CLASS |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | WS506 |
Restrictions/Controls & Freight Information | NSN 2920-00-234-2332
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177080 | SPARK PLUGS NOI IN BXS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 583 | unknown |
| Originating Activity Code | 75 | GSA, FSS/FCSC Washington, DC 20406 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2920-00-234-2332
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SU | SU:AF SICA RESIDUAL MMAC-OO-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
