NSN 2920-00-042-4574 926549, 929834, 929837
Product Details | ENGINE ACCESSORY GENERATOR
2920-00-042-4574 A generator primarily designed to be mounted on an internal combustion engine, and to be driven by the engine to keep the battery in a charged condition. May also supply current for the engine ignition system and/or electrical equipment which is connected to the battery circuit. Includes alternating current generators designed for use with a rectifier. Excludes the major generator of "GENERATING SETS". For generators specifically designed for aircraft use and not mounted on the engine, see GENERATOR, DIRECT CURRENT.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: 926549, 929834, 929837, 934480, 2920-00-042-4574, 00-042-4574, 2920000424574, 000424574
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 15 MAY 1968 | 00-042-4574 | 17311 ( GENERATOR, ENGINE ACCESSORY ) |
Drawings & Photos | NSN 2920-00-042-4574
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2920-00-042-4574
Technical Data | NSN 2920-00-042-4574
| Characteristic | Specifications |
|---|---|
| VOLTAGE IN VOLTS | 12.0 |

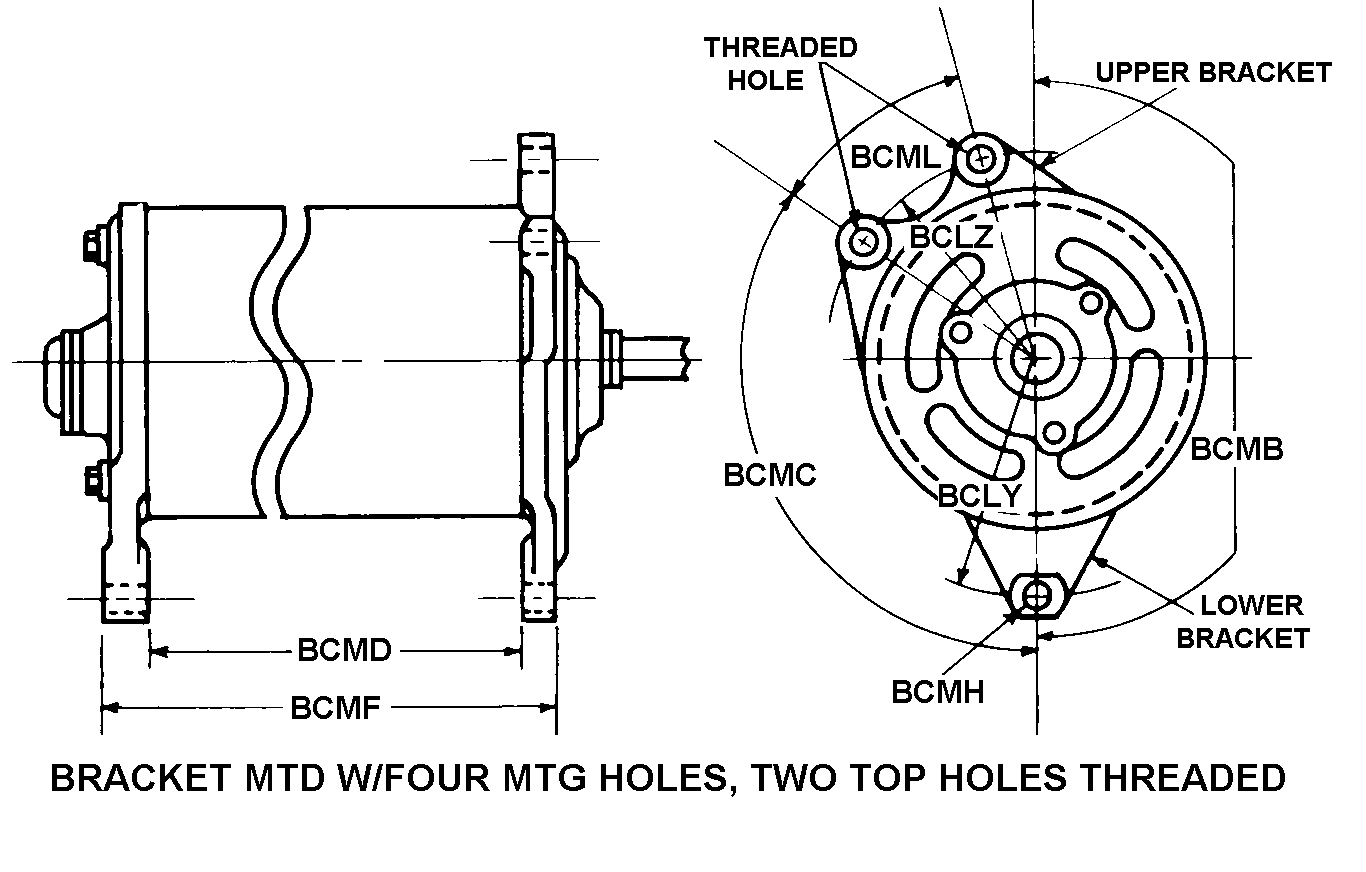

| MOUNTING STYLE | 23 BRACKET MTD W/FOUR MTG HOLES, TWO TOP HOLES THREADED |
| DISTANCE BETWEEN SHAFT CENTER AND TOP MOUNTING HOLE CENTER | 3.500 INCHES NOMINAL |
| BOTTOM MOUNTING HOLE DIAMETER | 0.375 INCHES NOMINAL |
| ANGULAR DEVIATION OF SECOND HOLE FROM FIRST HOLE IN DEG | 155.0 |
| ANGULAR DEVIATION OF THIRD HOLE FROM SECOND HOLE IN DEG | 45.0 |
| MOUNTING HOLE THREAD SERIES DESIGNATOR | UNC |
| MOUNTING HOLE THREAD DIAMETER | 0.375 INCHES NOMINAL |
| MOUNTING HOLE THREAD QUANTITY PER INCH | 16 |
| MOUNTING HOLE THREAD CLASS | 2B |
| MOUNTING HOLE THREAD DIRECTION | RIGHT-HAND |
| SHAFT DRIVE END STYLE | 1 STRAIGHT SHAFT END, THREADED, W/KEYWAY |
| THREAD LENGTH | 0.562 INCHES NOMINAL |
| SECOND STEP DIAMETER | 0.671 INCHES NOMINAL |
| KEYWAY WIDTH | 0.158 INCHES NOMINAL |
| UNTHREADED PORTION LENGTH | 0.625 INCHES NOMINAL |
| KEYWAY LENGTH | 0.562 INCHES NOMINAL |
| DISTANCE FROM END TO KEYWAY CENTER | 1.000 INCHES NOMINAL |
| THREAD SERIES | UN |
| THREAD DIAMETER | 0.625 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| FURNISHED ITEMS | COOLING FAN AND COVER PLATE AND LOCKWASHER AND NUT |
Restrictions/Controls & Freight Information | NSN 2920-00-042-4574
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 590 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
