Product Details | ENGINE ACCESSORY GENERATOR
2920-00-033-6564 A generator primarily designed to be mounted on an internal combustion engine, and to be driven by the engine to keep the battery in a charged condition. May also supply current for the engine ignition system and/or electrical equipment which is connected to the battery circuit. Includes alternating current generators designed for use with a rectifier. Excludes the major generator of "GENERATING SETS". For generators specifically designed for aircraft use and not mounted on the engine, see GENERATOR, DIRECT CURRENT.20229200048Engine Electrical System Components, Nonaircraft29250058Engine Electrical System Components, Aircraft Prime Moving
Part Alternates: 35071, 3507-1, 9208B1, 2920-00-033-6564, 00-033-6564, 2920000336564, 000336564
Engine Accessories | Engine Electrical System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-033-6564 | 17311 ( GENERATOR, ENGINE ACCESSORY ) |
Drawings & Photos | NSN 2920-00-033-6564
Cross Reference | NSN 2920-00-033-6564
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3507-1 | 12603 | CLARK EQUIPMENT CO |
| 3507-1 | 1X0J7 | VOLVO CONSTRUCTION EQUIPMENT NORTH AMERICA, LLC |
| 3507-1 | 40152 | VME AMERICAS INC SUB OF VME GROUP N V |
| 3507-1 | 77237 | DANA OFF HIGHWAY PRODUCTS, LLC |
| 9208B1 | 12603 | CLARK EQUIPMENT CO |
| 9208B1 | 77237 | DANA OFF HIGHWAY PRODUCTS, LLC |
| 9208B1 | 89749 | CLARK MATERIAL HANDLING COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2920-00-033-6564
Technical Data | NSN 2920-00-033-6564
| Characteristic | Specifications |
|---|---|
| VOLTAGE IN VOLTS | 6.0 |
| MAXIMUM OUTPUT CURRENT RATING IN AMPS | 25.0 |
| GROUNDING METHOD | EXTERNAL |
| GROUND POLARITY TYPE | POSITIVE |
| SHAFT ROTATION DIRECTION | CLOCKWISE |

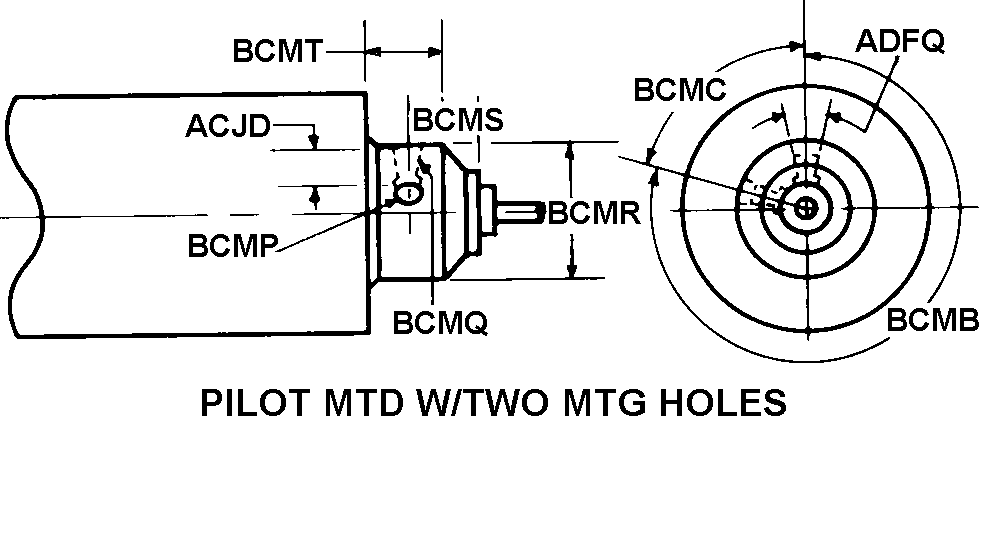

| MOUNTING STYLE | 17 PILOT MTD W/TWO MTG HOLES |
