NSN 2915-00-887-1915 112383, 112-383, 6342153
Product Details | FUEL BOOST PUMP ASSEMBLY PUMPING ELEMENT
2915-00-887-1915
Part Alternates: 112383, 112-383, 6342153, 634215-3, 2915-00-887-1915, 00-887-1915, 2915008871915, 008871915
Engine Accessories | Engine Fuel System Components, Aircraft and Missile Prime Movers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1962 | 00-887-1915 | 77777 ( ) |

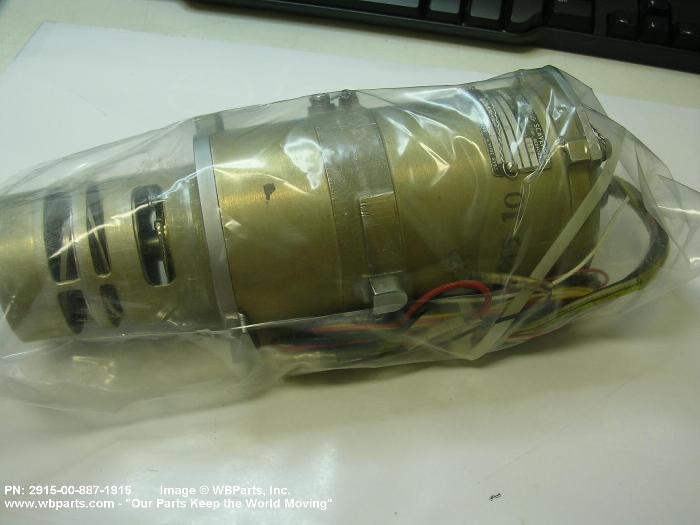

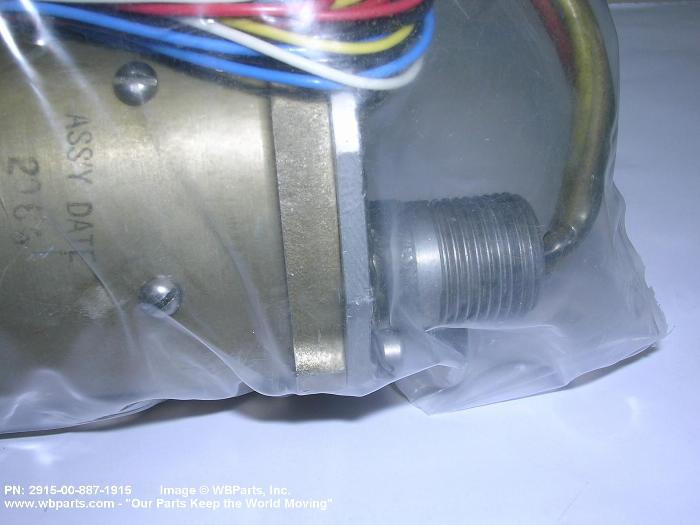

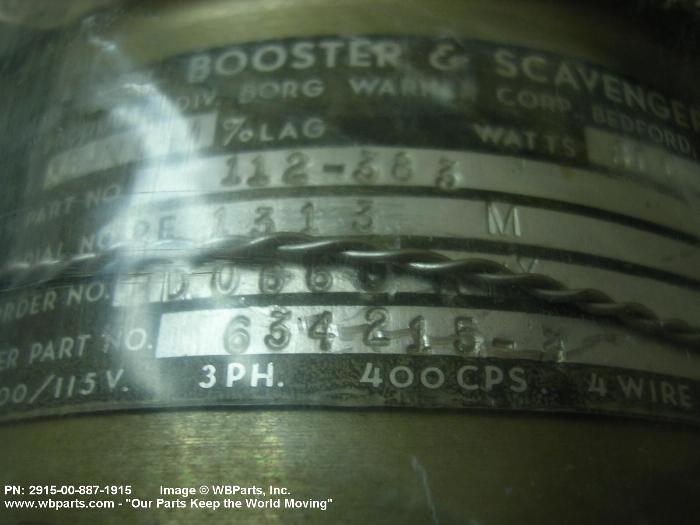

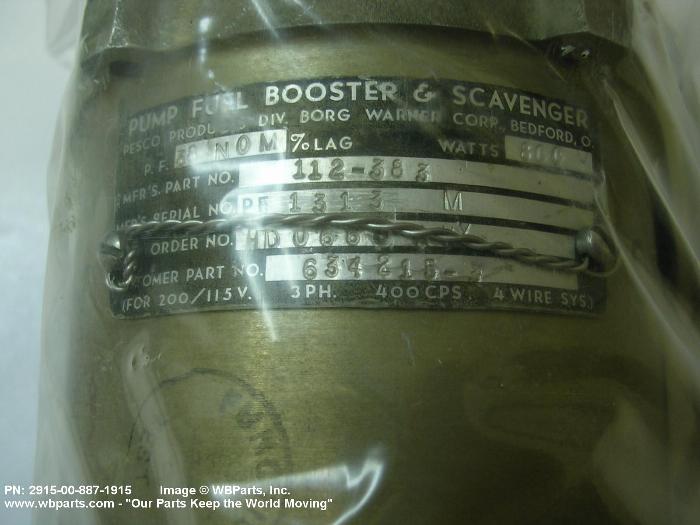

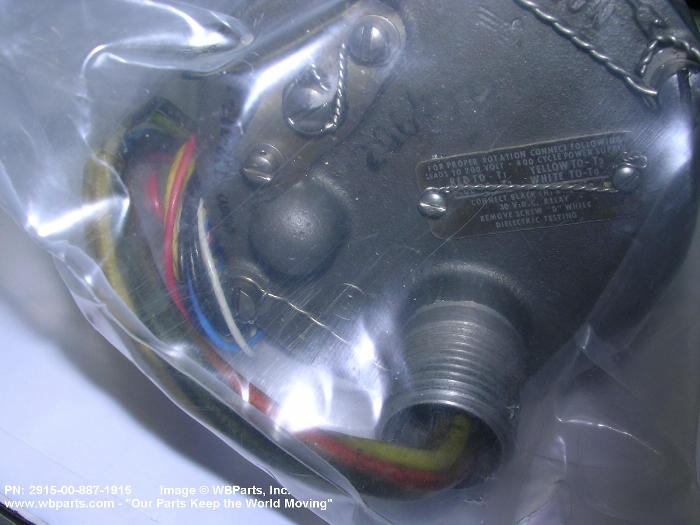

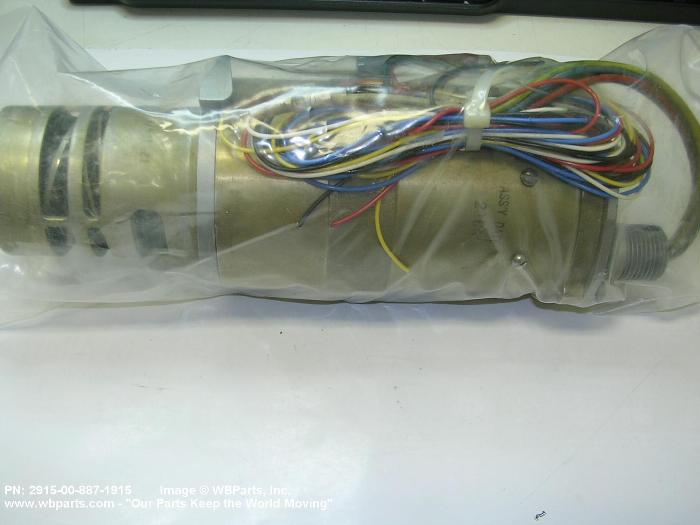

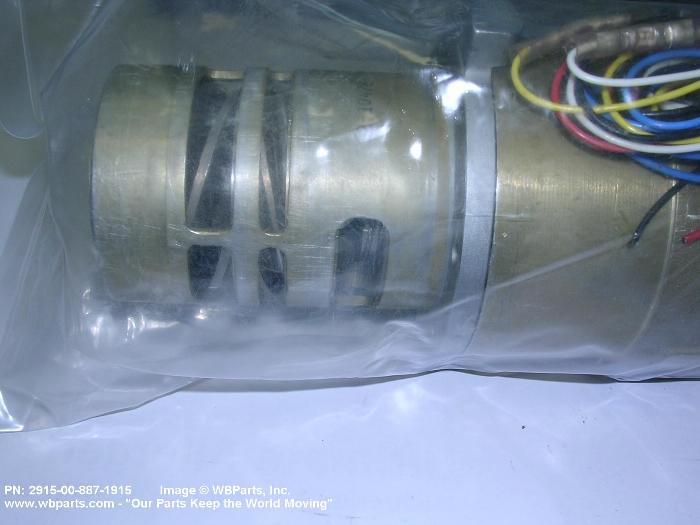

Drawings & Photos | NSN 2915-00-887-1915
Demand History | NSN 2915-00-887-1915
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2915-00-887-1915 | 2009-10-282 | 8 | US |
| 2915-00-887-1915 | 2009-08-222 | 1 | Spain |
| 2915-00-887-1915 | 2008-03-88 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2915-00-887-1915
Related Products | NSN 2915-00-887-1915
Technical Data | NSN 2915-00-887-1915
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | DOUBLE ELEMENT IMPELLER AND MOTOR ASSEMBLY,WITH MAIN PUMP 5000 LB AT 15 PSIG,SCAVENGER PUMP 2000 LB AT 5 PSIG,HP 0.55 AT 7300 CPM,POWER REQUIRED 200 VOLTS,400 CYCLE AC,THREE PHASE,MAX POWER INPUTS 800 WATTS APPLICABE TO JP4,DUTY RATING CONTINOUS,C W ROTATION |
| III END ITEM IDENTIFICATION | FUEL BOOSTER PUMP ASSEMBLY,PART NUMBERS 123547-011-01,123547-021-01,12354 7-031-01 |
| MANUFACTURERS CODE | 99167 |
| DESIGN CONTROL REFERENCE | 112-383 |
Restrictions/Controls & Freight Information | NSN 2915-00-887-1915
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 2915-00-887-1915
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | BP | PATROLAIRCRAFT(P3) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | E | (1) IRAM Program Intensive Management Reparables (2) Material (expendable ordnance) Requiring Lot and Serial Number Control but which is Reported by Serial Number Only |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
