NSN 2915-00-537-0336 38020014, 380200-14, 68580101101
Product Details | AIRCRAFT SUBMERGED PUMP

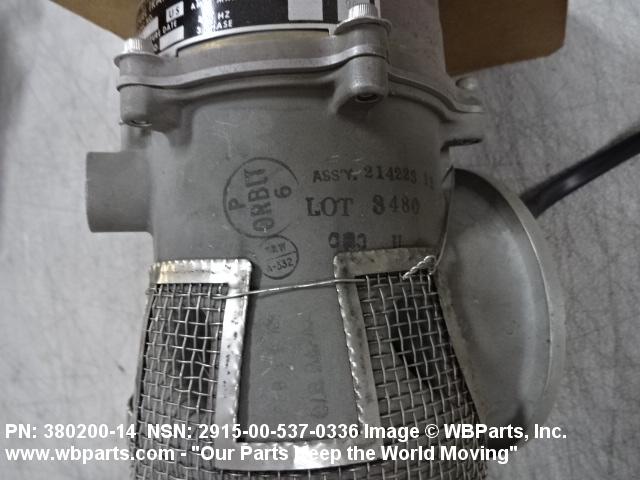

2915-00-537-0336 A completely inclosed machine consisting of a positive or nonpositive displacement pump with a driving motor used to transmit or transfer fluid from an aircraft tank to an engine driven pump or to another tank. It is designed to be partially or completely submerged in the fluid it is intended to pump.
Part Alternates: 38020014, 380200-14, 68580101101, 68-580101-101 , 2915-00-537-0336, 00-537-0336, 2915005370336, 005370336
Engine Accessories | Engine Fuel System Components, Aircraft and Missile Prime Movers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 22 SEP 1974 | 00-537-0336 | 28519 ( PUMP, SUBMERGED, AIRCRAFT ) |

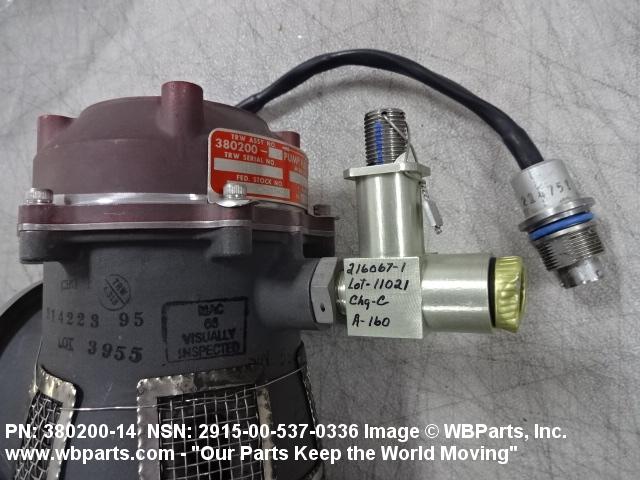

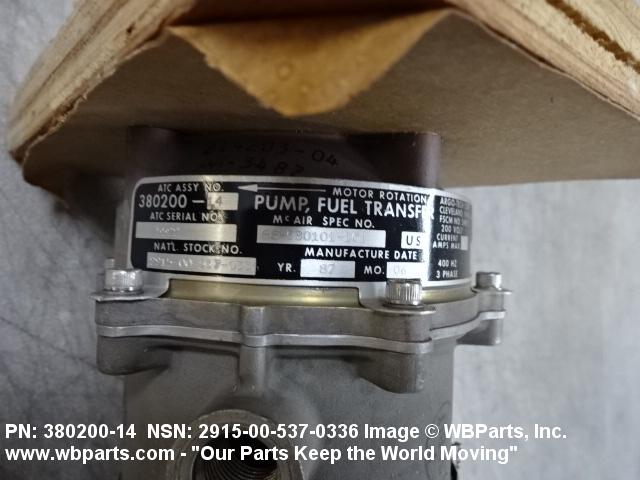

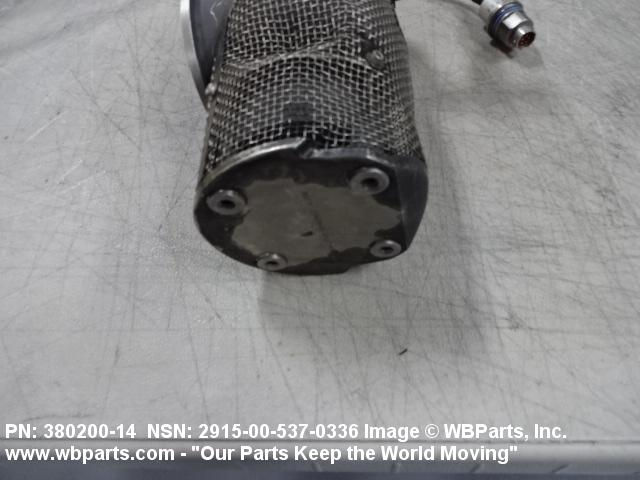

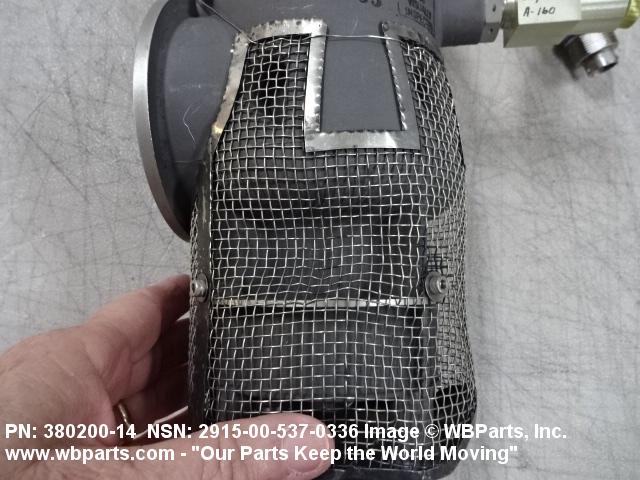

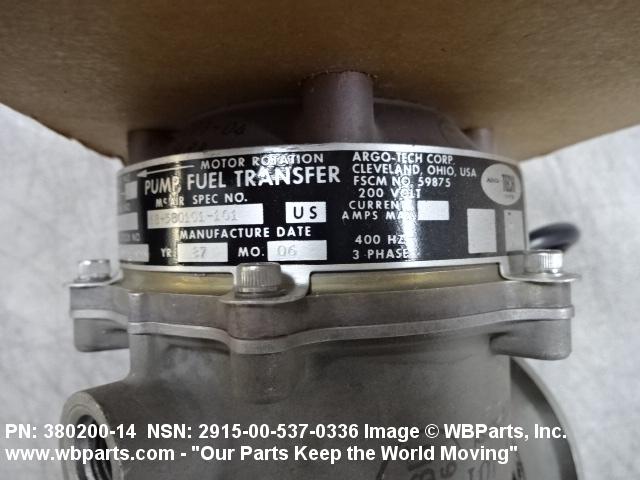

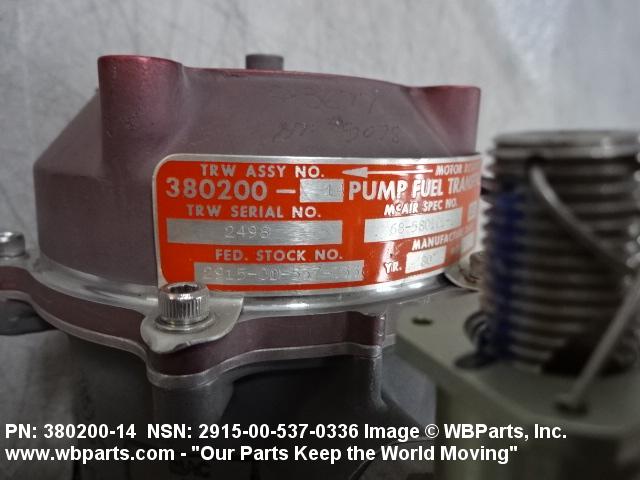

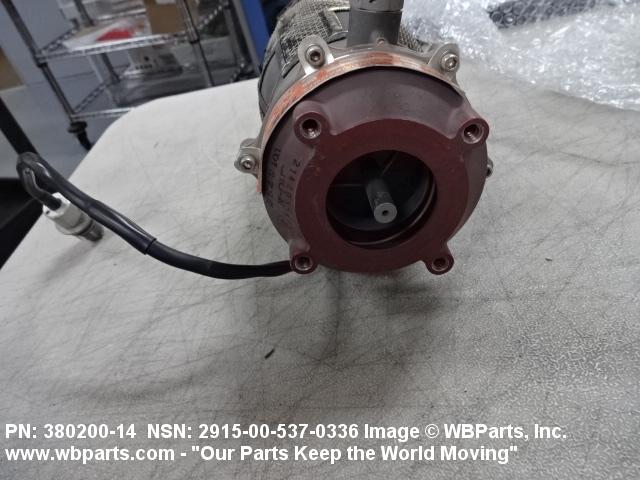

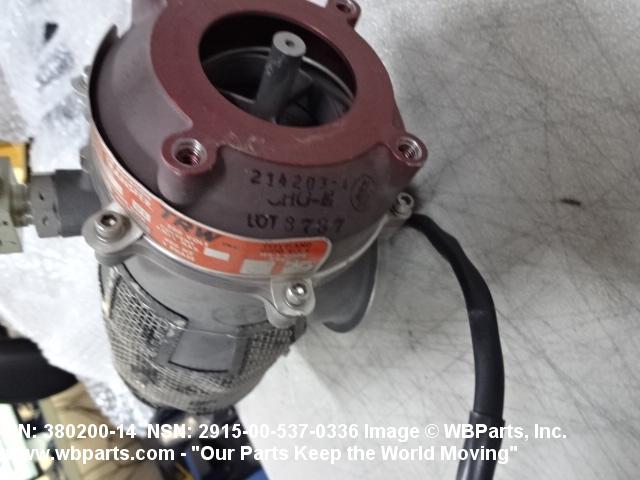

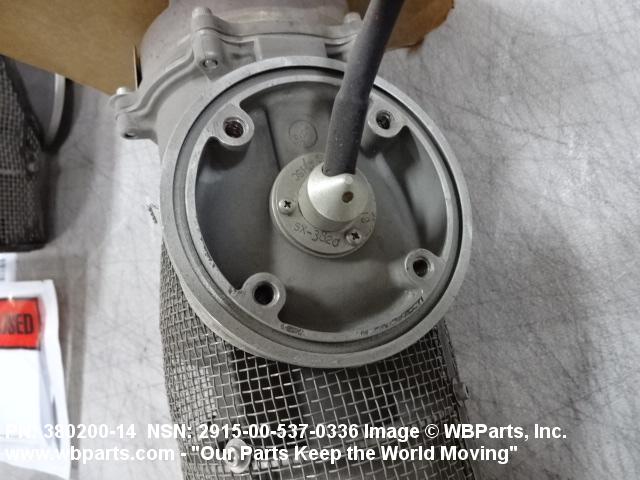

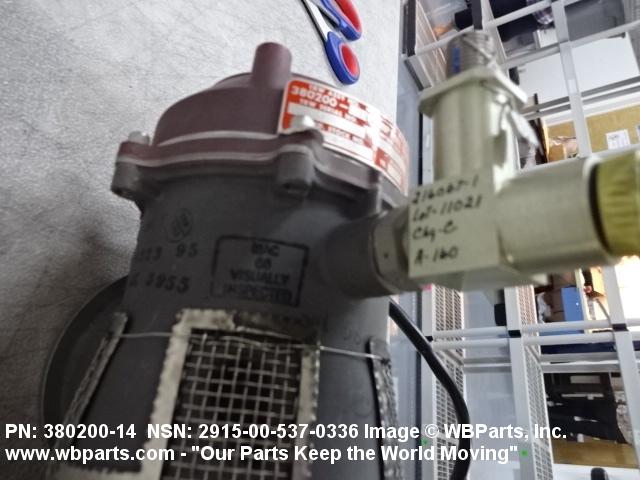

Drawings & Photos | NSN 2915-00-537-0336
Demand History | NSN 2915-00-537-0336
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2915-00-537-0336 | 2018-08-221 | 8 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2915-00-537-0336
Related Products | NSN 2915-00-537-0336
Technical Data | NSN 2915-00-537-0336
| Characteristic | Specifications |
|---|---|

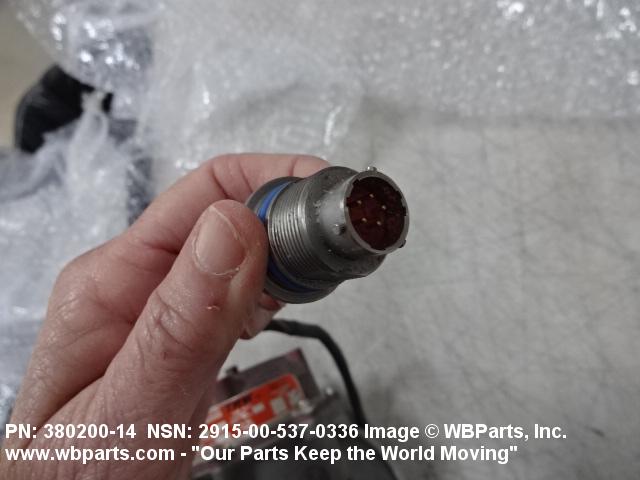

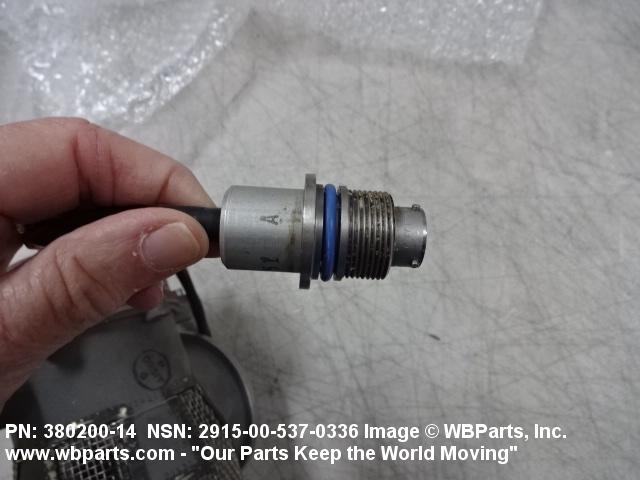

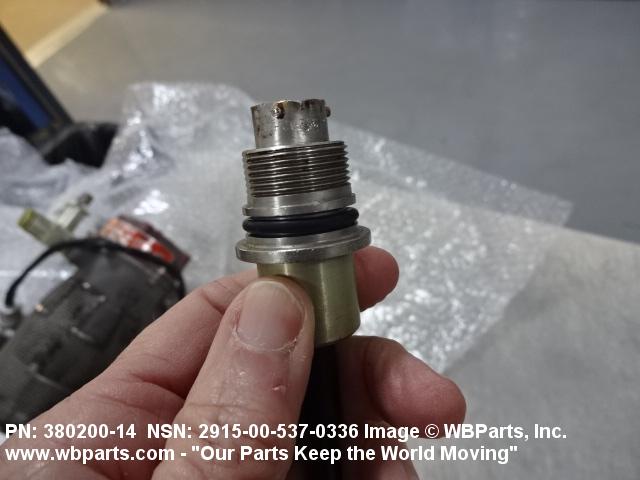

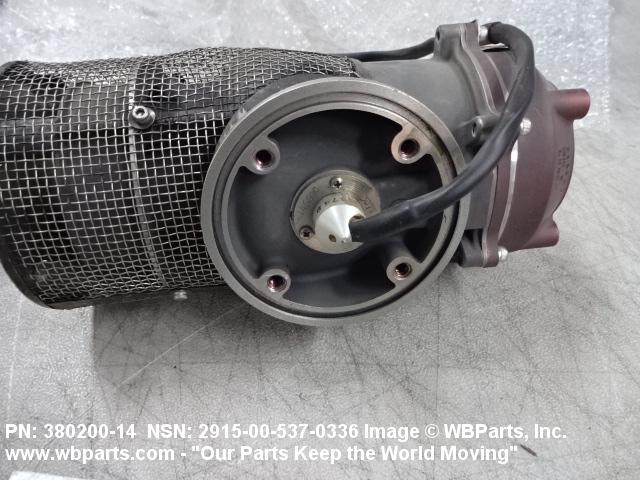

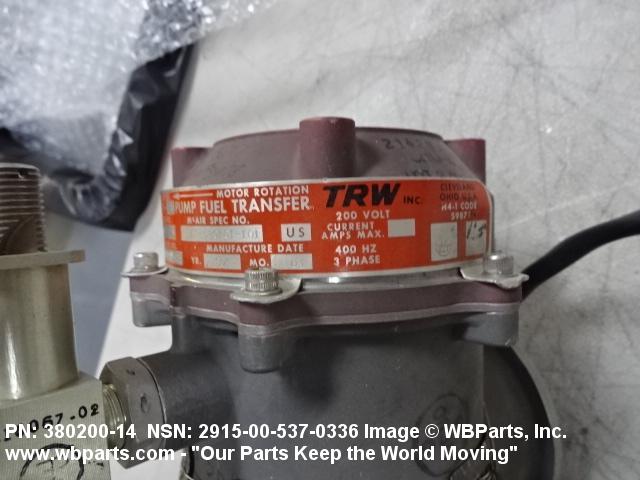

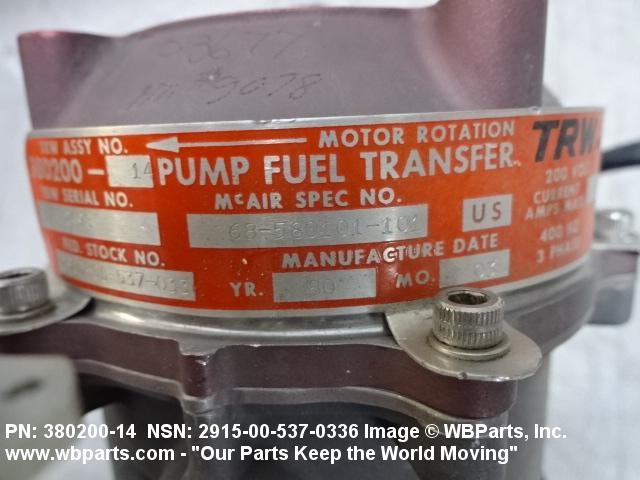

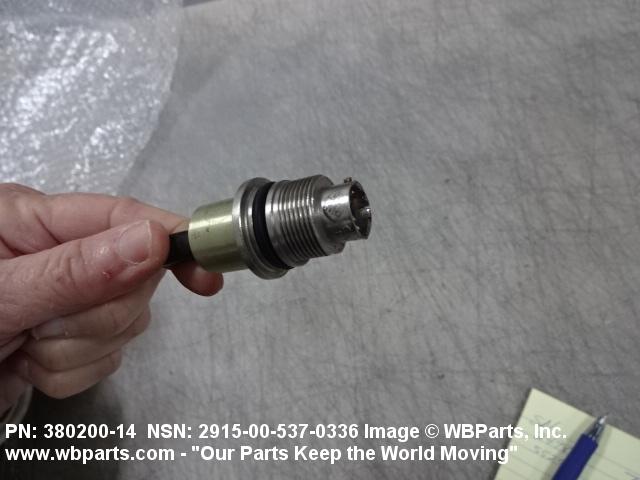

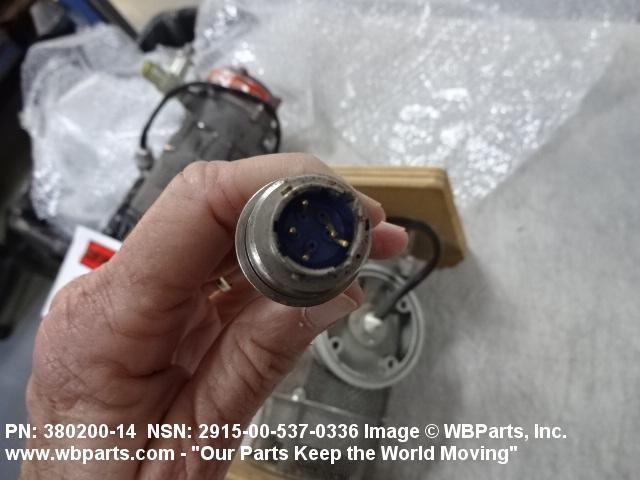

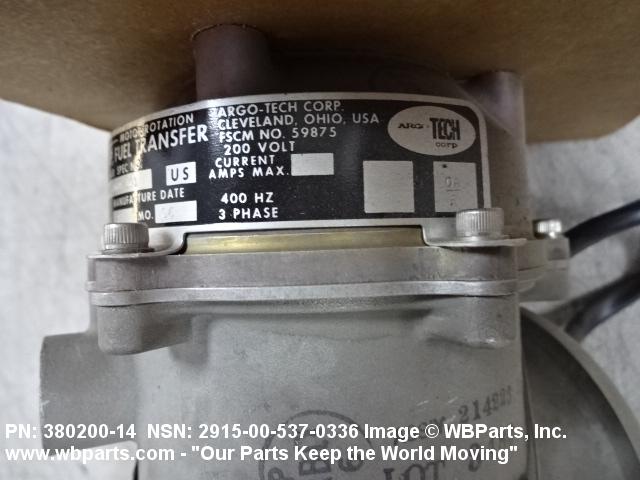

| GENERAL CHARACTERISTICS ITEM DESCRIPTION | DESIGNED FOR PARTIALLY SUBMERGED OPERATION,NON POSITIVE DISPLACEMENT,1 IMPELLER,115/200V AC,400 CPS,3 PH,100 GPM AT 9 PSI W/JP4 FUEL,9.935 IN. LG,4.800 IN. W,4.710 IN. H O/A DIM.,W/CHECK VALVE,W/3 THERMAL PROTECTORS,4 MTG HOLES 1/4-28 UNF3B THD EQUISPACED 2 IN. BY 2 IN. C TO C ON 3.960 IN. DIA BOSS,5 CONTACT MS TYPE ELECTRICAL CONNECTOR PLUG ON 14 IN. LG CABLE |
| III END ITEM IDENTIFICATION | ACFT MOD F15 |
| MANUFACTURERS CODE | 59875 |
| DESIGN CONTROL REFERENCE | 380200-14 |
Restrictions/Controls & Freight Information | NSN 2915-00-537-0336
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127600 | PUMPS CIRC/FUEL I/C ENG |
| Less than car load rating | M | 85 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 1 | Aircraft engine, internal combustion engines and fuel control devices |
Management | NSN 2915-00-537-0336
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RK | SX:AEROSPACE SUPPORT ACCESSORIES |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | FHZ | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-5989 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | T | AF Recoverable Assembly Management System (AFRAMS) |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7R | Aeronautical Depot Level Repairable Spares Naval Inventory Control Point, Philadelphia |
| Special Material ID | SF | FIGHTERAIRCRAFT(F18) |
| Issue Repair, or Requisition | AR | Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
