NSN 2910-01-496-6538 016487 , 11981055650, 119810-55650
Product Details | FLUID FILTER ELEMENT
2910-01-496-6538 A replaceable device designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous material (metallic or non-metallic), stacked disks, wound wire, or the like, constructed so the fluid can flow through the device while the solid particles are retained. It may be designed to fit into a FILTER, FLUID (or similar cavity), or it may have an integral outer casing and mounting facilities and be designed to connect directly to an engine, compressor, or the like. The degree of removal of particles must be nominally rated at less than 50 microns or absolutely rated at less than 75 microns. Excludes FILTER ELEMENT, AIR CONDITIONING. See also STRAINER ELEMENT, SEDIMENT.20916500058Aircraft Hydraulic, Vacuum, and De-icing System Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters5999000065300053Hospital Furniture, Equipment, Utensils, and Supplies66300029Chemical Analysis Instruments
Part Alternates: 016487 , 11981055650, 119810-55650, 2910-01-496-6538, 01-496-6538, 2910014966538, 014966538
Engine Accessories | Engine Fuel System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 23 APR 2002 | 01-496-6538 | 32624 ( FILTER ELEMENT, FLUID ) |
Drawings & Photos | NSN 2910-01-496-6538
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2910-01-496-6538
Technical Data | NSN 2910-01-496-6538
| Characteristic | Specifications |
|---|---|

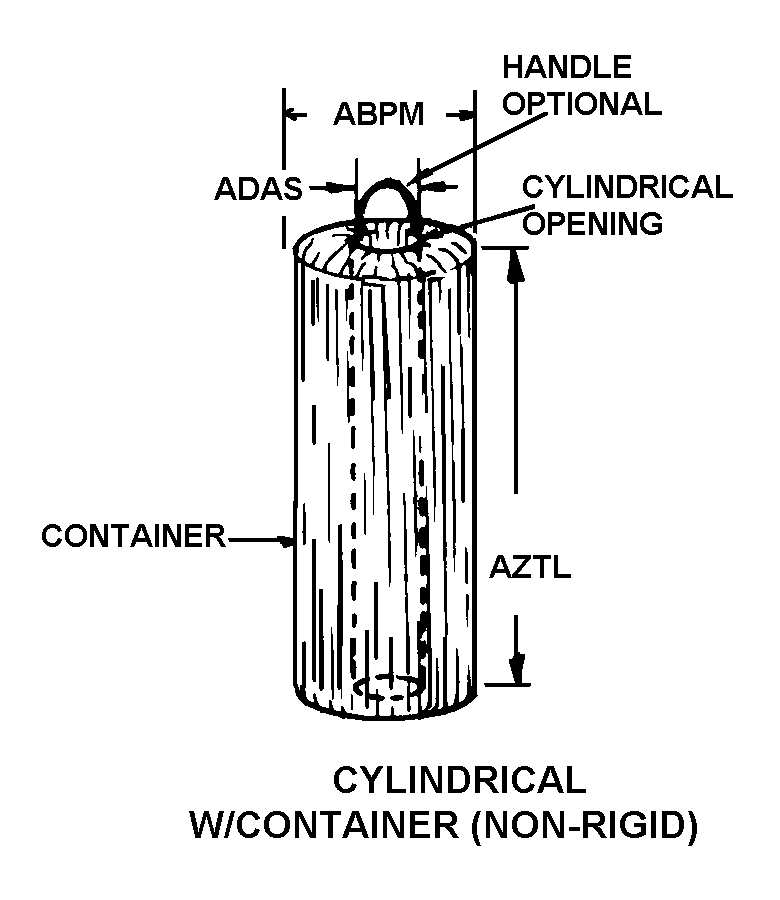

| STYLE DESIGNATOR | A12 CYLINDRICAL W/CONTAINER |
| DESIGN TYPE | NONREUSABLE |
| FLOW DIRECTION | INSIDE OUT |
| MEDIA FOR WHICH DESIGNED | FUEL/OIL, HYDROCARBON |
| FILTERING SURFACE AREA | 432.0 SQUARE CENTIMETERS |
| FILTERING SYSTEM FOR WHICH DESIGNED | FULL FLOW |
| SPECIAL FEATURES | USED ON THE FUEL FILTER ASSEMBLY: P/N 119833-55620; APPLICABLE ENGINES: 3TNE78A & 3TNE82A |
| III END ITEM IDENTIFICATION | INTERIM ARMORED VEHICLE (IAV), CONTRACTOR LOGISTICS SUPPORT (CLS). |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | ELEMENT |
Restrictions/Controls & Freight Information | NSN 2910-01-496-6538
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 2910-01-496-6538
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | K | Tactical and Support Vehicles, Combat and Automotive Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | M | Armored Carriers |
| Weapons Systems/End Item or Homogeneous Group | M8 | Light Armored Vehicle |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | AKZ | US Army Tank-Automotive and Armaments Command Warren, MI 48397-5000 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
