NSN 2910-00-985-2410 M23755, 294336C91, 153497R91
Product Details | CAM ACTUATED FUEL PUMP
2910-00-985-2410 A device designed to transfer liquid fuel from a tank to a carburetor, or fuel injector metering and distribution pump of an internal combustion engine. Reciprocating motion of the diaphragm(s) is actuated through linkage from the engine camshaft. It may include a diaphragm actuated vacuum booster. Excludes electrical and rotor type engine fuel pumps.20229100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers
Part Alternates: M23755, 294336C91, 153497R91, 2910-00-985-2410, 00-985-2410, 2910009852410, 009852410
Engine Accessories | Engine Fuel System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 24 OCT 1966 | 00-985-2410 | 22184 ( PUMP, FUEL, CAM ACTUATED ) |

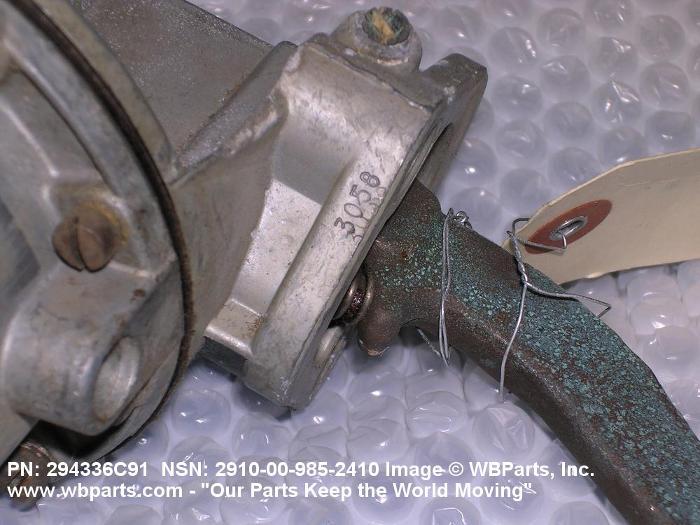

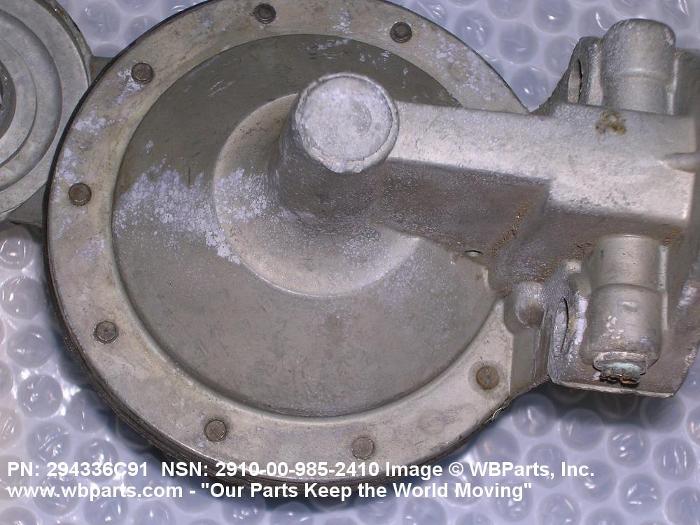

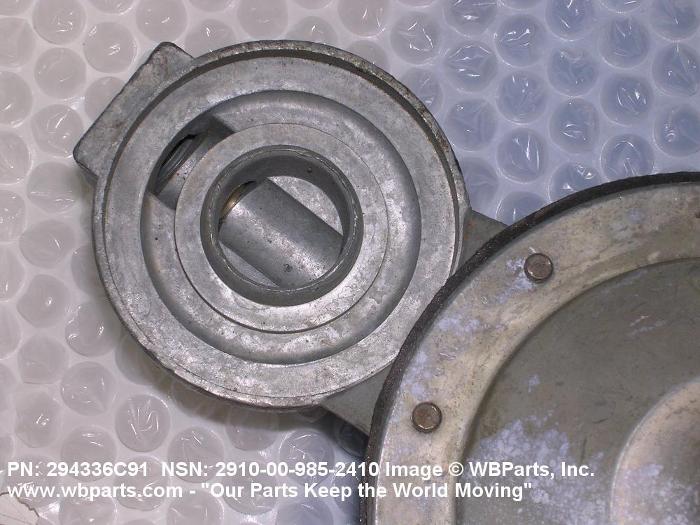

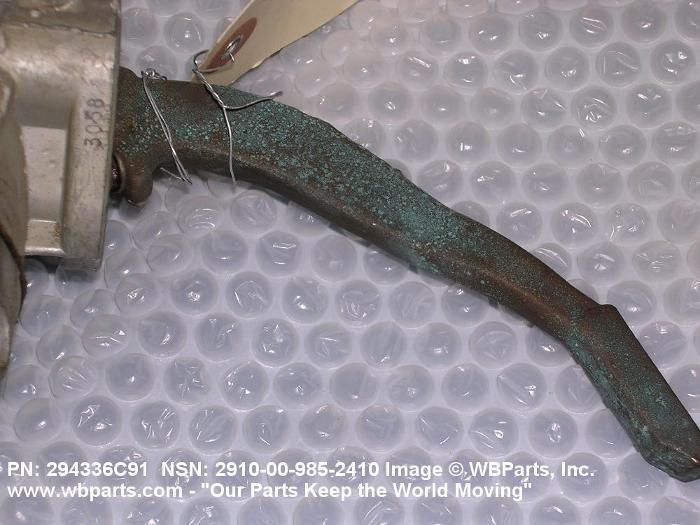

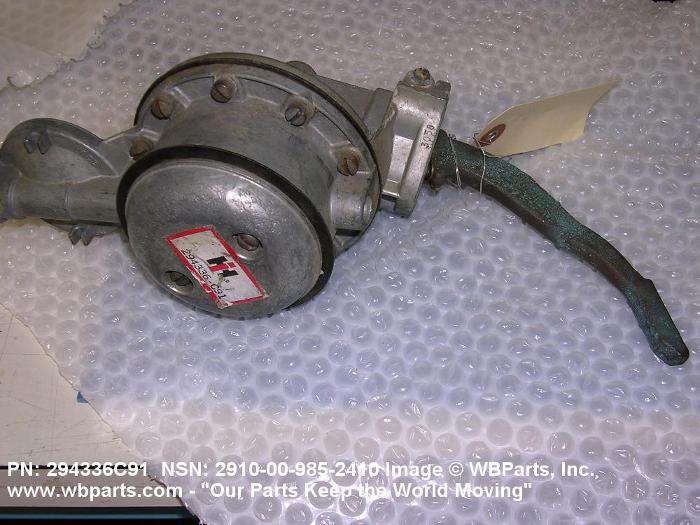

Drawings & Photos | NSN 2910-00-985-2410
Demand History | NSN 2910-00-985-2410
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 294336C91 | 2011-02-41 | 1 | United States |
| 2910-00-985-2410 | 2009-10-288 | 1 | US |
| 2910-00-985-2410 | 2009-10-288 | 1 | US |
Cross Reference | NSN 2910-00-985-2410
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 153497R91 | 0SAT8 | KOMATSU AMERICA CORP. |
| 153497R91 | 29510 | KOMATSU AMERICAN INTL CO |
| 153497R91 | 92679 | NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION |
| 294336C91 | 0SAT8 | KOMATSU AMERICA CORP. |
| 294336C91 | 29510 | KOMATSU AMERICAN INTL CO |
| 294336C91 | 45RP7 | DRESSTA NORTH AMERICA LTD |
| 294336C91 | 92679 | NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION |
| M23755 | 24617 | GENERAL MOTORS CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2910-00-985-2410
Technical Data | NSN 2910-00-985-2410
| Characteristic | Specifications |
|---|---|
| VACUUM BOOSTER | NOT INCLUDED |
| FUEL FILTER | INCLUDED |
| FUEL FILTER LOCATION | SIDE |
| ACTUATION METHOD | DIRECT CAM |
| STROKE LENGTH | 0.375 INCHES NOMINAL |
| PRIMING LEVER | NOT INCLUDED |
| OVERALL LENGTH | 6.375 INCHES NOMINAL |
| OVERALL WIDTH | 3.875 INCHES NOMINAL |
| OVERALL HEIGHT | 5.000 INCHES NOMINAL |
| MOUNTING TYPE | SAE PREFERRED |
| DISTANCE FROM PUMP MOUNTING FACE TO ACTUATOR CENTER | 4.250 IN. TO CENTER OF ACTUATING LEVER CONTACT SURFACE |
| INLET CONNECTION TYPE/SIZE | 0.250 IN. PIPE SIZE |
| OUTLET CONNECTION TYPE/SIZE | 0.125 IN. PIPE SIZE |
| FORDING FEATURE | NOT INCLUDED |
| DRAIN FACILITY | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 2910-00-985-2410
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127600 | PUMPS CIRC/FUEL I/C ENG |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2910-00-985-2410
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
F EA : Each |
