NSN 2910-00-541-3486 2536782, 253678-2, 3375019001
Product Details | FLUID FILTER ELEMENT
2910-00-541-3486 A replaceable device designed to remove solid particles from fluids ranging in density from heavy liquids to gases. The removal of particles is accomplished by porous material (metallic or non-metallic), stacked disks, wound wire, or the like, constructed so the fluid can flow through the device while the solid particles are retained. It may be designed to fit into a FILTER, FLUID (or similar cavity), or it may have an integral outer casing and mounting facilities and be designed to connect directly to an engine, compressor, or the like. The degree of removal of particles must be nominally rated at less than 50 microns or absolutely rated at less than 75 microns. Excludes FILTER ELEMENT, AIR CONDITIONING. See also STRAINER ELEMENT, SEDIMENT.20916500058Aircraft Hydraulic, Vacuum, and De-icing System Components29100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers29400064Engine Air and Oil Filters, Strainers, and Cleaners, Nonaircraft29450059Engine Air and Oil Filters, Cleaners, Aircraft Prime Moving43300057Centrifugals, Separators, and Pressure and Vacuum Filters5999000065300053Hospital Furniture, Equipment, Utensils, and Supplies66300029Chemical Analysis Instruments
Part Alternates: 2536782, 253678-2, 3375019001, 337-501-9001, 50312, 56591, 56951, 8110, 2910-00-541-3486, 00-541-3486, 2910005413486, 005413486
Engine Accessories | Engine Fuel System Components, Nonaircraft
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | 01 JAN 1963 | 00-541-3486 | 32624 ( FILTER ELEMENT, FLUID ) |

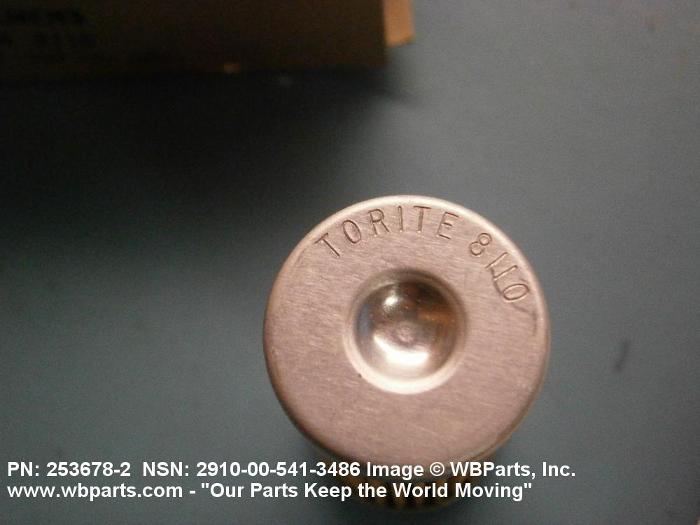

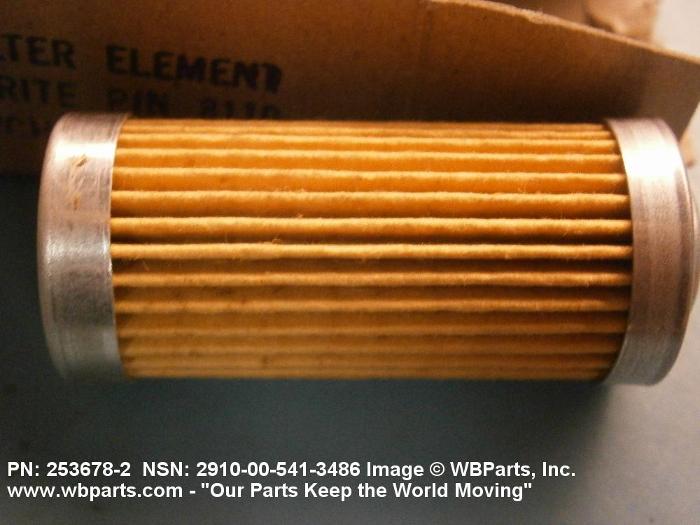

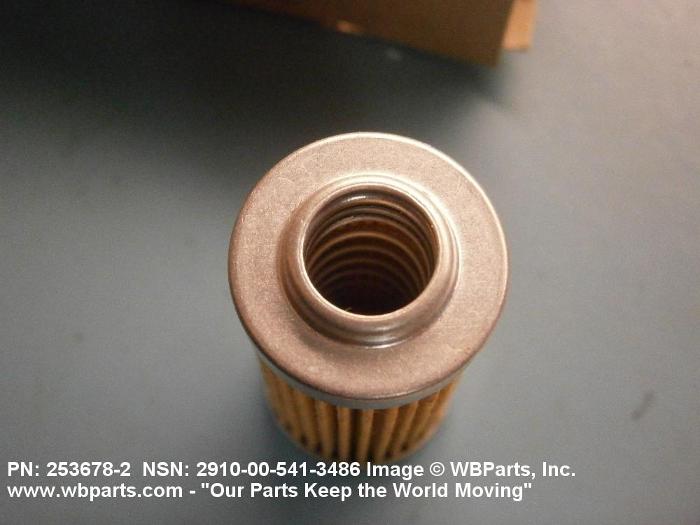

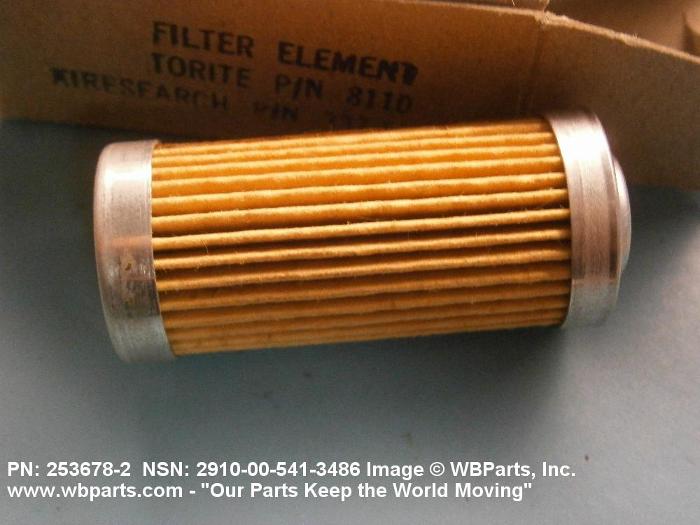

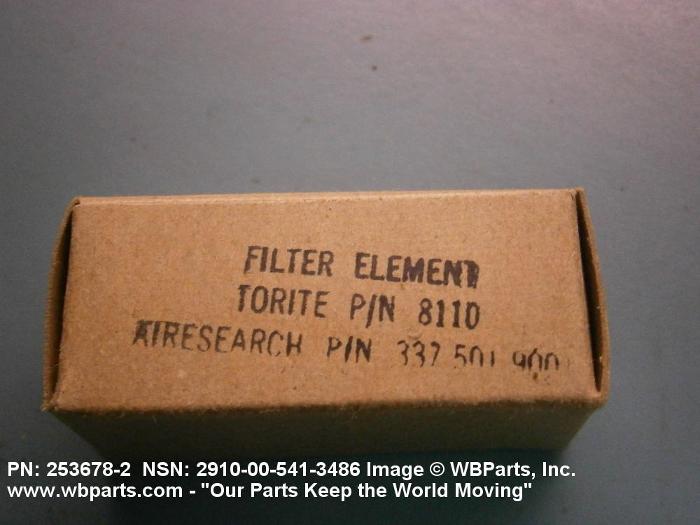

Drawings & Photos | NSN 2910-00-541-3486
Demand History | NSN 2910-00-541-3486
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 56951 | 2016-03-68 | 1 | US |
| 56951 | 2014-05-149 | 1 | US |
| 2910-00-541-3486 | 2013-10-304 | 10 | United Kingdom |
| 337-501-9001 | 2012-10-304 | 50 | |
| 56591 | 2012-09-262 | 344 | US |
| 2910-00-541-3486 | 2012-07-209 | 200 | United States |
| 56951 | 2012-06-178 | 5 | PK |
| 56951 | 2012-05-136 | 200 | |
| 337-501-9001 | 2012-03-65 | 50 | |
| 56951 | 2012-03-65 | 200 | |
| 56591 | 2012-01-09 | 16 | KR |
| 8110 | 2010-12-341 | 2 | us |
Cross Reference | NSN 2910-00-541-3486
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 253678-2 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 337-501-9001 | 72599 | ALLIEDSIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO |
| 337-501-9001 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 50312 | 64829 | ARVINMERITOR INC |
| 56591 | 64829 | ARVINMERITOR INC |
| 56951 | 05228 | PTI TECHNOLOGIES INC. |
| 56951 | 64829 | ARVINMERITOR INC |
| 56951 | 72599 | ALLIEDSIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO |
| 56951 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 8110 | 13520 | WESTERN FILTER, A DIVISION OF DONALDSON COMPANY, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2910-00-541-3486
Technical Data | NSN 2910-00-541-3486
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A19 CYLINDRICAL W/CLOSED ENDS |
| BODY DIAMETER | 0.797 INCHES MINIMUM AND 0.859 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.374 INCHES MINIMUM AND 0.406 INCHES MAXIMUM |
| BODY OVERALL LENGTH | 1.870 INCHES MINIMUM AND 1.950 INCHES MAXIMUM |
| MATERIAL | PAPER FILTERING MEDIUM |
| FILTERING MEDIA DESIGN | PLEATED SINGLE FILTERING MEDIA RESPONSE |
| DESIGN TYPE | NONREUSABLE |
| FILTRATION RATING IN MICRONS | NOT RATED |
| FLOW DIRECTION | INSIDE OUT |
| MEDIA FOR WHICH DESIGNED | ANY ACCEPTABLE |
| TEMP RATING | NOT RATED |
| DROP PRESSURE | NOT RATED |
| DIFFERENTIAL PRESSURE | NOT RATED |
| FILTERING SURFACE AREA | ANY ACCEPTABLE |
| SPECIAL FEATURES | ONE END CLOSED SECOND END W/HUB 1/2 IN. OD BY 19/64 IN. LG |
Restrictions/Controls & Freight Information | NSN 2910-00-541-3486
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133320 | MACHINERY PARTS OIL/FUEL FILTER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2910-00-541-3486
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
