Product Details | SEAL RUNNER

2840-01-143-3832

Part Alternates: 37908, 2840-01-143-3832, 01-143-3832, 2840011433832, 011433832

Engines, Turbines, and Components | Gas Turbines and Jet Engines, Aircraft, Prime Moving; and Components

Supply Group (FSG) NSN Assign. NIIN
28 02 DEC 1982 01-143-3832

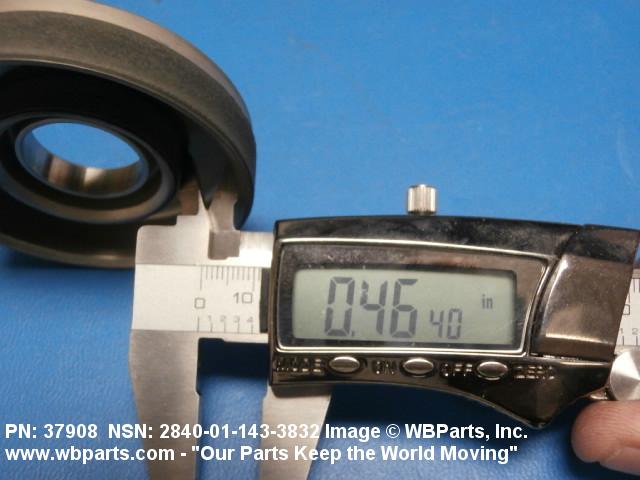

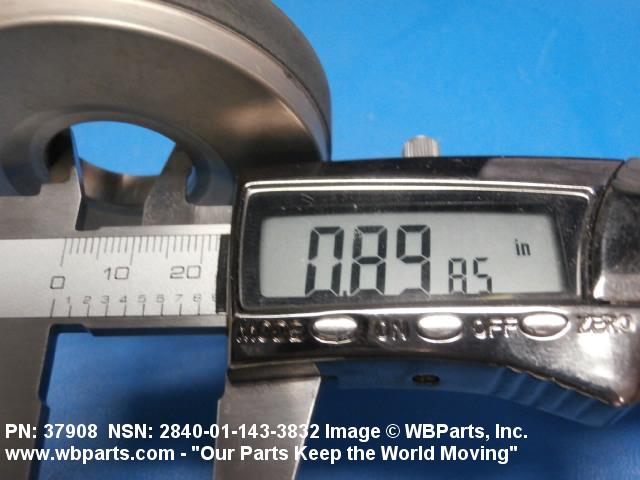

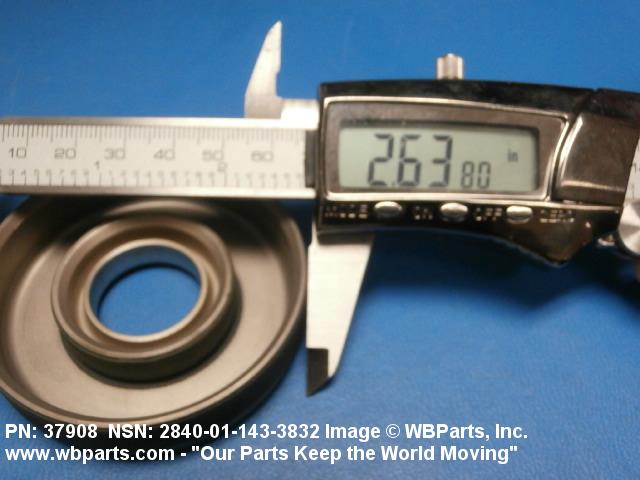

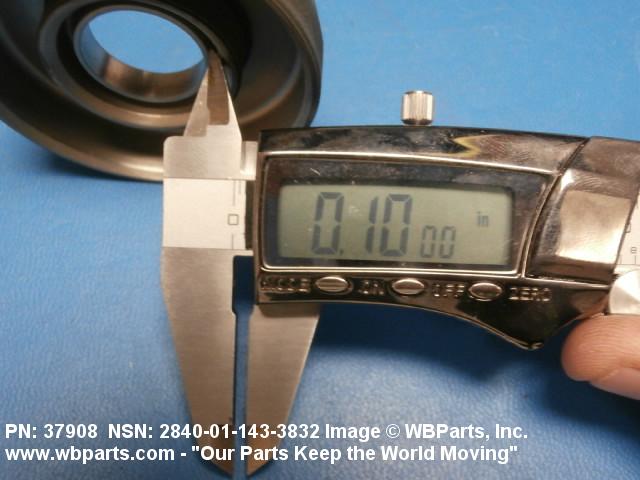

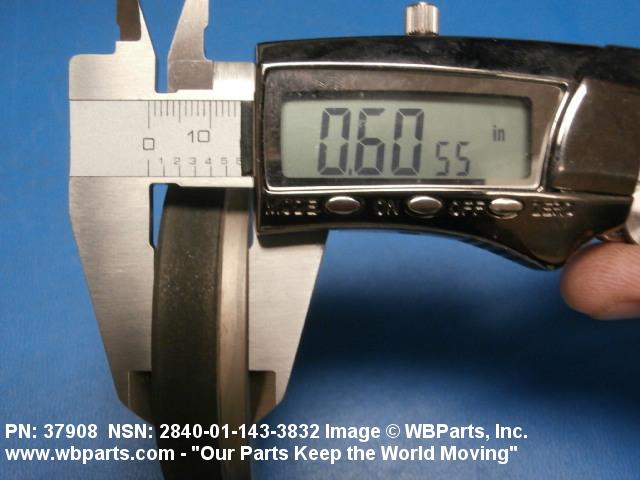

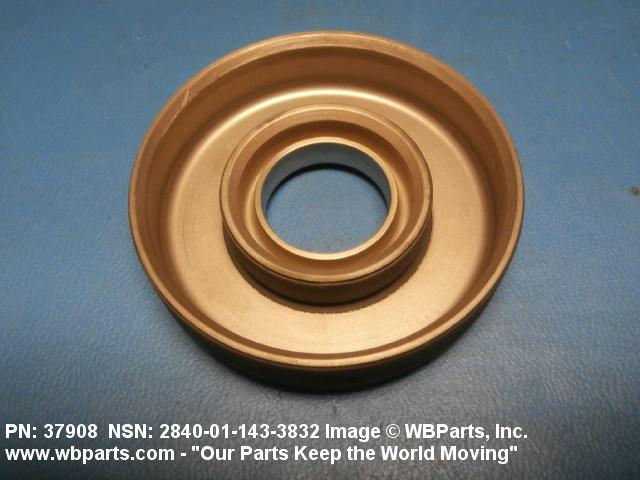

Drawings & Photos | NSN 2840-01-143-3832


Demand History | NSN 2840-01-143-3832

Part Number Request Date QTY Origin
2840-01-143-3832 2018-09-267 3 United States
2840-01-143-3832 2017-01-10 151 DIBBS
2840-01-143-3832 2016-11-313 151 DIBBS
2840-01-143-3832 2016-10-305 151 DIBBS
2840-01-143-3832 2016-09-251 20 DIBBS
2840-01-143-3832 2016-04-113 149 DIBBS
2840-01-143-3832 2016-04-105 149 DIBBS
2840-01-143-3832 2016-01-26 83 DIBBS
2840-01-143-3832 2016-01-18 83 DIBBS
2840-01-143-3832 2015-11-327 65 United States
2840-01-143-3832 2015-11-314 65 DIBBS
2840-01-143-3832 2015-11-305 65 DIBBS
2840-01-143-3832 2015-11-305 65 DIBBS
2840-01-143-3832 2015-10-278 396 DIBBS

Cross Reference | NSN 2840-01-143-3832

Part Number Cage Code Manufacturer
37908 24235 WILLIAMS INTERNATIONAL CO., L.L.C.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2840-01-143-3832

Technical Data | NSN 2840-01-143-3832

Characteristic Specifications
GENERAL CHARACTERISTICS ITEM DESCRIPTION STEEL,NICKEL PLATE,NO. 5 SEAL;2.606 IN. OD,0.898 IN. ID;0.609 MIN IN. 0.631 MAX IN. W
III END ITEM IDENTIFICATION ACFT ENG F107
MANUFACTURERS CODE 24235
DESIGN CONTROL REFERENCE 37908

Restrictions/Controls & Freight Information | NSN 2840-01-143-3832

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 133300 MACHINERY/MACHINES NOI
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 593 unknown
Originating Activity Code SX Oklahoma City Air Logistics Center
Tinker AFB, OK 73145-3043
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 2840-01-143-3832

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Materiel Management Aggregation CodePVSX:F107-WR-100 ENGINES
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
