NSN 2840-01-018-0502 615164, 01-018-0502, 010180502
Product Details | AIRCRAFT GAS TURBINE ENGINE LUBRICATING NOZZLE
2840-01-018-0502 An item designed to direct and control a mist, spray, or stream of lubricating oil inside an ENGINE, GAS TURBINE, AIRCRAFT.
Part Alternates: 615164, 2840-01-018-0502, 01-018-0502, 2840010180502, 010180502
Engines, Turbines, and Components | Gas Turbines and Jet Engines, Aircraft, Prime Moving; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 20 MAR 1976 | 01-018-0502 | 50352 ( NOZZLE, LUBRICATING, AIRCRAFT GAS TURBINE ENGINE ) |

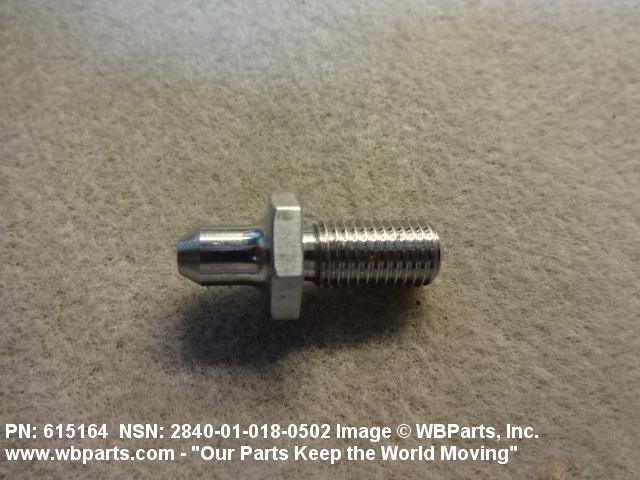

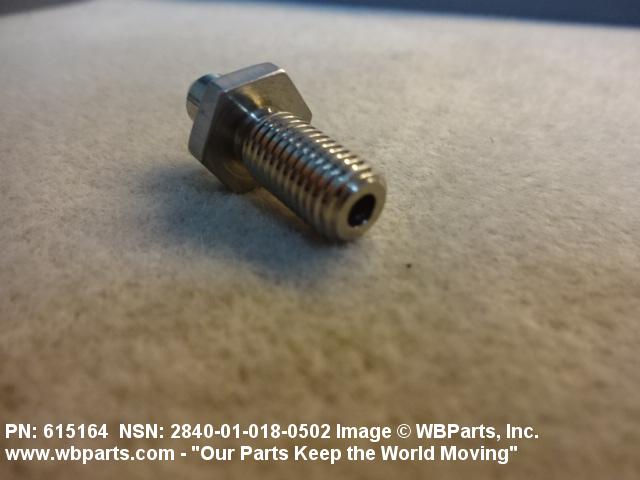

Drawings & Photos | NSN 2840-01-018-0502
Demand History | NSN 2840-01-018-0502
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2840-01-018-0502 | 2020-09-246 | 1728 | us |
| 2840-01-018-0502 | 2019-01-17 | 79 | United States |
| 2840-01-018-0502 | 2018-11-324 | 79 | DIBBS |
| 2840-01-018-0502 | 2018-11-310 | 79 | DIBBS |
| 2840-01-018-0502 | 2017-12-339 | 23 | DIBBS |
| 2840-01-018-0502 | 2017-06-170 | 18 | DIBBS |
| 2840-01-018-0502 | 2017-06-157 | 18 | DIBBS |
| 2840-01-018-0502 | 2016-04-96 | 14 | DIBBS |
Cross Reference | NSN 2840-01-018-0502
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 615164 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2840-01-018-0502
Related Products | NSN 2840-01-018-0502
Technical Data | NSN 2840-01-018-0502
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5646 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| ENGINE SECTION LOCATION | ACCESSORY GEARBOX |

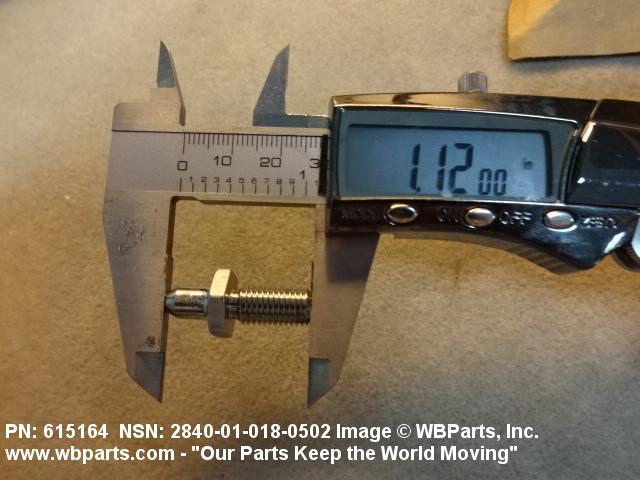

| OVERALL LENGTH | 1.120 INCHES NOMINAL |

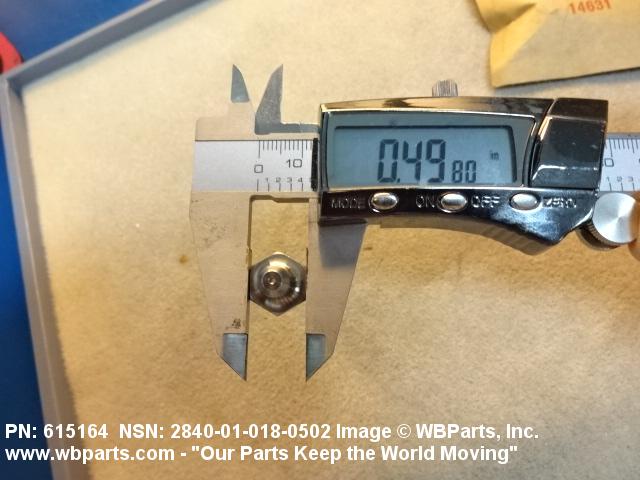

| OVERALL WIDTH | 0.492 INCHES MINIMUM AND 0.502 INCHES MAXIMUM |
| CRITICALITY CODE JUSTIFICATION | CZBJ AND ABMK |
| END ITEM IDENTIFICATION | ACFT ENG TF33 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | ORIGINAL NAME NOZZLE,GEARBOX |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | 615164 |
Restrictions/Controls & Freight Information | NSN 2840-01-018-0502
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 030660 | BBC NOZZLES NOI IN BBL/BX |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2840-01-018-0502
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | D | The contract unit price, which is the basis for the standard price, has been analyzed and is considered to be excessive. Price change is deferred because the item is not in a buy status.
|
| Materiel Management Aggregation Code | RV | SX:PRATT & WHITNEY JET ENGINES & COMPONENTS TF-33 |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
