NSN 2840-00-946-3798 577C897G5, 696D111G3, 7000M36G01
Product Details | AIRCRAFT GAS TURBINE ENGINE TURBINE SHROUD SEGMENT

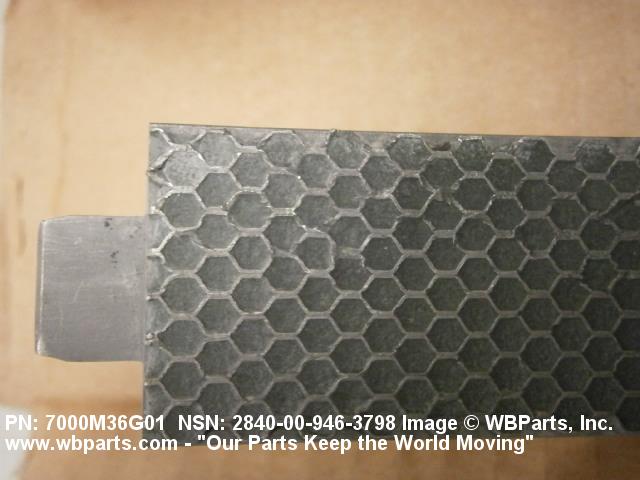

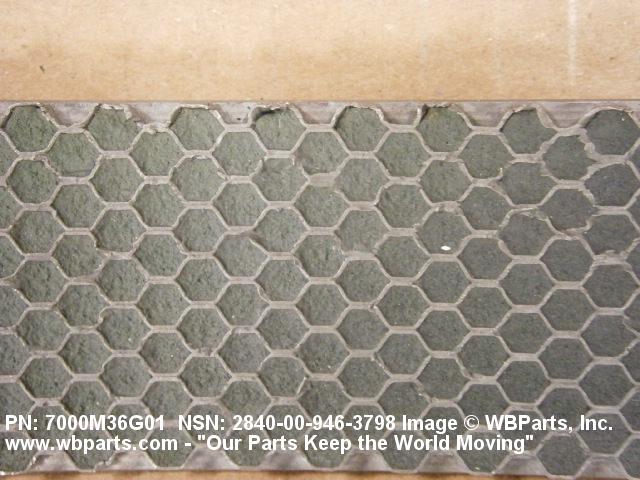

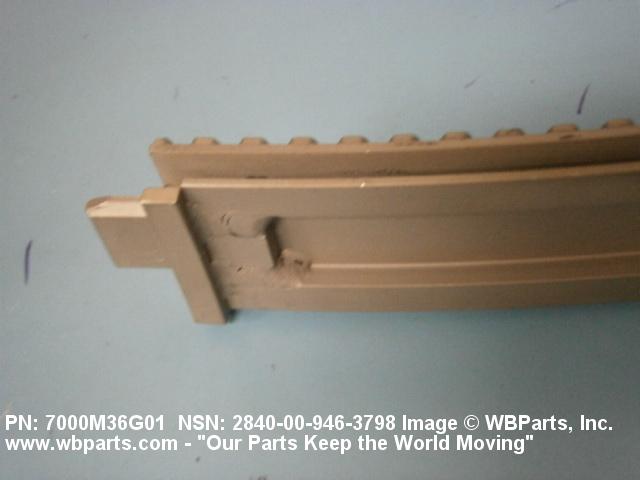

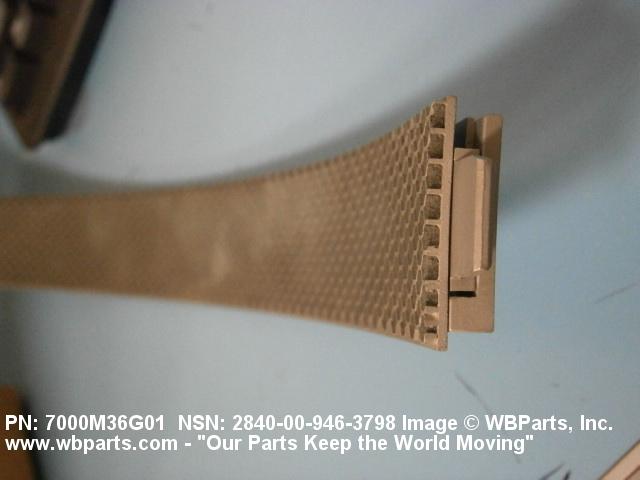

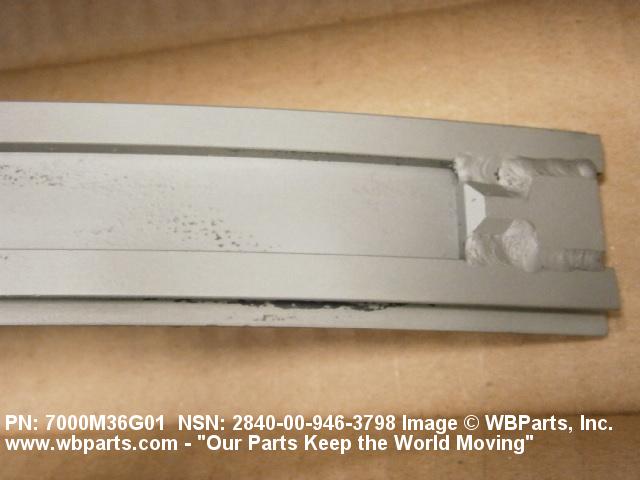

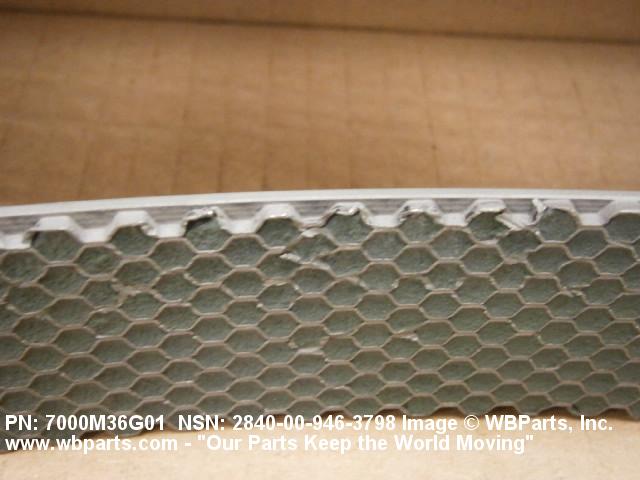

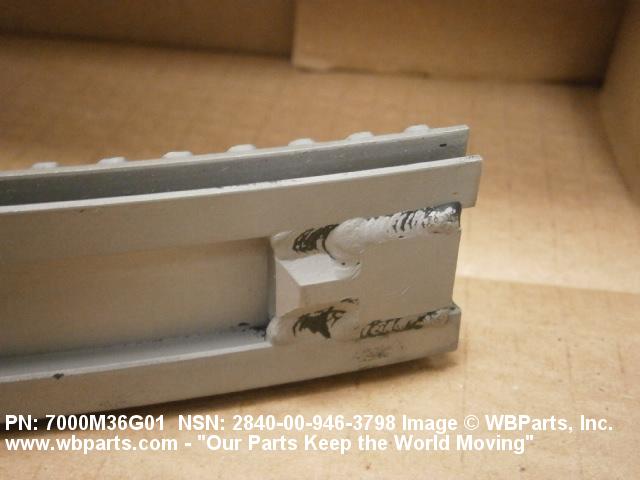

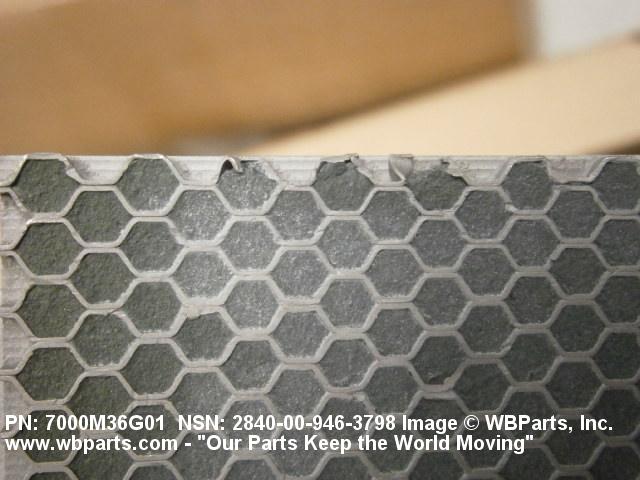

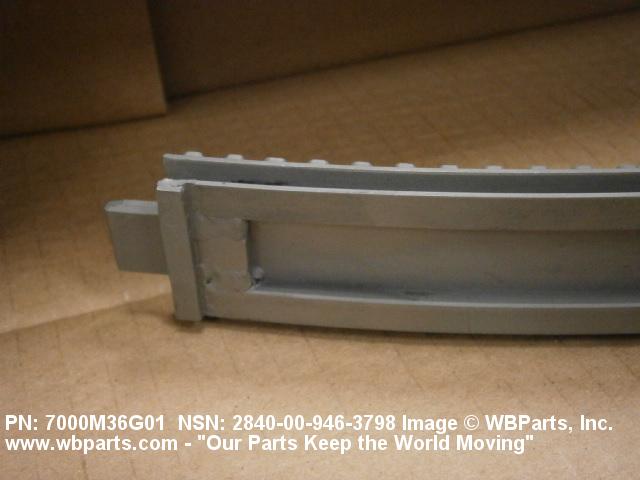

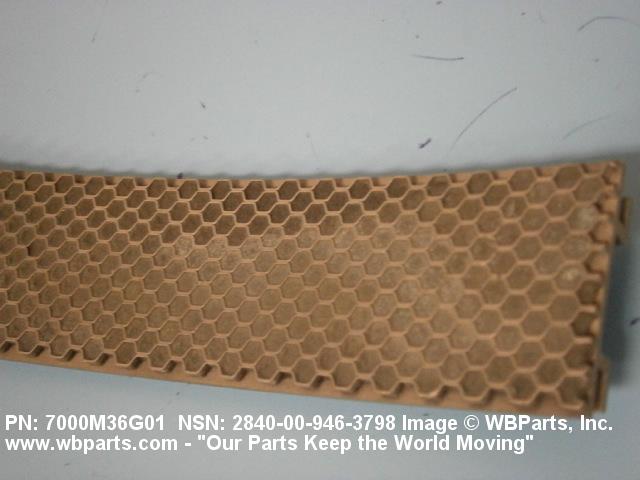

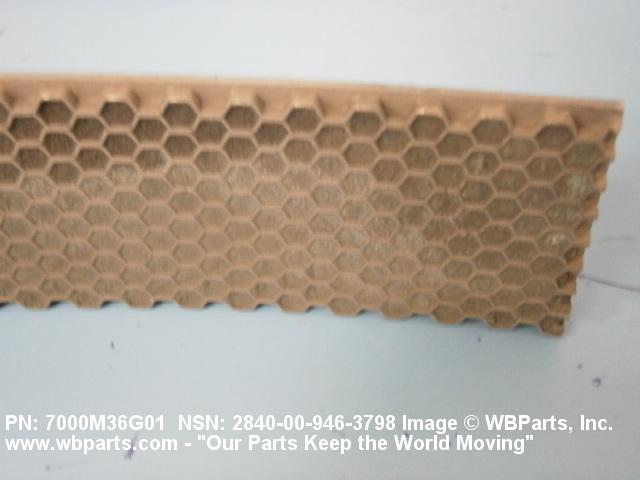

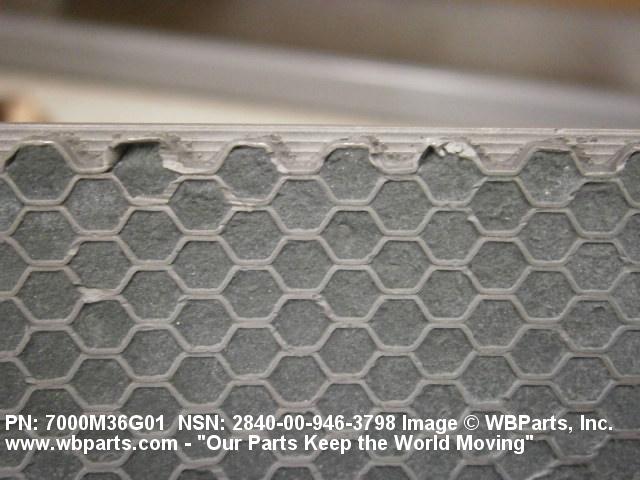

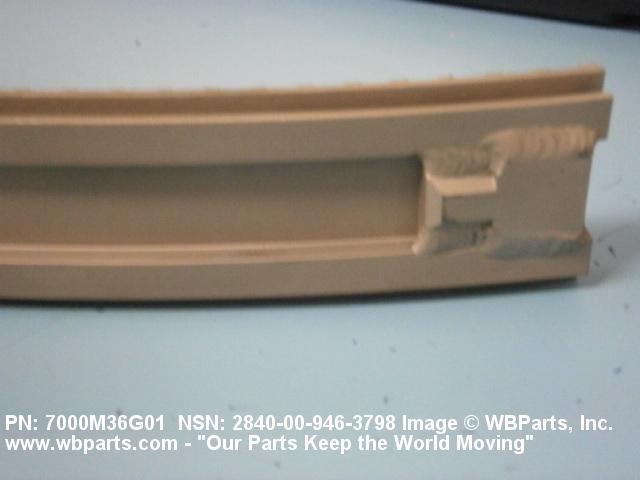

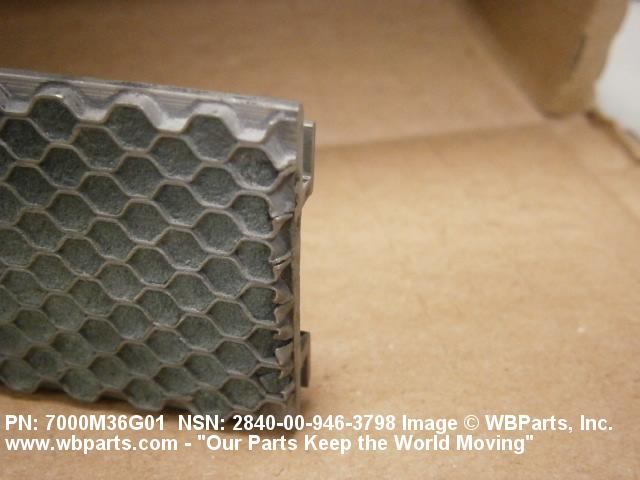

2840-00-946-3798 A stationary arched metal segment used to establish clearance and a seal for the tip of a BLADE, TURBINE ROTOR, AIRCRAFT GAS TURBINE ENGINE. The inner dimension may have open honeycomb or composition filled surface or may be formed by the knife edge metal protrusions of a SEAL RING, LABYRINTH, AIRCRAFT GAS TURBINE ENGINE.
Part Alternates: 577C897G5, 696D111G3, 7000M36G01, 2840-00-946-3798, 00-946-3798, 2840009463798, 009463798
Engines, Turbines, and Components | Gas Turbines and Jet Engines, Aircraft, Prime Moving; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 09 MAR 1966 | 00-946-3798 | 50603 ( SHROUD SEGMENT, TURBINE, AIRCRAFT GAS TURBINE ENGINE ) |

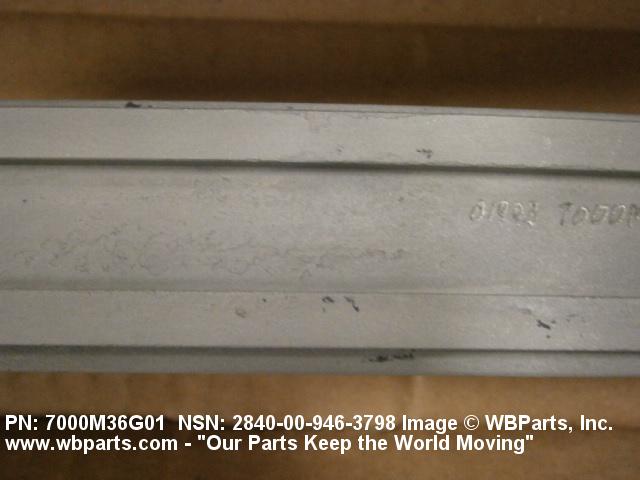

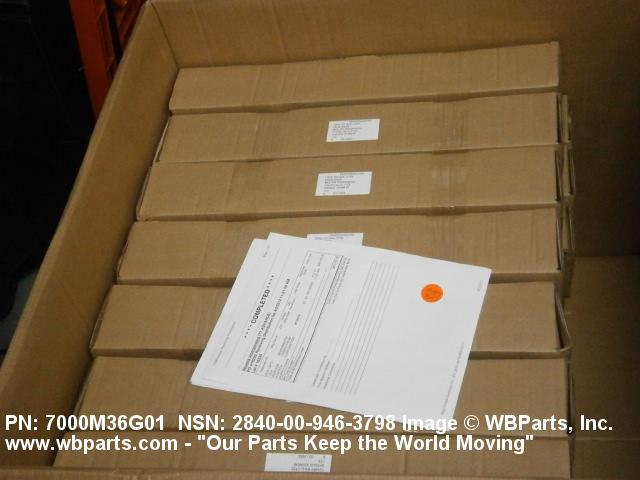

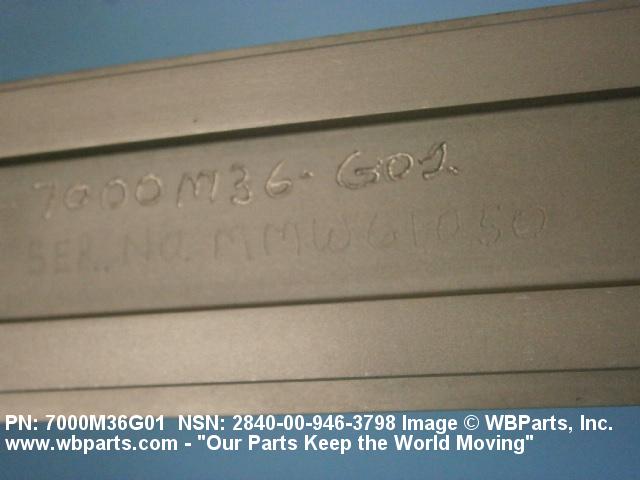

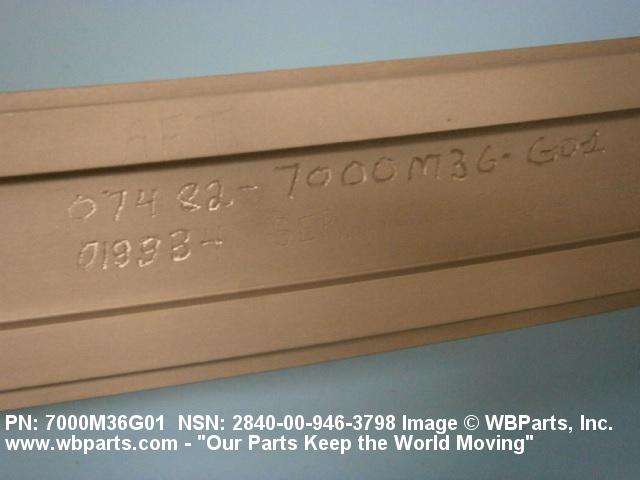

Drawings & Photos | NSN 2840-00-946-3798
Demand History | NSN 2840-00-946-3798
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7000M36G01 | 2015-11-306 | 9 | United States |
| 7000M36G01 | 2013-09-268 | 10 | ID |
| 2840-00-946-3798 | 2012-12-352 | 3 | DIBBS |
| 2840-00-946-3798 | 2012-03-80 | 0 | United States |
| 2840-00-946-3798 | 2012-03-67 | 0 | United States |
| 2840-00-946-3798 | 2012-02-54 | 28 | DIBBS |
| 2840-00-946-3798 | 2012-01-12 | 35 | DIBBS |
| 2840-00-946-3798 | 2011-10-299 | 28 | DIBBS |
| 2840-00-946-3798 | 2011-10-284 | 35 | DIBBS |
| 2840-00-946-3798 | 2010-10-285 | 23 | DIBBS |
| 2840-00-946-3798 | 2008-08-218 | 65 | DIBBS |
| 2840-00-946-3798 | 2007-12-358 | 75 | DIBBS |
| 2840-00-946-3798 | 2007-12-353 | 72 | DIBBS |
| 2840-00-946-3798 | 2007-12-338 | 72 | DIBBS |
| 2840-00-946-3798 | 2007-10-295 | 34 | DIBBS |
| 2840-00-946-3798 | 2007-08-225 | 13 | DIBBS |
| 2840-00-946-3798 | 2007-08-221 | 80 | DIBBS |
| 2840-00-946-3798 | 2007-04-103 | 143 | DIBBS |
| 2840-00-946-3798 | 2007-02-42 | 24 | DIBBS |
| 2840-00-946-3798 | 2007-02-36 | 119 | DIBBS |
Cross Reference | NSN 2840-00-946-3798
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2840-00-946-3798
Technical Data | NSN 2840-00-946-3798
| Characteristic | Specifications |
|---|---|
| CRITICALITY CODE JUSTIFICATION | AGAV |
| III END ITEM IDENTIFICATION | ACFT ENG J79, J85, T58, T64 |
Restrictions/Controls & Freight Information | NSN 2840-00-946-3798
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114030 | AFTERBURNERS JET AIRCRAFT |
| Less than car load rating | ||
| Less than truck load rating | D | 200.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2840-00-946-3798
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
