NSN 2840-00-922-8294 369A8301, 369A8301507, 369A8301-507
Product Details | TURBINE ENGINE LUBRICATING OIL TANK
2840-00-922-8294 A tank that is an integral part of the lubricating oil system of an ENGINE, GAS TURBINE, AIRCRAFT. The oil is pumped from the tank into the engine and returned to the tank in continuous cycles.
Part Alternates: 369A8301, 369A8301507, 369A8301-507, 90369A8301503, 90-369A8301-503, 2840-00-922-8294, 00-922-8294, 2840009228294, 009228294
Engines, Turbines, and Components | Gas Turbines and Jet Engines, Aircraft, Prime Moving; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 25 DEC 1965 | 00-922-8294 | 50360 ( TANK, LUBRICATING OIL, AIRCRAFT GAS TURBINE ENGINE ) |

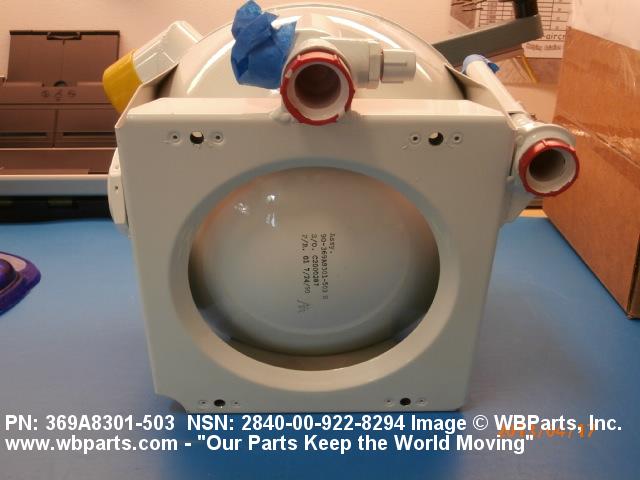

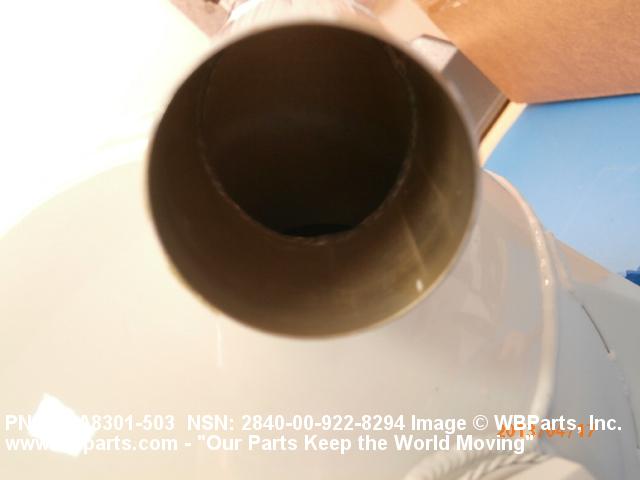

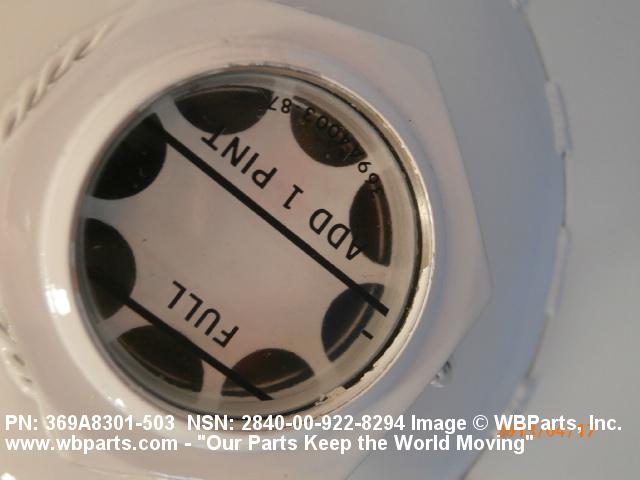

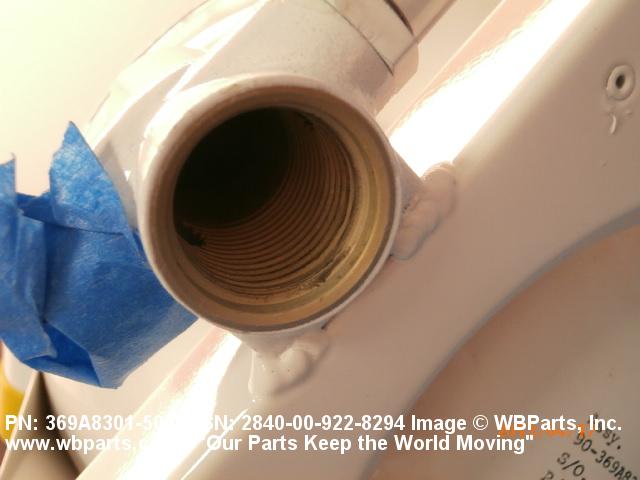

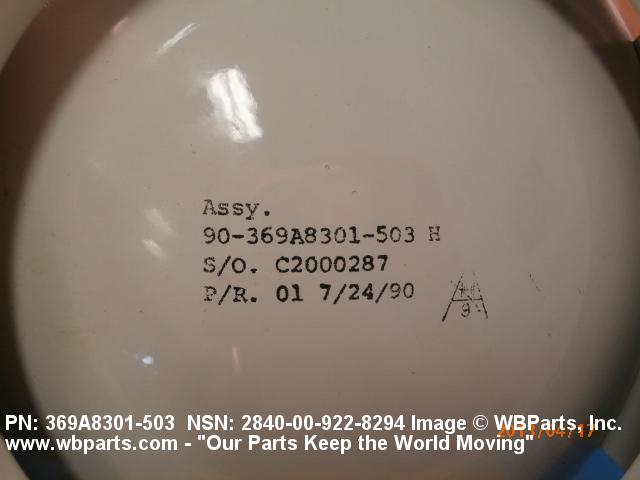

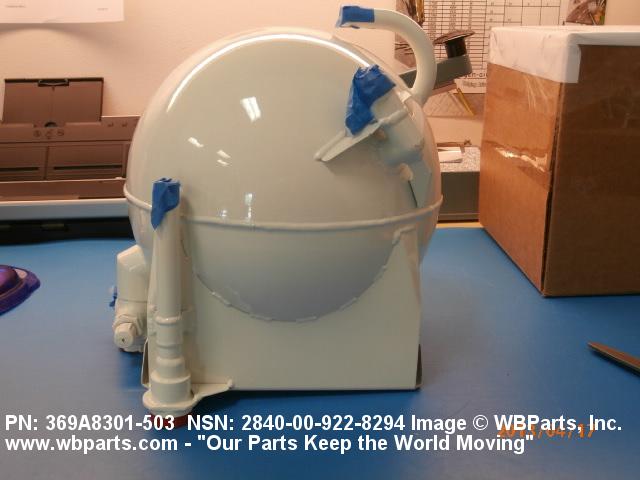

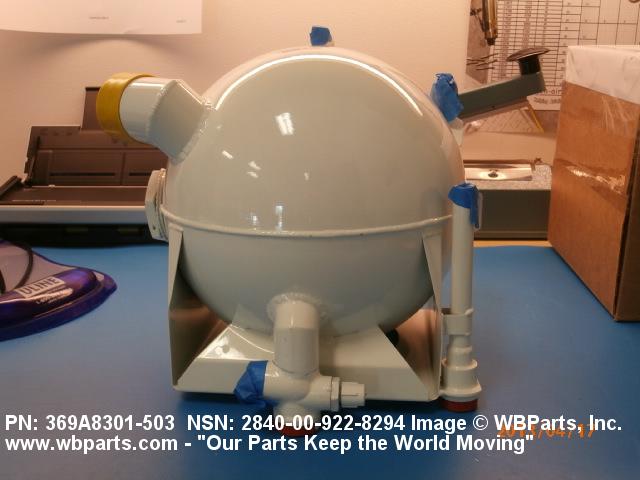

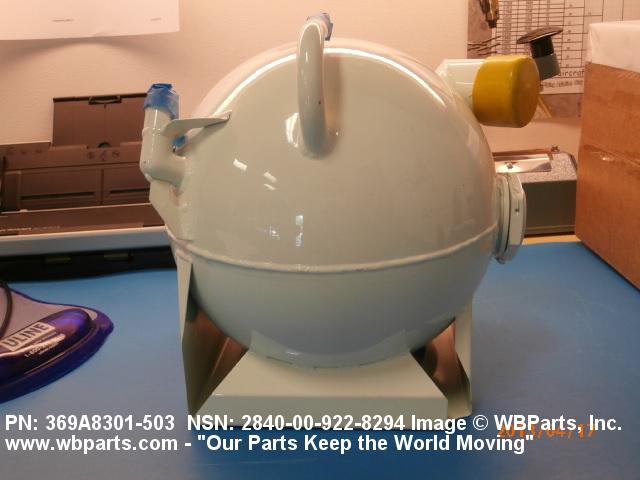

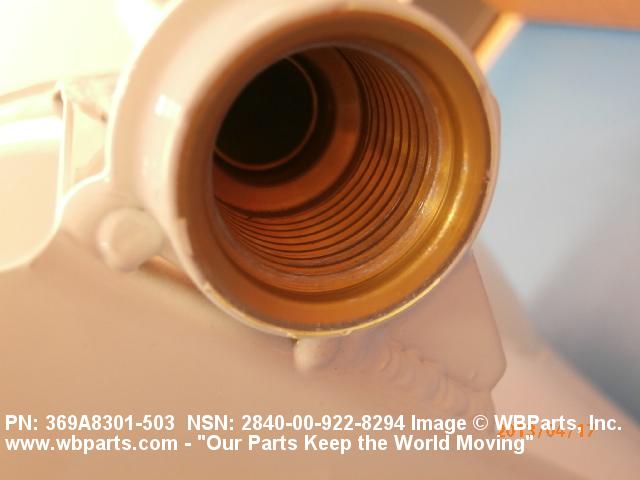

Drawings & Photos | NSN 2840-00-922-8294
Demand History | NSN 2840-00-922-8294
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2840-00-922-8294 | 2020-04-112 | 3 | US |
| 2840-00-922-8294 | 2016-03-90 | 4 | MANUAL |
| 369A8301-507 | 2016-03-90 | 4 | KR |
| 2840-00-922-8294 | 2013-03-74 | 1 | United States |
| 369A8301507 | 2013-02-32 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2840-00-922-8294
Related Products | NSN 2840-00-922-8294
Technical Data | NSN 2840-00-922-8294
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/11,COND T4 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| ENGINE SECTION LOCATION | TURBINE |

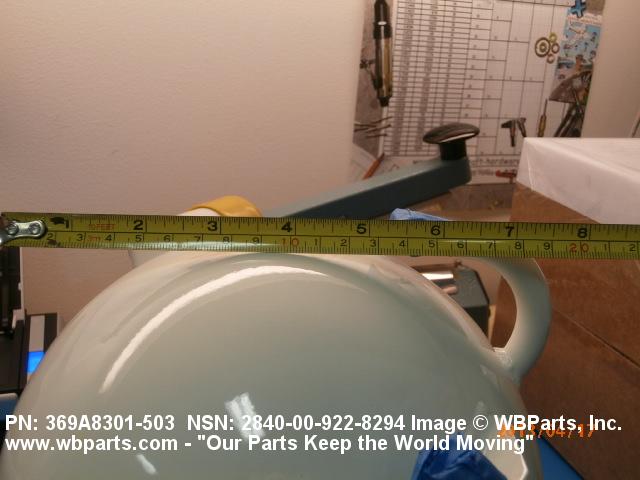

| DIAMETER | 8.160 INCHES NOMINAL |
| FEATURES PROVIDED | MOUNTING BRACKET |
| SPECIAL FEATURES | P/O OH-6 HELICOPTER |
Restrictions/Controls & Freight Information | NSN 2840-00-922-8294
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 181160 | TANKS FUEL AIRCRAFT ALUM |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2840-00-922-8294
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
