NSN 2840-00-883-5968 674941, 00-883-5968, 008835968
Product Details | AIRCRAFT GAS TURBINE ENGINE COMPRESSOR BLADE LOCK

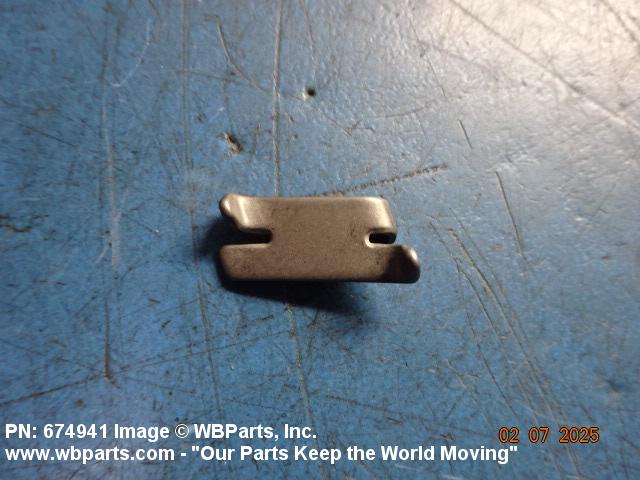

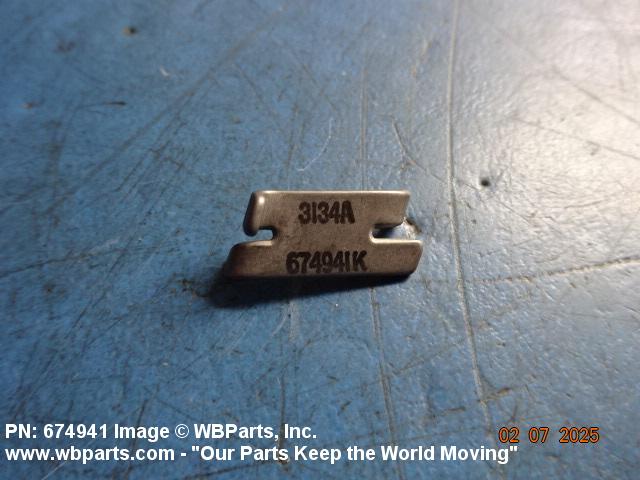

2840-00-883-5968 An item used to maintain the position of a BLADE, COMPRESSOR, AIRCRAFT GAS TURBINE ENGINE in the proper place on a DISK, COMPRESSOR, AIRCRAFT GAS TURBINE ENGINE. This item eliminates axial movement of the blade.
Part Alternates: 674941, 2840-00-883-5968, 00-883-5968, 2840008835968, 008835968
Engines, Turbines, and Components | Gas Turbines and Jet Engines, Aircraft, Prime Moving; and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 05 MAY 1972 | 00-883-5968 | 50454 ( LOCK, COMPRESSOR BLADE, AIRCRAFT GAS TURBINE ENGINE ) |
Demand History | NSN 2840-00-883-5968
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2840-00-883-5968 | 2015-04-92 | 2711 | DIBBS |
| 2840-00-883-5968 | 2014-12-337 | 1 | DIBBS-RFPs |
| 2840-00-883-5968 | 2014-11-311 | 500 | us |
| 2840-00-883-5968 | 2014-11-308 | 444 | DIBBS |
| 2840-00-883-5968 | 2014-08-215 | 1410 | DIBBS |
| 2840-00-883-5968 | 2014-07-202 | 270 | DIBBS |
| 2840-00-883-5968 | 2014-04-113 | 4975 | DIBBS |
| 2840-00-883-5968 | 2014-04-105 | 80 | Turkey |
| 674941 | 2014-03-90 | 600 | US |
| 674941 | 2014-01-30 | 425 | Turkey |
| 2840-00-883-5968 | 2014-01-28 | 170 | MANUAL |
| 674941 | 2014-01-28 | 170 | Turkey |
| 2840-00-883-5968 | 2014-01-02 | 1 | DIBBS-RFPs |
| 2840-00-883-5968 | 2013-10-303 | 1000 | US |
| 2840-00-883-5968 | 2013-10-276 | 30510 | DIBBS |
| 2840-00-883-5968 | 2013-05-133 | 15500 | US |
| 2840-00-883-5968 | 2013-04-108 | 30510 | DIBBS |
| 2840-00-883-5968 | 2013-03-72 | 27336 | DIBBS |
| 2840-00-883-5968 | 2012-07-199 | 15322 | DIBBS |
| 2840-00-883-5968 | 2012-07-187 | 15322 | DIBBS |
| 2840-00-883-5968 | 2012-06-163 | 12014 | DIBBS |
| 2840-00-883-5968 | 2006-05-139 | 3594 | DIBBS |
Cross Reference | NSN 2840-00-883-5968
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 674941 | 06959 | FLANAGAN BROTHERS, INC. DBA FLANAGAN INDUSTRIES |
| 674941 | 1U666 | DOVER TOOL OF CONNECTICUT LLC |
| 674941 | 2V116 | DEMUSZ MFG. CO., INC. |
| 674941 | 31340 | THE BIRKEN MANUFACTURING COMPANY |
| 674941 | 33617 | ELECTRO-METHODS INC |
| 674941 | 51992 | UNION MACHINE COMPANY OF LYNN, INC. |
| 674941 | 52661 | UNITED TECHNOLOGIES CORPORATION DBA PRATT & WHITNEY |
| 674941 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2840-00-883-5968
Related Products | NSN 2840-00-883-5968
Technical Data | NSN 2840-00-883-5968
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | PWA1038 ASSN STD SINGLE MATERIAL RESPONSE |
| STAGE NUMBER | 14 |

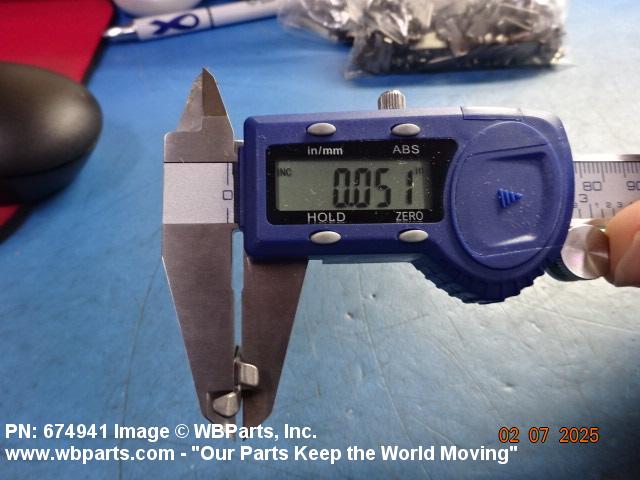

| MATERIAL THICKNESS | 0.046 INCHES MINIMUM AND 0.051 INCHES MAXIMUM |

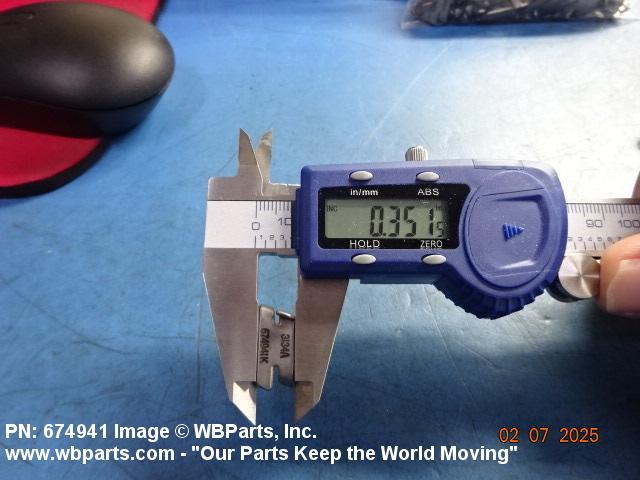

| OVERALL WIDTH | 0.342 INCHES MINIMUM AND 0.349 INCHES MAXIMUM |

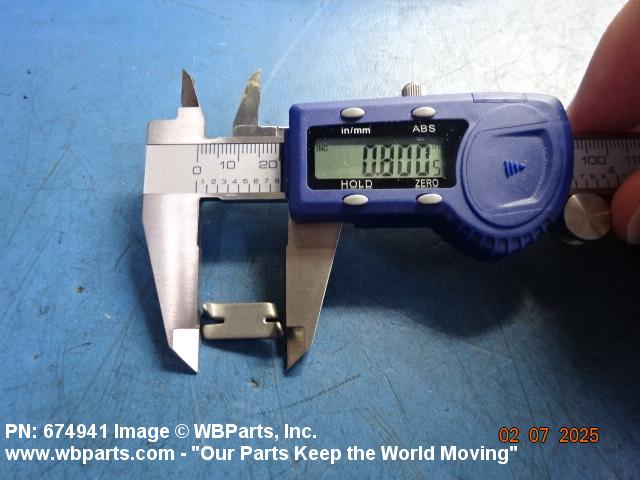

| OVERALL LENGTH | 0.810 INCHES MINIMUM AND 0.820 INCHES MAXIMUM |
| REFERENCE DATA AND LITERATURE | 2J-J57-14 |
| SPECIAL FEATURES | GOES ON THE REAR-ROTOR COMPRESSOR |
| CRITICALITY CODE JUSTIFICATION | AGAV |
| III END ITEM IDENTIFICATION | J57 ACFT ENGINE |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | 674941 |
Restrictions/Controls & Freight Information | NSN 2840-00-883-5968
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2840-00-883-5968
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | RU | SX:PRATT & WHITNEY JET ENGINES & COMPONENTS, J-57 |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
