NSN 2815-01-163-7190 14050657, 14050658, 23500059
Product Details | ENGINE POPPET VALVE
2815-01-163-7190 A mushroom or tulip-shaped item having a circular head with a conical face and an extended stem used to regulate the flow of incoming fuel-air mixture or air into the combustion chamber or exhaust gases from the combustion chamber of a reciprocating internal combustion engine.20328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: 14050657, 14050658, 23500059, 2815PL0873777, 5740194, 2815-01-163-7190, 01-163-7190, 2815011637190, 011637190
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 06 OCT 1983 | 01-163-7190 | 15884 ( VALVE, POPPET, ENGINE ) |
Drawings & Photos | NSN 2815-01-163-7190
Demand History | NSN 2815-01-163-7190
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2815-01-163-7190 | 2021-12-356 | 50 | MANUAL |
| 2815-01-163-7190 | 2018-12-361 | 5982 | DIBBS |
| 2815-01-163-7190 | 2018-06-163 | 4603 | DIBBS |
| 2815-01-163-7190 | 2018-05-151 | 4603 | DIBBS |
| 2815-01-163-7190 | 2018-04-120 | 570 | DIBBS |
| 2815-01-163-7190 | 2018-04-109 | 570 | DIBBS |
| 2815-01-163-7190 | 2018-02-46 | 196 | DIBBS |
| 2815-01-163-7190 | 2017-12-344 | 671 | DIBBS |
| 2815-01-163-7190 | 2017-11-334 | 60 | DIBBS |
| 2815-01-163-7190 | 2017-11-327 | 37 | DIBBS |
| 2815-01-163-7190 | 2015-08-223 | 49 | DIBBS |
| 2815-01-163-7190 | 2015-01-21 | 40 | DIBBS |
| 2815-01-163-7190 | 2014-12-337 | 83 | DIBBS |
| 2815-01-163-7190 | 2014-04-107 | 4 | DIBBS |
| 2815-01-163-7190 | 2014-04-105 | 40 | DIBBS |
| 2815-01-163-7190 | 2014-03-86 | 4 | DIBBS |
| 2815-01-163-7190 | 2014-02-41 | 4 | DIBBS |
| 2815-01-163-7190 | 2014-01-30 | 80 | DIBBS |
| 2815-01-163-7190 | 2011-05-138 | 32 | MANUAL |
| 5740194 | 2011-05-138 | 32 | United States |
| 2815-01-163-7190 | 2010-07-204 | 651 | DIBBS |
Cross Reference | NSN 2815-01-163-7190
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14050657 | 11862 | GENERAL MOTORS CORP CHEVROLET MOTOR DIV |
| 14050658 | 11862 | GENERAL MOTORS CORP CHEVROLET MOTOR DIV |
| 14050658 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 23500059 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 2815PL0873777 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| 5740194 | 34623 | AM GENERAL, LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2815-01-163-7190
Related Products | NSN 2815-01-163-7190
Technical Data | NSN 2815-01-163-7190
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL, CORROSION RESISTING OVERALL |
| METALLIC HARDNESS RATING AND LOCATION | 42.0 ROCKWELL C MAXIMUM HEAD 42.0 ROCKWELL C MAXIMUM STEM 49.0 ROCKWELL C MINIMUM STEM |
| HEAD STYLE | 5 FLAT |
| HEAD HEIGHT | 4.70 MILLIMETERS NOMINAL |
| OUTSIDE DIAMETER | 47.57 MILLIMETERS NOMINAL |
| NECK RADIUS | 15.00 MILLIMETERS NOMINAL |
| SEAT ANGLE IN DEG | 45.0 |

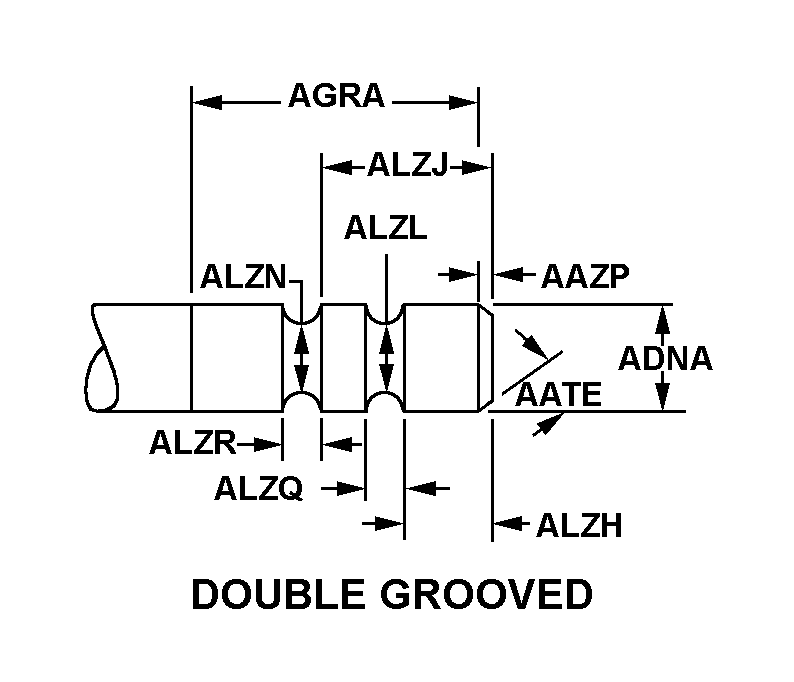

| STEM STYLE | 18 DOUBLE GROOVED |
| CHAMFER LENGTH | 1.00 MILLIMETERS NOMINAL |
| MINOR OUTSIDE DIAMETER | 8.67 MILLIMETERS NOMINAL |
| MINOR DIAMETER LENGTH | 18.44 MILLIMETERS MAXIMUM |
| STEM LENGTH | 125.23 MILLIMETERS NOMINAL |
| STEM DIAMETER | 8.75 MILLIMETERS NOMINAL |
| DISTANCE FROM FIRST GROOVE TO STEM END | 7.00 MILLIMETERS MAXIMUM |
| DISTANCE FROM SECOND GROOVE TO STEM END | 13.35 MILLIMETERS MAXIMUM |
| FIRST GROOVE DIAMETER | 7.60 MILLIMETERS NOMINAL |
| SECOND GROOVE DIAMETER | 7.60 MILLIMETERS NOMINAL |
| FIRST GROOVE WIDTH | 2.67 MILLIMETERS MAXIMUM |
| SECOND GROOVE WIDTH | 2.67 MILLIMETERS MAXIMUM |
| CHAMFER ANGLE IN DEG | 20.0 |
| CARBON RELIEF GROOVE | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 2815-01-163-7190
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2815-01-163-7190
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z EA : Each |
