Product Details | DIRT AND LIQUID DEFLECTOR

2815-01-104-1532 An item so shaped as to deflect one or more of the following: dust, dirt, grease, oil, or liquid into a desired direction or away from a particular area. Can be attached to a stationary or with a revolving part. May or may not be a mechanical device.21516150056Helicopter Rotor Blades, Drive Mechanisms and Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment16800049Miscellaneous Aircraft Accessories and Components25200039Vehicular Power Transmission Components25300060Vehicular Brake, Steering, Axle, Wheel, and Track Components25400035Vehicular Furniture and Accessories28050063Gasoline Reciprocating Engines, Except Aircraft; and Components28150029Diesel Engines and Components28250029Steam Turbines and Components28350096Gas Turbines and Jet Engines; Non-Aircraft Prime Mover, Aircraft Non-Prime Mover, and Components29950042Miscellaneous Engine Accessories, Aircraft43100028Compressors and Vacuum Pumps43200020Power and Hand Pumps49300041Lubrication and Fuel Dispensing Equipment53400020Hardware, Commercial

Part Alternates: K500EN0139, K-500-EN-0139, 7CA167, 9L5968, 9N5592, 2815-01-104-1532, 01-104-1532, 2815011041532, 011041532

Engines, Turbines, and Components | Diesel Engines and Components

Supply Group (FSG) NSN Assign. NIIN
28 28 NOV 1980 01-104-1532

Drawings & Photos | NSN 2815-01-104-1532


Cross Reference | NSN 2815-01-104-1532

Part Number Cage Code Manufacturer
7CA167 45152 OSHKOSH CORPORATION
7CA167 75Q65 OSHKOSH DEFENSE, LLC
9L5968 11083 CATERPILLAR INC. DBA CATERPILLAR
9N5592 11083 CATERPILLAR INC. DBA CATERPILLAR
K-500-EN-0139 59556 KOVATCH CORP.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 2815-01-104-1532

Technical Data | NSN 2815-01-104-1532

Characteristic Specifications

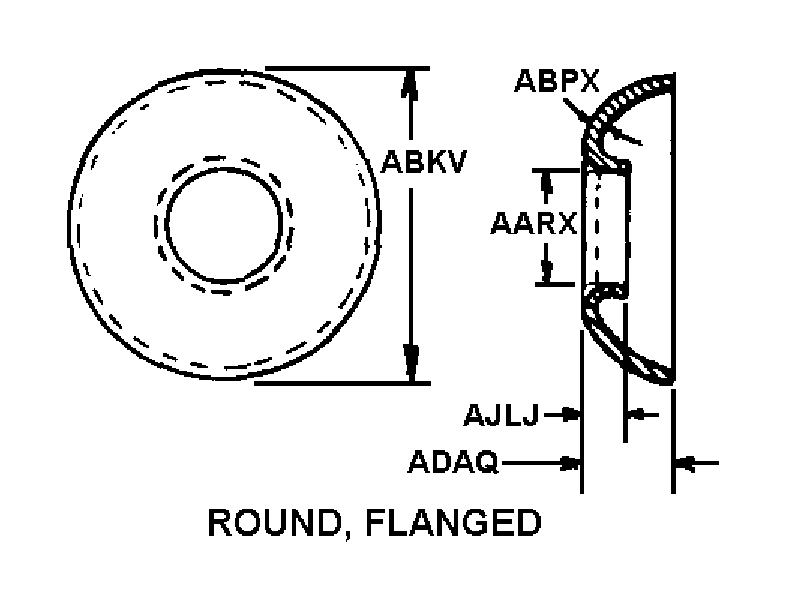

STYLE DESIGNATOR 11 ROUND, FLANGED
INSIDE DIAMETER 2.930 INCHES NOMINAL
OUTSIDE DIAMETER 5.000 INCHES NOMINAL
MATERIAL THICKNESS 0.072 INCHES NOMINAL
BODY LENGTH 0.560 INCHES NOMINAL
HUB LENGTH 0.380 INCHES NOMINAL
MATERIAL STEEL

Restrictions/Controls & Freight Information | NSN 2815-01-104-1532

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 019490 AUTO PARTS: SHIELDS,BRAKE DUST
Less than car load rating
Less than truck load rating B 300.0
Water commodity Code 585 unknown
Originating Activity Code AX Defense Supply Center Columbus
Columbus, OH 43216-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
