NSN 2815-01-085-7811 A24487, 01-085-7811, 010857811
Product Details | PISTON PIN
2815-01-085-7811 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.20528050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps
Part Alternates: A24487, 2815-01-085-7811, 01-085-7811, 2815010857811, 010857811
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 15 NOV 1979 | 01-085-7811 | 16414 ( PIN, PISTON ) |
Drawings & Photos | NSN 2815-01-085-7811
Cross Reference | NSN 2815-01-085-7811
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A24487 | 10988 | CNH INDUSTRIAL AMERICA LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2815-01-085-7811
Technical Data | NSN 2815-01-085-7811
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, FED STD 66, AISI/SAE 1022 |
| METALLIC HARDNESS RATING | 57.0 MINIMUM ROCKWELL C AND 62.0 MAXIMUM ROCKWELL C |
| CASEHARDENING INDICATOR | CASEHARDENED |

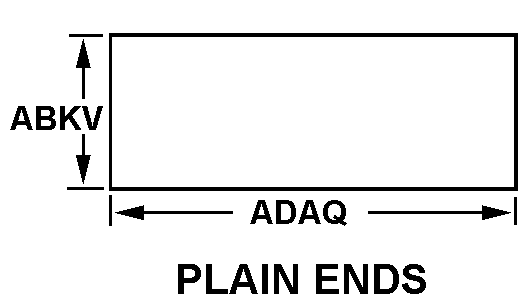

| BODY STYLE | 1A PLAIN ENDS |
| OUTSIDE DIAMETER | 1.49940 INCHES MINIMUM AND 1.50000 INCHES MAXIMUM |
| BODY LENGTH | 3.4850 INCHES MINIMUM AND 3.4900 INCHES MAXIMUM |
| BORE STYLE | 7 STRAIGHT-THRU BORE |
| BORE DIAMETER | 0.9630 INCHES MINIMUM AND 0.9680 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 2815-01-085-7811
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
