NSN 2815-00-678-3201 8725176, 00-678-3201, 006783201
Product Details | VALVE STEM GUIDE
2815-00-678-3201 A replaceable cylindrical item designed to provide wear surface and maintain alignment of a reciprocating valve stem and the like, it may have a flange(s) and/or grooves.20728050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components43100028Compressors and Vacuum Pumps45100033Plumbing Fixtures and Accessories48100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 8725176, 2815-00-678-3201, 00-678-3201, 2815006783201, 006783201
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1963 | 00-678-3201 | 32562 ( GUIDE, VALVE STEM ) |

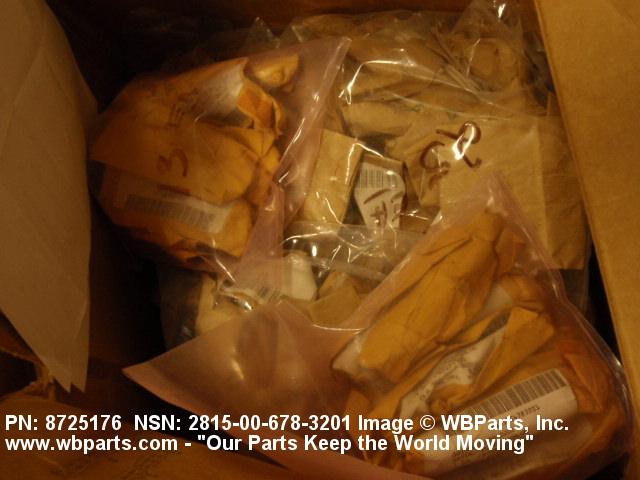

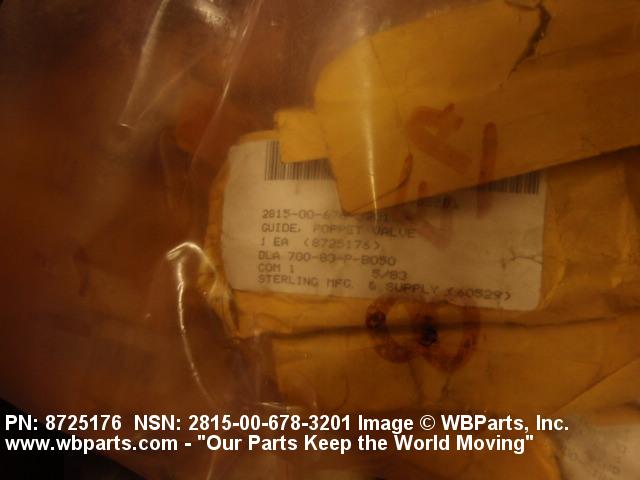

Drawings & Photos | NSN 2815-00-678-3201
Demand History | NSN 2815-00-678-3201
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8725176 | 2024-02-32 | 109 | DIBBS |
| 8725176 | 2023-12-341 | 47 | DIBBS |
| 8725176 | 2023-11-334 | 2 | DIBBS |
| 8725176 | 2023-11-320 | 60 | DIBBS |
| 8725176 | 2023-11-311 | 60 | DIBBS |
| 2815-00-678-3201 | 2017-02-40 | 96 | US |
| 8725176 | 2017-01-25 | 96 | United States |
| 2815-00-678-3201 | 2014-01-29 | 210 | DIBBS |
| 2815-00-678-3201 | 2013-04-108 | 20 | MANUAL |
| 2815-00-678-3201 | 2009-10-299 | 500 | United States |
| 2815-00-678-3201 | 2009-10-294 | 414 | United States |
| 2815-00-678-3201 | 2009-07-183 | 500 | DIBBS |
| 2815-00-678-3201 | 2009-06-154 | 414 | DIBBS |
| 2815-00-678-3201 | 2009-02-35 | 900 | DIBBS |
| 2815-00-678-3201 | 2008-12-340 | 1866 | DIBBS |
| 2815-00-678-3201 | 2008-05-126 | 444 | DIBBS |
| 2815-00-678-3201 | 2008-04-100 | 1093 | DIBBS |
| 2815-00-678-3201 | 2008-04-100 | 1122 | DIBBS |
Cross Reference | NSN 2815-00-678-3201
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 2815-00-678-3201
Related Products | NSN 2815-00-678-3201
Technical Data | NSN 2815-00-678-3201
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM BRONZE,QQ-B-679,COMP 2 |
| METALLIC HARDNESS RATING | 85.0 NOMINAL ROCKWELL B |

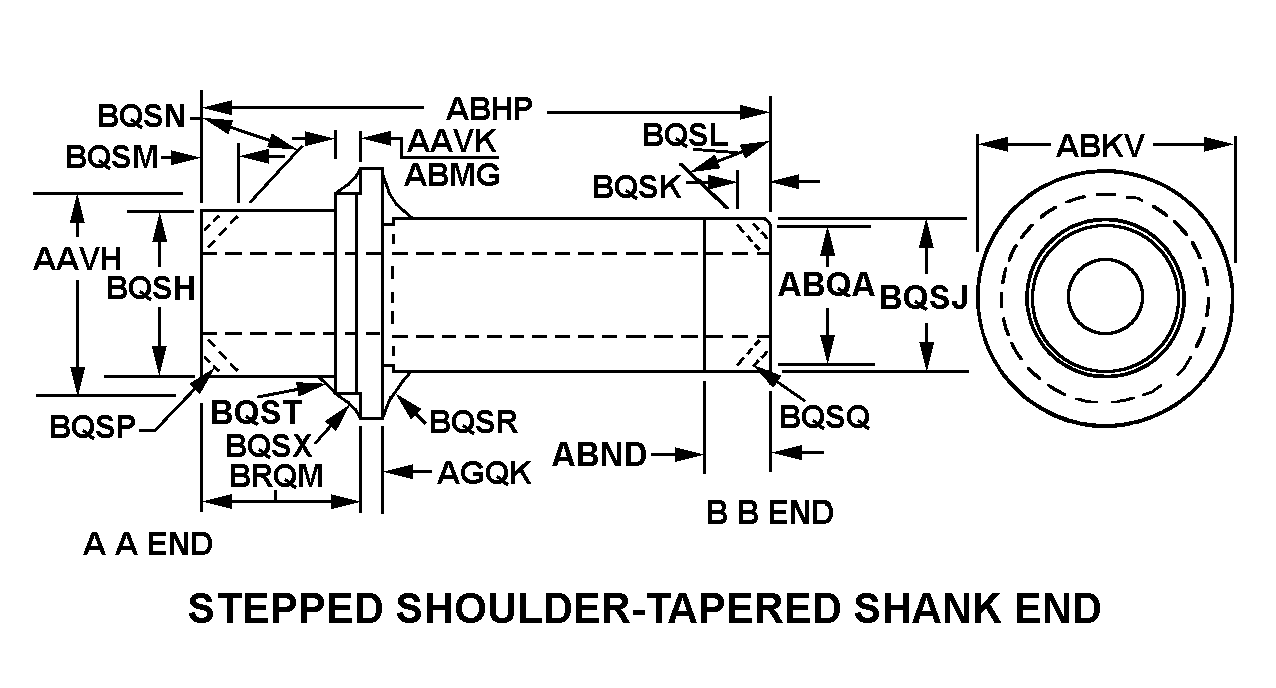

| STYLE DESIGNATOR | H13 STEPPED SHOULDER-TAPERED SHANK END |
| SHOULDER DIAMETER | 0.781 INCHES NOMINAL |
| SHOULDER LENGTH | 0.184 INCHES NOMINAL |
| OVERALL LENGTH | 3.440 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.120 INCHES NOMINAL |
| TAPER LENGTH | 0.125 INCHES NOMINAL |
| TAPER MINOR DIAMETER | 0.690 INCHES NOMINAL |
| MAJOR DIAMETER LENGTH | 0.128 INCHES NOMINAL |
| AA END DIAMETER | 0.746 INCHES NOMINAL |
| BB END SHANK DIAMETER | 0.699 INCHES NOMINAL |
| BB END CHAMFER LENGTH | 0.030 INCHES NOMINAL |
| BB END CHAMFER ANGLE IN DEG | 45.0 |
| AA END CHAMFER LENGTH | 0.030 INCHES NOMINAL |
| AA END CHAMFER ANGLE IN DEG | 45.0 |
| SHOULDER FIRST FILLET RADIUS | 0.030 INCHES NOMINAL |
| SHOULDER SECOND FILLET RADIUS | 0.030 INCHES NOMINAL |
| FILLET STEP RADIUS | 0.030 INCHES NOMINAL |
| LENGTH FROM AA END TO LARGEST DIAMETER FACE | 1.314 INCHES NOMINAL |
| BORE DIAMETER | 0.4840 INCHES NOMINAL |
| BORE COUNTERSINK | NOT INCLUDED |
| BORE COUNTERBORE | NOT INCLUDED |
| SPECIAL FEATURES | SPIRAL GROOVE,0.006 IN. RADIUS GROOVES,0.020 IN. DEEP,0.011 IN. W |
Restrictions/Controls & Freight Information | NSN 2815-00-678-3201
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2815-00-678-3201
Army
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
