NSN 2815-00-482-8206 5102318, 5194447, 5194450
Product Details | CYLINDER SLEEVE
2815-00-482-8206 A tubular metal item designed primarily as a replaceable wear surface within the cylinder bore of a piston type internal combustion engine, compressor, or reciprocating pump.20716500058Aircraft Hydraulic, Vacuum, and De-icing System Components28050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components41300045Refrigeration and Air Conditioning Components43100028Compressors and Vacuum Pumps43200020Power and Hand Pumps
Part Alternates: 5102318, 5194447, 5194450, 2815-00-482-8206, 00-482-8206, 2815004828206, 004828206
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 25 JAN 1971 | 00-482-8206 | 16756 ( CYLINDER SLEEVE ) |

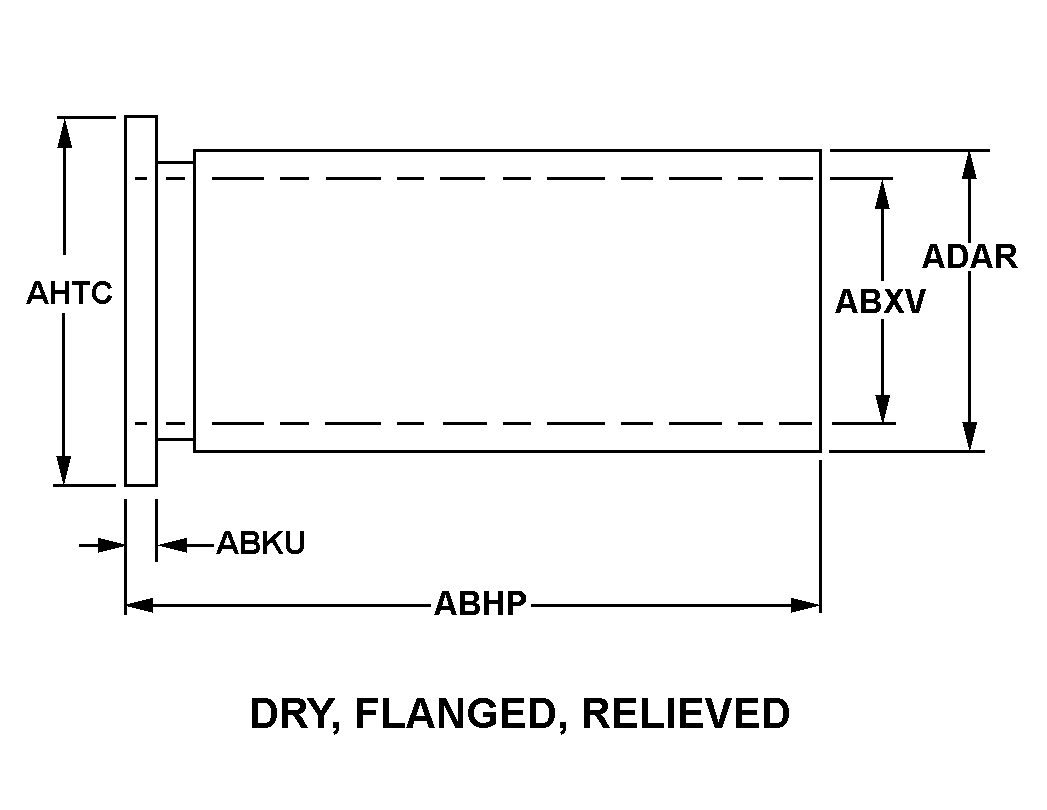

Drawings & Photos | NSN 2815-00-482-8206
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2815-00-482-8206
Technical Data | NSN 2815-00-482-8206
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| METALLIC HARDNESS RATING | 45.0 NOMINAL ROCKWELL C |
| DESIGN TYPE | DRY |
| STYLE DESIGNATOR | A7 DRY, FLANGED, RELIEVED |
| OVERALL LENGTH | 11.125 INCHES NOMINAL |
| FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| TAPER LENGTH | 0.077 INCHES NOMINAL |
| UNDERCUT DIAMETER | 4.606 INCHES MINIMUM AND 4.616 INCHES MAXIMUM |
| BORE DIAMETER | 4.250 INCHES NOMINAL |
| BODY LENGTH | 1.250 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 4.644 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 4.766 INCHES MINIMUM AND 4.776 INCHES MAXIMUM |
| LARGEST OUTSIDE DIAMETER UNDER FLANGE | 4.603 INCHES NOMINAL |
| LARGEST OUTSIDE DIAMETER WIDTH UNDER FLANGE | 0.125 INCHES NOMINAL |
| VALVE RECESS | NOT INCLUDED |
| TOP INSIDE CHAMFER | NOT INCLUDED |
| BOTTOM INSIDE CHAMFER | NOT INCLUDED |
| TOP INTAKE PORT | NOT INCLUDED |
| INTAKE HOLE | INCLUDED |
| ROW QUANTITY | 2 |
| HOLE QUANTITY PER ROW | 18 |
| HOLE DIAMETER | 0.484 INCHES NOMINAL |
| DISTANCE FROM TOP TO CENTER OF FIRST ROW | 4.060 INCHES NOMINAL |
| HOLE CENTER TO CENTER DISTANCE BETWEEN ROWS | ANY ACCEPTABLE |
