Product Details | VALVE STEM GUIDE
2815-00-450-9331 A replaceable cylindrical item designed to provide wear surface and maintain alignment of a reciprocating valve stem and the like, it may have a flange(s) and/or grooves.20728050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components43100028Compressors and Vacuum Pumps45100033Plumbing Fixtures and Accessories48100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 8335224, 2815-00-450-9331, 00-450-9331, 2815004509331, 004509331
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 19 DEC 1969 | 00-450-9331 | 32562 ( GUIDE, VALVE STEM ) |
Drawings & Photos | NSN 2815-00-450-9331
Demand History | NSN 2815-00-450-9331
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8335224 | 2011-07-200 | 200 | US |
| 2815-00-450-9331 | 2007-09-263 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2815-00-450-9331
Technical Data | NSN 2815-00-450-9331
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| METALLIC HARDNESS RATING | NOT RATED |

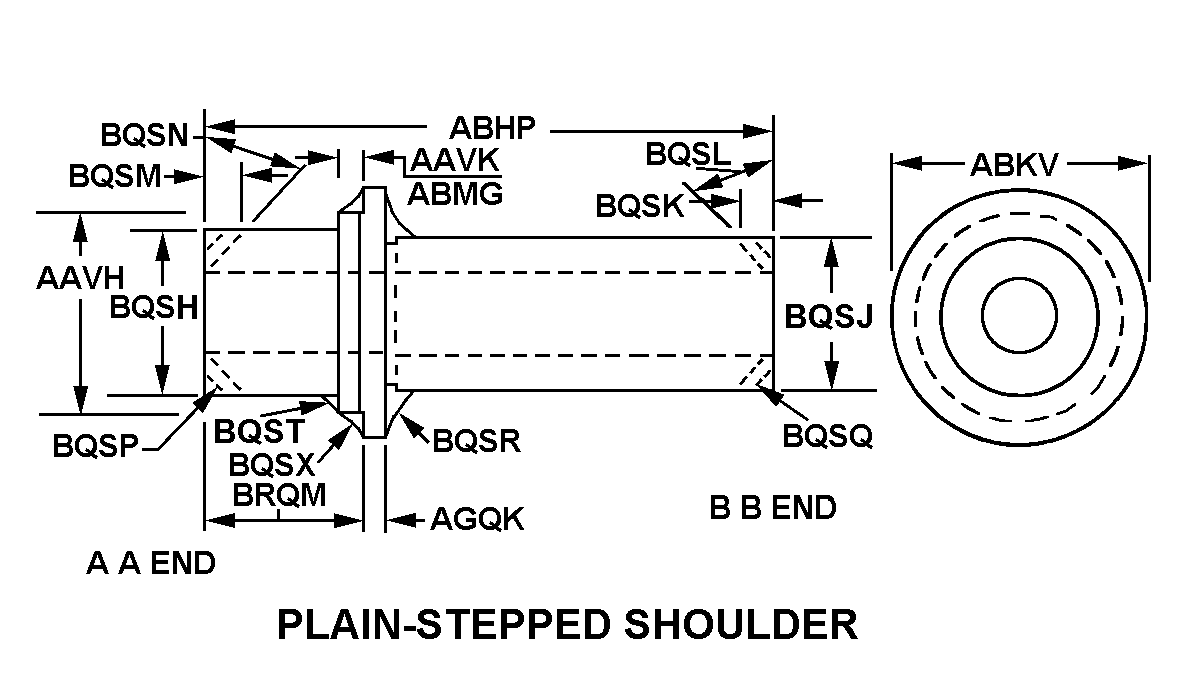

| STYLE DESIGNATOR | H12 PLAIN-STEPPED SHOULDER |
| SHOULDER DIAMETER | 1.182 INCHES NOMINAL |
| SHOULDER LENGTH | 0.312 INCHES NOMINAL |
| OVERALL LENGTH | 6.006 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.750 INCHES NOMINAL |
| MAJOR DIAMETER LENGTH | 0.344 INCHES NOMINAL |
| AA END DIAMETER | 0.625 INCHES NOMINAL |
| BB END SHANK DIAMETER | 1.000 INCHES NOMINAL |
| AA END RADIUS | 0.266 INCHES NOMINAL |
| BB END RADIUS | ANY ACCEPTABLE |
| SHOULDER FIRST FILLET RADIUS | ANY ACCEPTABLE |
| SHOULDER SECOND FILLET RADIUS | 0.281 INCHES NOMINAL |
| FILLET STEP RADIUS | ANY ACCEPTABLE |
| LENGTH FROM AA END TO LARGEST DIAMETER FACE | 2.000 INCHES NOMINAL |
| BORE DIAMETER | 0.5000 INCHES NOMINAL |
| BORE COUNTERSINK | NOT INCLUDED |
| BORE COUNTERBORE | NOT INCLUDED |
| SPECIAL FEATURES | BB END THD 3-5/8 IN. LG,1 IN.-12THD |
