NSN 2815-00-393-5578 5288, 00-393-5578, 003935578
Product Details | ENGINE POPPET VALVE
2815-00-393-5578 A mushroom or tulip-shaped item having a circular head with a conical face and an extended stem used to regulate the flow of incoming fuel-air mixture or air into the combustion chamber or exhaust gases from the combustion chamber of a reciprocating internal combustion engine.20328050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components
Part Alternates: 5288, 2815-00-393-5578, 00-393-5578, 2815003935578, 003935578
Engines, Turbines, and Components | Diesel Engines and Components
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | 01 JAN 1963 | 00-393-5578 | 15884 ( VALVE, POPPET, ENGINE ) |
Drawings & Photos | NSN 2815-00-393-5578
Cross Reference | NSN 2815-00-393-5578
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5288 | 81601 | NORFOLK NAVAL SHIPYARD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 2815-00-393-5578
Technical Data | NSN 2815-00-393-5578
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL OVERALL |
| METALLIC HARDNESS RATING AND LOCATION | NOT RATED |
| HEAD STYLE | 5 FLAT |
| HEAD HEIGHT | 0.1562 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.5000 INCHES NOMINAL |
| NECK RADIUS | 0.3125 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 45.0 |

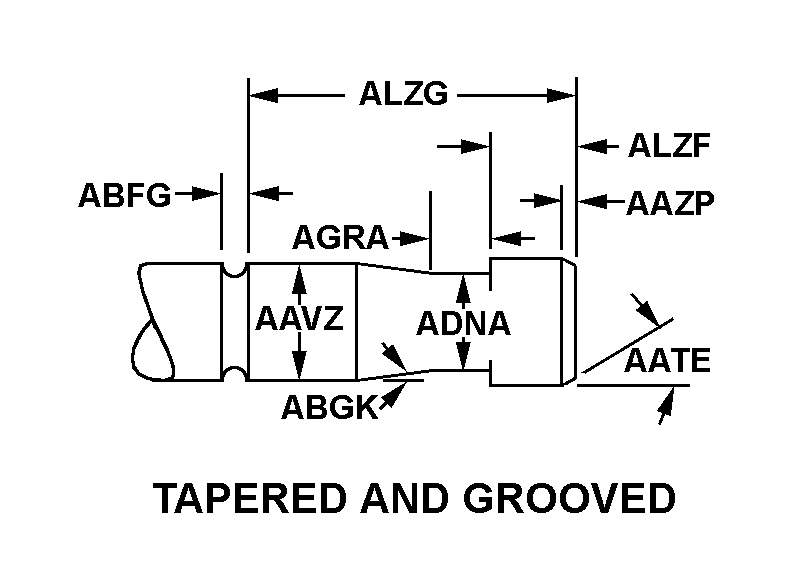

| STEM STYLE | 9 TAPERED AND GROOVED |
| GROOVE DIAMETER | 0.3437 INCHES NOMINAL |
| CHAMFER LENGTH | 0.0312 INCHES NOMINAL |
| GROOVE WIDTH | 0.0312 INCHES NOMINAL |
| MINOR OUTSIDE DIAMETER | 0.1719 INCHES NOMINAL |
| MINOR DIAMETER LENGTH | 0.3125 INCHES NOMINAL |
| STEM LENGTH | 6.6875 INCHES NOMINAL |
| STEM DIAMETER | 0.3750 INCHES NOMINAL |
| DISTANCE FROM MINOR DIAMETER TO STEM END | 0.2500 INCHES NOMINAL |
| DISTANCE FROM GROOVE TO STEM END | 0.8125 INCHES NOMINAL |
| CHAMFER ANGLE IN DEG | 45.0 |
| TAPER ANGLE IN DEG | 10.0 |
| CARBON RELIEF GROOVE | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 2815-00-393-5578
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 2815-00-393-5578
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
